Product Details:
|
| Product Name: | Duct Liner Steel Cupped Head Weld Pins | Brand: | HUIHAO CUSTOM |
|---|---|---|---|
| Material: | Carbon Steel | Base Size: | 25mm Or 30mm Is Standard |
| Surface: | Copper Plated, Galvanized | Nail Diameter: | 1.8mm, 2.0mm, 2.7mm, 3.0mm, 3.4mm |
| Samples: | Support | Nail Length: | As Your Requirement |
| Highlight: | Steel Cupped Head Weld Pins,Duct Liner Cup Head Weld Pins,Duct Liner Welding Insulation Pins |
||
Description Of The Duct Liner Steel Cupped Head Weld Pins:
Duct Liner Steel Cupped Head Weld Pins are welded through the insulation, allowing the
fabrication to be done in one easy step, and the head of the Cupped Head Weld Pins is
attached to the nail, so there is no need to add a washer.
| Item | Duct Liner Steel Cupped Head Weld Pins | |||
| Brand | Huihao Custom | |||
| Material | Mild steel | |||
| Plating | Zinc coating is standard for nails | Zinc coating is standard for the head | ||
| Copper coating is standard for nails | ||||
| Bevel | Head edge is beveled to prevent cutting of insulation material | |||
| Head with paper | Available, for welding through aluminum foil faced insulation materials | |||
| Nail with tubes | Available, for welding through tin foil faced insulation materials | |||
| Head Size | 1-1/2" (38mm), 1-3/16" (30mm), 1" (25mm) | |||
| Head Thickness | 0.5mm or 0.4mm | |||
| Nail Diameter | 0.135" (3.4mm), 0.106"(2.7mm), 0.08"(2.0mm) | |||
| Nail Length | as your request | |||
|
|

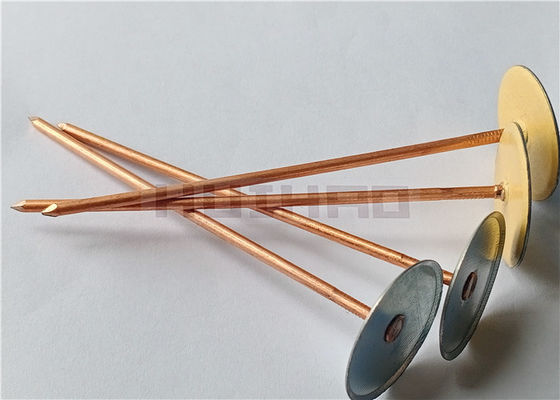

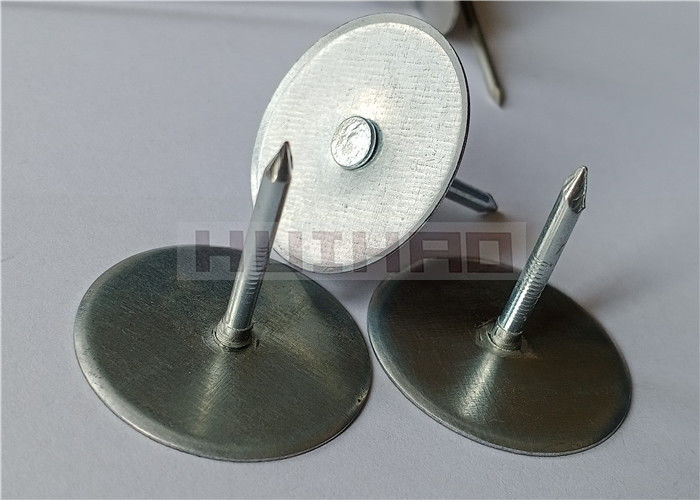

Item: Cupped Head Weld Pins Base Material: Galvanized Steel Base Size: 30mm Nail Material: Galvanized Steel Nail Diameter: 2.7mm Nail Length: 25mm
If special requirement for the size and material, it could be customized according to your requirement.
|
 |
Item: Cupped Head Weld Pins Base Material: Galvanized Steel Base Size: 30mm Nail Material: Copper Coated Mild Steel Nail Diameter: 2.7mm Nail Length: 105mm
If special requirement for the size and material, it could be customized according to your requirement. |
|

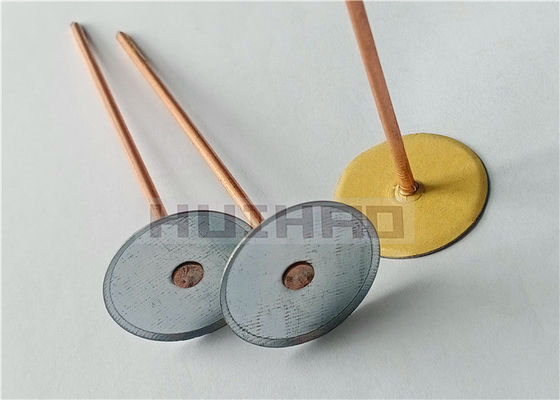

Item: Cupped Head Weld Pins With Paper Washers Base Material: Galvanized Steel Base Size: 30mm Nail Material: Copper Coated Mild Steel Material Nail Diameter: 2.7mm Nail Length: 105mm
If special requirement for the size and material, it could be customized according to your requirement. |
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm is supported.
4. Can you accept small orders?
Yes, for common size, we could accept small orders.
5. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.
