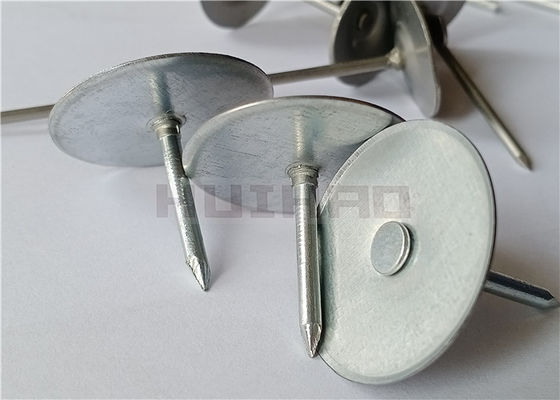

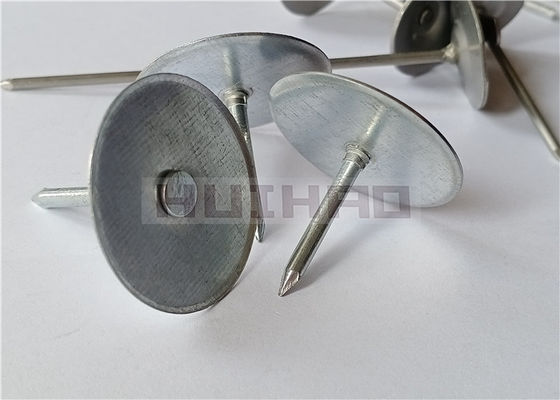

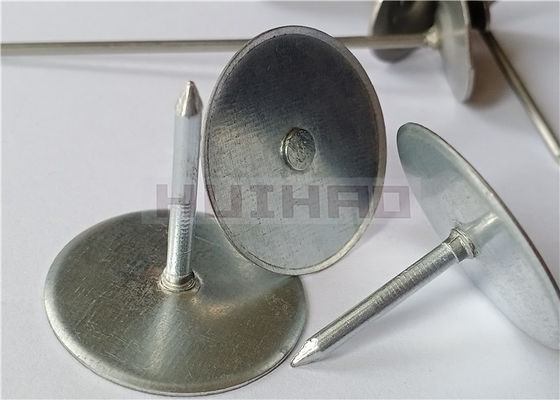

Product Details:
|
| Name: | Galvanized Steel Cupped Head Weld Pins | Brand: | HUIHAO Custom |
|---|---|---|---|
| Samples: | Support | Pin Diameter: | 2.7mm |
| Material: | Galvanized Steel | Pin Length: | 1" / 25 Mm |
| Customization: | Support | Head Size: | 25mm Or 30mm Is Standard |
| High Light: | Cupped Head Weld Pins,Galvanized Steel Cupped Head Weld Pins,Duct Liner Stud Welding Pins |
||
MATERIAL: Low Carbon Steel, material specifications or certification available.
FINISH: Mild Steel pins are galvanized/coated, washer is galvanized.
ANNEALING: All steel pins are fully annealed unless otherwise specified.
COMPATIBILITY: All pins are compatible and recommended for use with all brands of
CD stud welding equipment.
| Part No. | D | C | Length |
| CH-12 | .106 | 1-1/2" | Stnd up to 6" |
| CH-10 | .135 | 1-1/2" | Special Order |
| MC-14 | .080 | 1-3/16" | Up to 2-1/2" |
| MC-12 | .106 | 1-3/16" | Stnd up to 6" |
1. Available as Mini-Cup (MC) or Full-Size Cupped Head (CH) Style, with a beveled head.
2. Flat head available as a special order.
3. Cupped Head Pins, Cupped Head Weld Pins With Beveled Head are also available
"insulated" for welding through foil-faced materials to prevent arcing on the foil facia.
4. Longer lengths available as special order.
5. Length of pin to be used is determined by the thickness, density & composition of the
insulation being installed.
| Item | Cup Head Weld Pins For Duct Liner Stud Welding | |||
| Brand | Huihao Custom | |||
| Material | Mild steel | |||
| Plating | Zinc coating is standard for nails | Zinc coating is standard for the head | ||

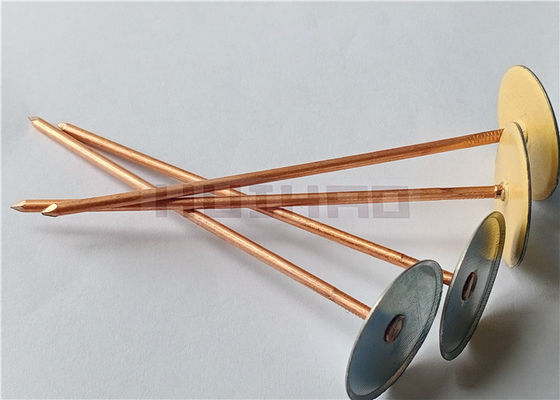

| Copper coating is standard for nails | ||||
| Bevel | Head edge is beveled to prevent cutting of insulation material | |||

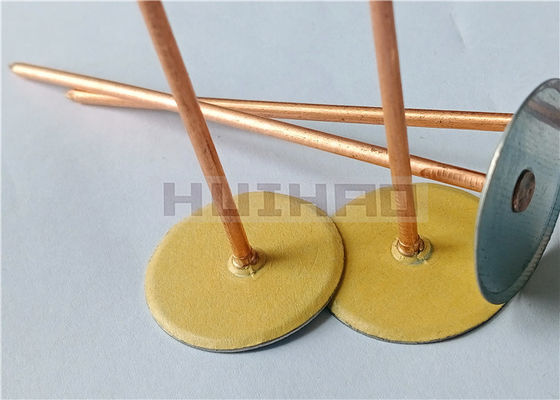

| Head with paper | Available, for welding through aluminum foil faced insulation materials | |||
| Nail with tubes | Available, for welding through tin foil faced insulation materials | |||
| Head Size | 1-1/2" (38mm), 1-3/16" (30mm), 1" (25mm) | |||
| Head Thickness | 0.5mm or 0.4mm | |||
| Nail Diameter | 0.135" (3.4mm), 0.106"(2.7mm), 0.08"(2.0mm) | |||
| Nail Length | as your request | |||
 |
||||
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm is supported.
4. Can you accept small orders?
Yes, for common size, we could accept small orders.
5. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.
6. Advantage Of Huihao Hardware.
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience, our products are in line with international standard.
