50mmx50mm Perforated Base Insulation Hanger Pins With Self Locking Washer

Quick Details of Perforated Base Insulation Hanger Pins:

Product name :perforated base insulation hanger pins,insulation pins,insulation hangers,

insulation anchor

Base material:stainless steel,galvanized steel

Base size :50mmx50mm in common ,40x40mm,35mmx35mm,24mmx24mm to be request

Pin material :stainless steel .galvanized steel ,copper coated ,aluminum

Pin diameter:2.7mm,3.0mm in common ,other to be request

Pin length :25mm-320mm

Accessories:self locking washer ,dome cap washer

• 1. It has anti-temperature sudden change, cold resistance and heat resistance;
• 2. High bearing capacity, high pressure bearing and good tensile performance;
• 3. easy to install, no special installation tools are required;
• 4. It is not easy to deform, moisture, vibration, and good thermal properties after loading.

Specification Of Perforated Base Insulation Hanger Pins:

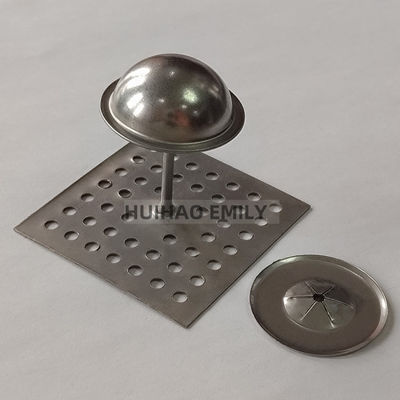

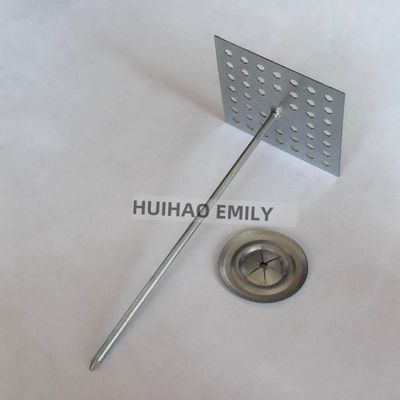

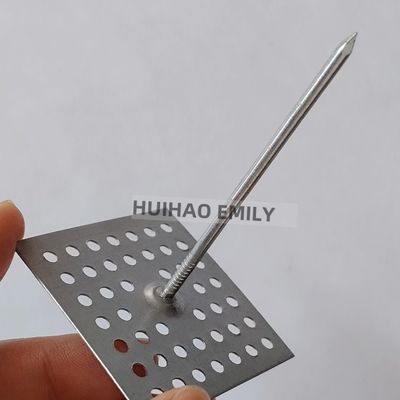

Pic of the Perforated Base Insulation Hanger Pins:

Stainless steel Perforated base insulation pins  Base size :50mmx50mm ,40mmx40mm,35mmx35mm,24mmx24mm Base material :stainless steel 304/316/316L Pin diameter :2.7mm ,3.0mm in common ,other to be request Pin length :25-320mm Accessories : self locking washer ,dome cap washe

Galvanized steel Perforated base insulation pins Base size :50mmx50mm ,40mmx40mm,35mmx35mm,24mmx24mm Base material :Galvanized steel Pin material :galvanized steel ,copper coated ,aluminum Pin diameter :2.7mm ,3.0mm in common ,other to be request Pin length :25-320mm Accessories : self locking washer ,dome cap washer

Perforated base insulation pins with groove pin Base size :50mmx50mm ,40mmx40mm Base material :stainless steel ,galvanized steel Pin diameter :2.7mm ,3.0mm in common ,other to be request Pin length :25-320mm Accessories : self locking washer ,dome cap washer

Application of Perforated Base Insulation Hanger Pins

Perforated base Insulation hanger pins are secured with General Purpose Adhesive, specially formulated to bond to metal, masonry and other sound substrates. Surfaces must be clean and dry before adhesive is applied. Some protective coatings are not compatible with adhesives and it is recommended that the user make test bonds before proceeding with the application. An all metal fire resistant anchor that is both fast and easy to install. Suitable for fixing all types of insulation to concrete, brick, stone or block base material.Insulation fastening solutions for concrete and masonry, suitable for insulation materials such as mineral wool, EPS, XPS and fibreglass.

Accessories of Perforated Base Insulation Hanger Pins:

Round self locking washer	Square self locking washer
metal dome cap washer	PE+metal washer

Package of Perforated Base Insulation Hanger Pins

The package of Perforated base insulation pins : >> Package 1. 500 pcs/800pcs/1000 pcs per carton. 64 cartons per pallet. 2. to be your requirements. >>> Delivery Sample: DHL/EMS/UPS/TNT/EXPRESS Large Order: we recommend you by SEA ,or by AIR if in an emergency.

HUIHAO company FAQ :

Q1: Are you factory or trader ?

Yes ,we sell what we manufacture

Q2:How long is your delivery time?

Usually the ship time is within 7-15 days

Q3:What is your quote elements?

The size of product, material with surface treatment and the quantity

Q4:Can you provide samples?is it free or in charge ?

A3: Yes, we can provide sample for we have in stock ,for special sample you need pay the

mold fee ,the mold fee will return back you after confirm the mass order

Q5: How can you ensure the quality?

1.we can supply CAD drawing pic for you

2.Our company have ISO certificate

2.We have working on this product for twenty years and we have experience on it ,and we

know the point you focus on
