Product Details:
|
Name: | Lacing Anchors | Material: | SS 304 Or SS 316 Or Galvanized Steel |
---|---|---|---|
Pin Diameter: | 14Ga ,12Ga ,3.0mm | Pin Length: | 25 -300 Mm |
Hook Size: | 22 Mm ,25 Mm ,30mm | Parts: | Self Locking Washers , Lacing Hooks , Lacing Washer |
Sample: | Yes | Application: | Thermal Insulation Covers Fixing |
Highlight: | Washers Lacing Anchors,Thermal Insulation Covers Lacing Anchors,SS Lacing Anchors With Hooks |

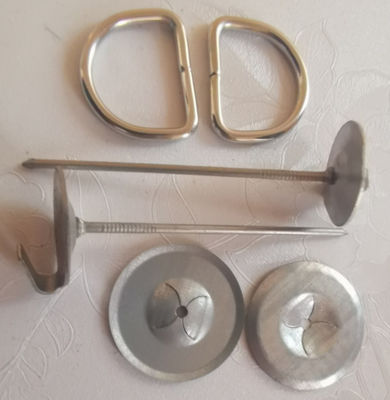

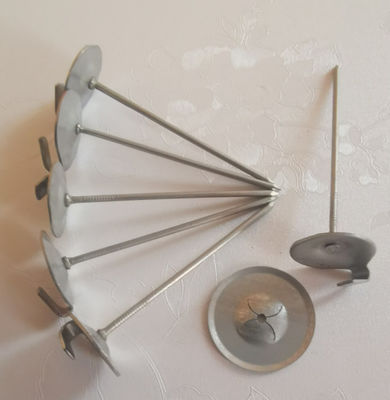

SS Lacing anchors is widely used for fixing the thermal insulation covers , It usually use lacing hangers/pins, lacing hooks , self locking washers and tie wire , etc .
The insulation material type just according the installing methods .The applicaiton area as following :
Exhaust insulation blankets
fabric expansion joints
temptec exhaust blankets
mat insulation
thermal insulation covers
cooling insulation covers
heat insulatiuon covers
Name | Lacing anchors | ||
Mateiral | Stainless steel 304,316 in common , also coculd be Galvanized steel | ||
Pin diameter | Pin length(25mm-120mm) | Pin length(120mm-200mm) | Pin length(200mm-300mm) |
14Ga /12Ga | 12Ga ,3.0mm | 3.0mm -4.0mm as request | |
Hook size | 22mm | 22mm or 25mm | 25mm or 30mm |
Washer size | 25mm /30mm/38mm in common | ||
Thickness | 1.0mm in common | ||
Application | for fixing the thermal insulaton covers . | ||
Refer | according to your request to produce the lacing anchors |
How to install the The Lacing anchors
SS Insulation Blanket Washer also could be used with stainless steel lacing rings and lacing wires to fasten the the removable insulation blankets or covers.

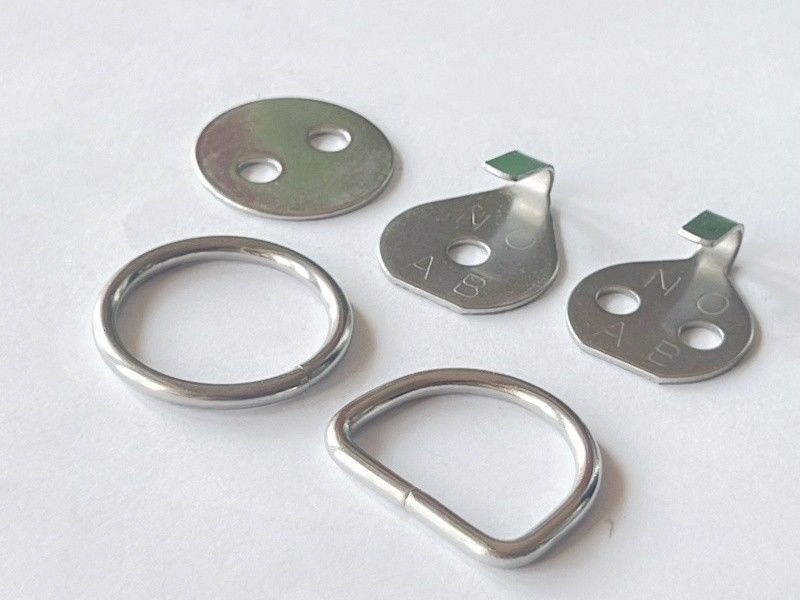

Below is the Common parts of the related lacing anchors . Such as Lacing hooks , Lacing washers
![]() |
Item: SS Lacing Hooks-1 Hole Material: Stainless Steel Diameter: 7/8" / 22mm Thickness: 1mm Type: With one 3/16" / 5mm hole in the center Hook Size: 5x11mm |
![]() |
Item: SS Lacing Hooks-2 Holes |
![]() |
Item: SS Lacing O-Rings Type :Weld type & Non-weld |
![]() |
Item: SSLacing D-Rings Type :Weld type & Non-weld |
![]() |

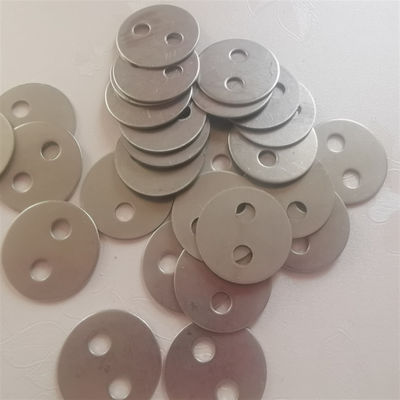

tem: SS Lacing Washer-2 Holes Material: Stainless Steel Diameter: 25mm Thickness: 1mm Type: With two 3/16" / 5mm hole in the center |
1. Put the lacing anchors In carton , and then on the pallets .
2. It also could be packed as request for big order .
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm are supported.
4. Can you accept small orders?
Yes, for common size, we accept small orders.
