12Ga Stainless Steel Perforated Base Insulation Pins For HVAC System

Large Image : 12Ga Stainless Steel Perforated Base Insulation Pins For HVAC System

Product Details:

Place of Origin:	China
Brand Name:	HUIHAO
Certification:	ISO
Model Number:	Perforated base insulation pins

Payment & Shipping Terms:

Minimum Order Quantity:	3000 pcs
Packaging Details:	Insulation Fixing Pins1. length less than 65mm, 1000 pcs per carton, 64 cartons per pallet. 2.length less than 120mm, 500pcs per carton, 64 cartons per pallet. 3. others to be your requirements.
Delivery Time:	15 work days
Payment Terms:	L/C, T/T
Supply Ability:	100000 pcs per 20 days

Contact Now

12Ga Stainless Steel Perforated Base Insulation Pins For HVAC System

Description

Product Name:	Perforated Base Insulation Pins	Base Size:	50mmx50mm
Material:	Stainless Steel , Galvanized Steel, Aluminum	Pin Length:	15mm-300mm
Pin Thickness:	2.7mm,3mm	Accessories:	Self Locking Washer ,dome Cap Washer
Usage:	HVAC System
Highlight:	Perforated Base Insulation Pins , 12Ga Insulation Pins , HVAC System Insulation Pins

12Ga Stainless Steel Perforated Base Insulation Pins For HVAC System

Perforated base insulation pins production introuduce:

Product name : perforated base insulation pins ,insulation hangers ,insulation anchors

Base Material: stainless steel ,mild steel

Base size :50mmx50mm,40mmx40mm,35mmx35mm,24mmx24mm

Pin material :stainless steel wire,galvanized steel wire,copper coated wire ,aluminum wire

Pin diameter :2.7mm,3.0mm in common ,other to be request

Pin length :25mm-300mm

Accesssories:self locking washer ,dome cap washer

Perforated base insulation pins Specification:

Specification of Perforated base insulation pins
Product name	perforated base insulation pins
Material	Galvanized sheet, Aluminum, Carbon steel, Stainless steel
Surface Treatment	polish ,galvanized
Size	50mmx50mm ,40mmx40mm,35mmx35mm,24mmx24mm
Material thickness	0.41mm
Pin diameter	2.7mm,3.0mm in common ,other to be request
Pin length	25mm-320mm
Accessories	self locking washer ,dome cap washer
Production technology	punch
Application	acoustical insulation
Report	Material test report and dimension measurement report
Samples	Available
Place of origin	Heibei, China

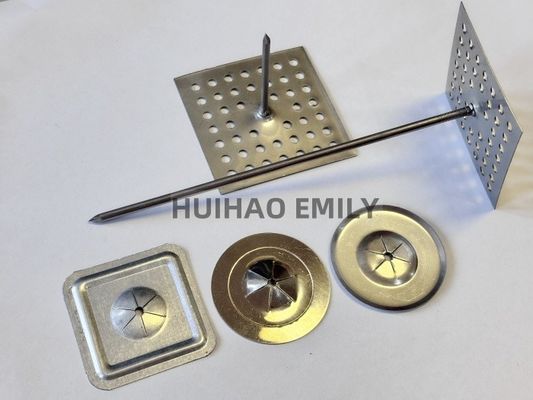

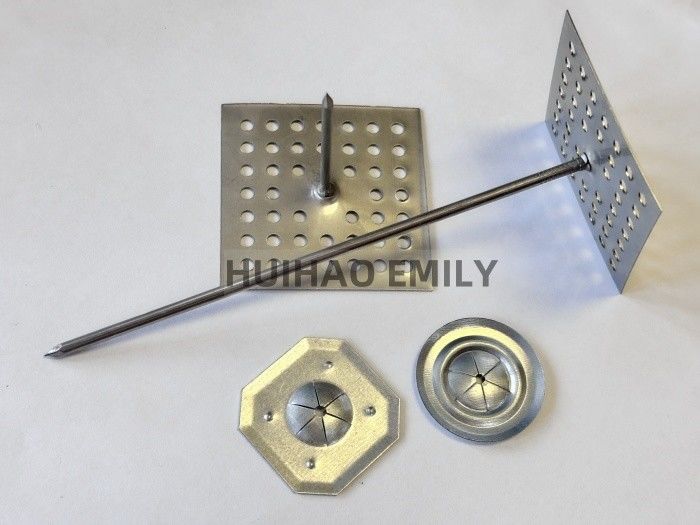

Pic of the Perforated base insulation pins :


Stainless steel insulation pins Base size :50mmx50mm ,40mmx40mm,35mmx35mm,24mmx24mm Base material :stainless steel 304/316/316L Pin diameter :2.7mm ,3.0mm in common ,other to be request Pin length :25-320mm Accessories : self locking washer ,dome cap washer

Galvanized steel insulation pins Base size :50mmx50mm ,40mmx40mm,35mmx35mm,24mmx24mm Base material :Galvanized steel Pin material :galvanized steel ,copper coated ,aluminum Pin diameter :2.7mm ,3.0mm in common ,other to be request Pin length :25-320mm Accessories : self locking washer ,dome cap washer

Insulation pins with groove pin Base size :50mmx50mm ,40mmx40mm Base material :stainless steel ,galvanized steel Pin diameter :2.7mm ,3.0mm in common ,other to be request Pin length :25-320mm Accessories : self locking washer ,dome cap washer

Accessories of the Perforated base insulation pins


Round self locking washer Material:stainless steel ,galvanized steel Size:25mm,30mm,38mm,40mm,50mm Center hole :for fixing 2.7mm,3.0mm insulation fasteners	Square self locking washer Material:stainless steel ,galvanized steel Size:32mm,40mm,50mm,64mm Center hole :for fixing 2.7mm,3.0mm insulation fasteners

Matel dome cap washer Material:stainless steel ,galvanized steel Size:25mm,30mm,38mm,40mm,50mm Center hole :for fixing 2.7mm,3.0mm insulation fasteners	PE+metal washer Material:stainless steel ,galvanized steel Size:40mm Center hole :for fixing 2.7mm,3.0mm,3.4mm,4mm,5mm insulation fasteners

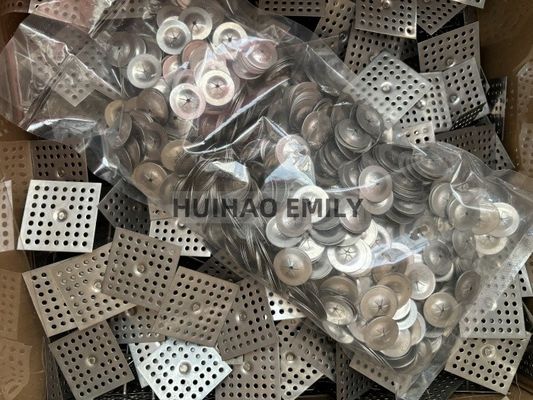

Package of the Perforated base insulation pins

The package of insulation pins :

>> Package

1. 500 pcs/800pcs/1000 pcs per carton. 64 cartons per pallet.

2. to be your requirements.
>>> Delivery
Sample: DHL/EMS/UPS/TNT/EXPRESS
Large Order: we recommend you by SEA ,or by AIR if in an emergency.

HUIHAO company production line :

Huihao company is a insulation fasteners/insulation anchors manufacturing company,
we produce all kinds of insulation pins and washers.can make mold according your

drawing pic ,Our products is as following :
CD weld pins Lacing Anchors
bimetallic pin Cup head weld pins
Quilting pins perforated base pins
self adhesive pins aluminum solar panel mesh clip
all kinds of self locking washers, Dome caps.

12Ga Stainless Steel Perforated Base Insulation Pins For HVAC System 8
