Hvac System Hardware Accessories Insulation Pin Nails With Perforated Base

Hvac System Insulation pin nails production introuduce:

Perforated Base Insulation Pin nails are used to fasten heavier insulation materials to

surfaces that self-sticking pins cannot adhere to. Each base is perforated with 44 small

holes that are used to "grab" the adhesive or allow a screw/nail to hold the base in place.

Once the insulation is pierced onto the pin, a locking washer or a domed cap can be

installed to hold the insulation in place.
For the pin ,the material usually choose stainless steel wire ,aluminum wire ,galvainzied

wire ,the wire must be annealed ,then it is soft to bend ,easy to use
For the base ,the material must be hard and not easily deformed

The insulation pin usally install with a selt-locking washer and dome cap washer

Specification of Hvac System Insulation pin nails :

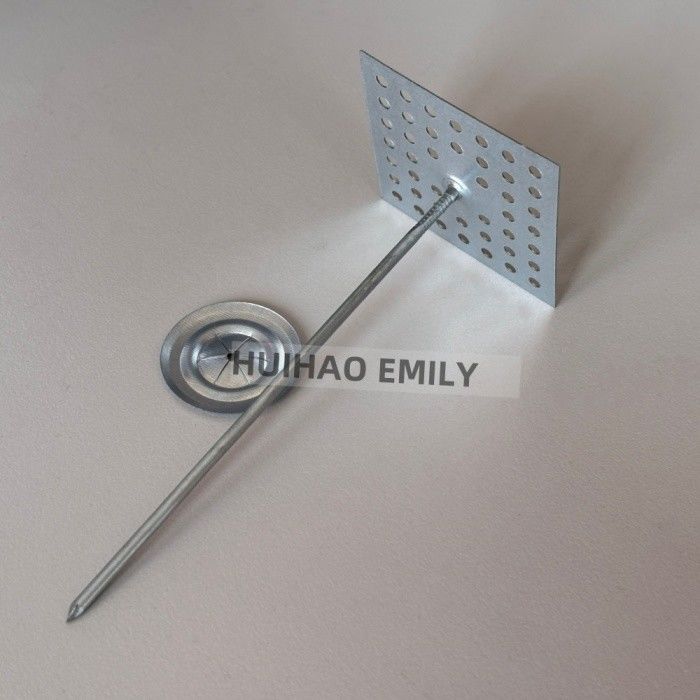

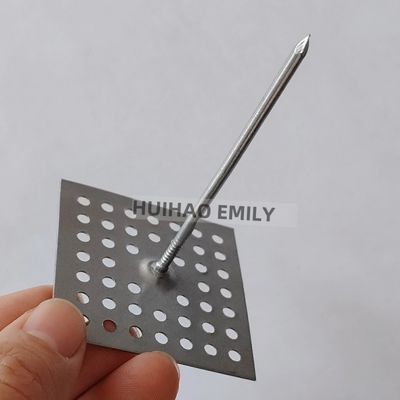

Pic of the Insulation pin nails

Stainless steel insulation pin nails  Base size :50mmx50mm ,40mmx40mm,35mmx35mm,24mmx24mm Base material :stainless steel 304/316/316L Pin diameter :2.7mm ,3.0mm in common ,other to be request Pin length :25-320mm Accessories : self locking washer ,dome cap washe

Galvanized steel insulation pin nails Base size :50mmx50mm ,40mmx40mm,35mmx35mm,24mmx24mm Base material :Galvanized steel Pin material :galvanized steel ,copper coated ,aluminum Pin diameter :2.7mm ,3.0mm in common ,other to be request Pin length :25-320mm Accessories : self locking washer ,dome cap washer

Insulation pin nails with groove pin Base size :50mmx50mm ,40mmx40mm Base material :stainless steel ,galvanized steel Pin diameter :2.7mm ,3.0mm in common ,other to be request Pin length :25-320mm Accessories : self locking washer ,dome cap washer

Application of the Insulation pin nails

Insulation Pins With Perforated Base Plate is suitable for air tube insulation, glass curtain

wall insulation,steel structure and other thermal insulation construction is not high temperature,

the adhesive method can be used for thermal nail special fast dry glue or can be used for

advanced foam adhesive

* Operation Temperatures: 15 to 25 ℃
* Working Surface should be clean and dry, free of dust, grease, oil and any other loose matter.
* Insulation can be impaled immediately and firmly locked with fastening washer.
* The Maximum strength of adhesive is achieved after 24 hours

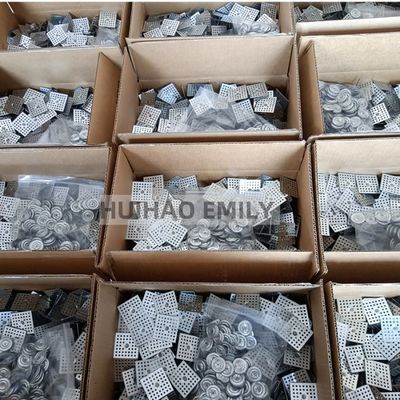

Package of the Insulation pin nails

The package of insulation pin nails : >> Package 1. 500 pcs/800pcs/1000 pcs per carton. 64 cartons per pallet. 2. to be your requirements. >>> Delivery Sample: DHL/EMS/UPS/TNT/EXPRESS Large Order: we recommend you by SEA ,or by AIR if in an emergency.

Insulation fasteners including a lot of terms as follows:

perforated base insulation pins
galvanized steel rock wool insulation pins
self adhesive insulation pins
CD weld pins

Bi-metallic pins

metal lacing anchors (quilting pins ,lacing hook ,lacing washer ,lacing rings )

metal quilking pins
