Perforated base insulation hanger ventilation 2-1/2" insulation fastener pins

Perforated base insulation hanger pins production introuduce:

Perforated base Insulation hanger pins are secured with General Purpose Adhesive,

specially formulated to bond to metal, masonry and other sound substrates.

Surfaces must be clean and dry before adhesive isapplied. Some protective coatings

are not compatible with adhesives and it is recommended that the user make test bonds

before proceeding with the application.

An all metal fire resistant anchor that is both fast and easy to install.
Suitable for fixing all types of insulation to concrete, brick, stone or block base material.

Insulation fastening solutions for concrete and masonry, suitable for insulation materials

such as mineral wool, EPS, XPS andfibreglass.

Perforated base insulation hanger pins Specification:

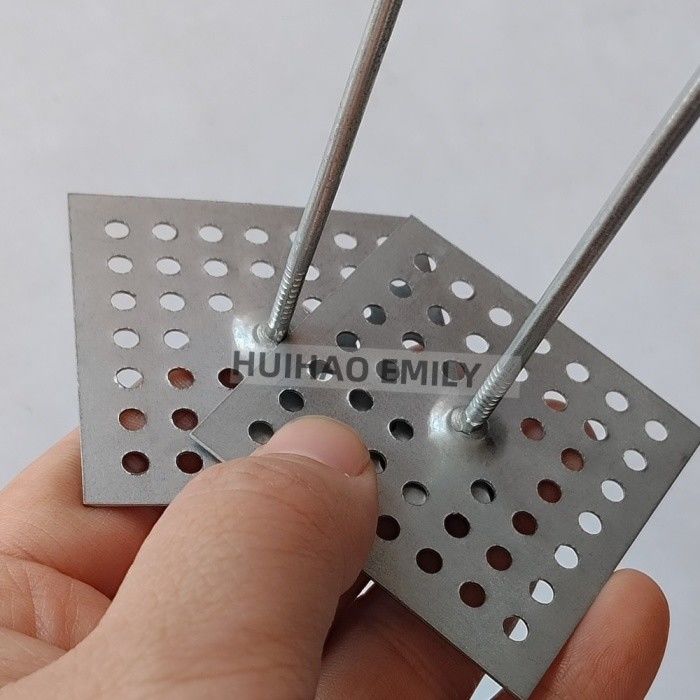

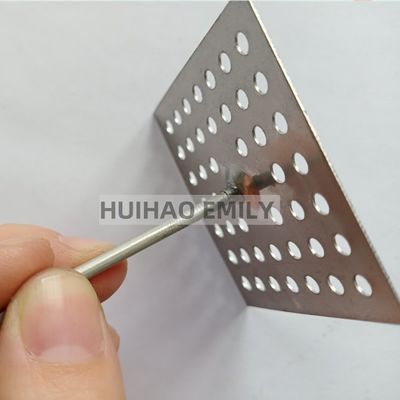

Pic of the Perforated base insulation hanger pins :

Stainless steel insulation hanger pins Base size :50mmx50mm ,40mmx40mm,35mmx35mm,24mmx24mm Base material :stainless steel 304/316/316L Pin diameter :2.7mm ,3.0mm in common ,other to be request Pin length :25-320mm Accessories : self locking washer ,dome cap washer

Galvanized steel insulation hanger pins Base size :50mmx50mm ,40mmx40mm,35mmx35mm,24mmx24mm Base material :Galvanized steel Pin material :galvanized steel ,copper coated ,aluminum Pin diameter :2.7mm ,3.0mm in common ,other to be request Pin length :25-320mm Accessories : self locking washer ,dome cap washer

Insulation pin nails with groove pin Base size :50mmx50mm ,40mmx40mm Base material :stainless steel ,galvanized steel Pin diameter :2.7mm ,3.0mm in common ,other to be request Pin length :25-320mm Accessories : self locking washer ,dome cap washer

Application of the Perforated base insulation hanger pins

·Suitable for all kinds of wall
·High pull-off strength for a higher security of the system
·Low thermal conduction addition value to avoid thermal bridge
·Galvanized layer on the steel nail to protect the nail

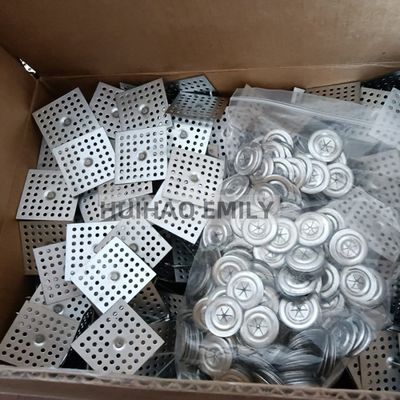

Package of the Perforated base insulation hanger pins

The package of insulation hanger pins : >> Package 1. 500 pcs/800pcs/1000 pcs per carton. 64 cartons per pallet. 2. to be your requirements. >>> Delivery Sample: DHL/EMS/UPS/TNT/EXPRESS Large Order: we recommend you by SEA ,or by AIR if in an emergency.

HUIHAO company FAQ :

Q1: Are you factory or trader ?

Yes ,we sell what we manufacture

Q2:How long is your delivery time?

Usually the ship time is within 7-15 days

Q3:What is your quote elements?

The size of product, material with surface treatment and the quantity

Q4:Can you provide samples?is it free or in charge ?

A3: Yes, we can provide sample for we have in stock ,for special sample you need pay the

mold fee ,the mold fee will return back you after confirm the mass order

Q5: How can you ensure the quality?

1.we can supply CAD drawing pic for you

2.Our company have ISO certificate

2.We have working on this product for twenty years and we have experience on it ,and we

know the point you focus on
