36 Mm Metal Disc Washers Pack X 100 For Xps Boards

36 Mm Metal Disc Washers Pack X 100 For Xps Boards
36 Mm Metal Disc Washers Pack X 100 For Xps Boards 36 Mm Metal Disc Washers Pack X 100 For Xps Boards 36 Mm Metal Disc Washers Pack X 100 For Xps Boards

Large Image :  36 Mm Metal Disc Washers Pack X 100 For Xps Boards

Product Details:
Place of Origin: China
Brand Name: Huihao
Certification: iso9001-2008
Model Number: 36mm
Payment & Shipping Terms:
Minimum Order Quantity: 10000pcs
Price: USD 0.015-0.03/pcs
Packaging Details: 20 pcs /bag ,50pcs/bag, 100pcs/bag, 200pcs/bag etc.
Delivery Time: 20 days after the payment
Payment Terms: L/C, T/T
Supply Ability: 2000000 pcs per 20 days

36 Mm Metal Disc Washers Pack X 100 For Xps Boards

Description
Name: 36 Mm Metal Washers Material: Stainless Steel Or Mild Steel
Application: Fixing Boards Washer Type: Perforated Disc
Washer Dis: 36mm Thickness: 0.6 Mm Or 0.7 Mm
Center Hole: 5mm Sample: Free
Fixing Part: Screws Label Service: Available
High Light:

tile backer washers 36 mm

,

xps boards tile backer washers

36 Mm Metal Disc Washers Pack X 100 For XPS Boards



Description Of 36mm Metal Disc Washers

36mm metal disc washers is used in combination with a 5-mm screw. Lightweight insulation boards or films can be fixed with this in wood and wooden materials. The flat plug disc allows thin coatings to be applied to the fixed materials



Common packing of the metal disc washers for resell
Packing 01
36 mm INSUL DISC WASHER -PACK X 20
Packing 02
36 mm INSUL DISC WASHER -PACK X 50
Packing 03
36 mm INSUL DISC WASHER -PACK X 75
Packing 04
36 mm INSUL DISC WASHER -PACK X 100
Packing 05
36 mm INSUL DISC WASHER -PACK X 200
Note
The packing also could be done according the customer's requirements .
  • Product name : 36mm metal disc washers , also called backer board washers
  • Material :Galvanized steel or Stainless steel
  • Washer type : disc washers
  • Washer size :36 mm
  • Center hole : 5 mm
  • Thickness :0.6 mm or  0.7 mm
  • Edge hole : 8 mm
  • Application : for light weight board fixing .

Data sheet Of 36mm Metal Disc Washers



Name  36mm metal disc washers
Material  Mild steel  Stainless steel 304, 316
Surface treatment Zinc-plading /galvanized  Polished
Washer diameter  36mm 36mm
Center hole dia  5mm/6mm 5mm/6mm
Washer thickness  0.6mm /0.7mm /customized thickness  0.6mm /0.7mm /customized thickness
Packing  Plastic bag or paper box , then in cartons

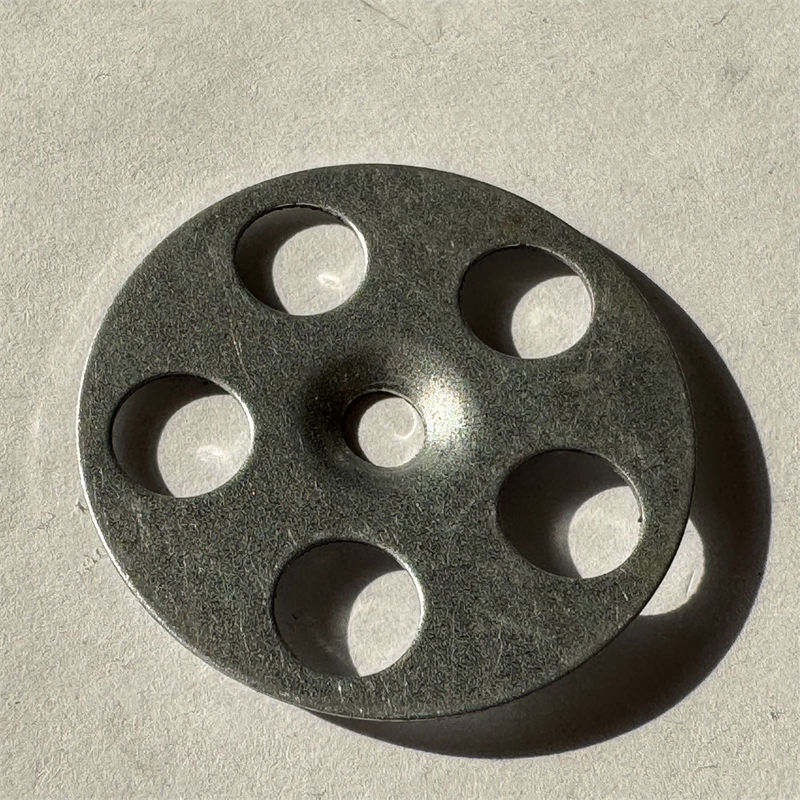

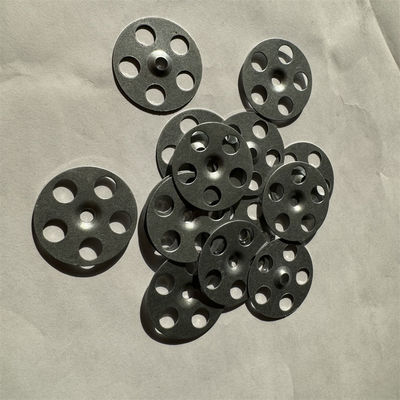

Detailed Image Of 36mm Metal Disc Washers

36 Mm Metal Disc Washers Pack X 100 For Xps Boards 0



Application Of 36mm Metal Disc Washers

1. When using the 36mm tile backer board washers to fix tile backer boards

to walls and floors, it is recommended to use 15 washers per 1200 x 600mm board.

2. This is only a guide and specifically it's depended on the type, thickness, sub surface and

what is to be put onto the board.

3. It is the installers responsibility to use the correct number of washers to hold the tile backer board in place.

36 Mm Metal Disc Washers Pack X 100 For Xps Boards 1

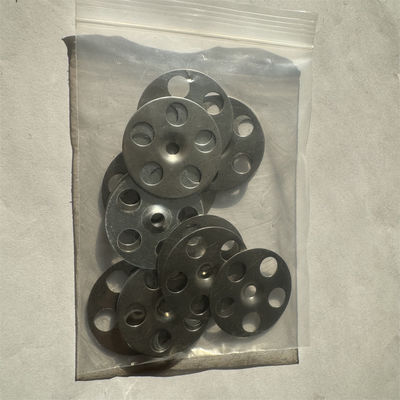

Package Of 36mm Metal Disc Washers



packing method: plastic bag +carton

20pcs/50pcs/75pcs/100pcs /200pcs per bag. then pu into cartons .

36 Mm Metal Disc Washers Pack X 100 For Xps Boards 2

36 Mm Metal Disc Washers Pack X 100 For Xps Boards 3

FAQ Of Huihao Hardware Mesh Product Limited.



1. Are you a manufacture or a trader?

We are a manufacture, located in Hebei province, China.

2. Do you support product customization?
Yes, the material, the surface finish, the size, all could be customized.

3. Do you support package customization?

Yes, the package could be customized according to your need.

4. Can i get samples?
Yes, samples for quality confirm are supported.

5. Can you accept small orders?

Yes, for common size, we could accept small orders.
