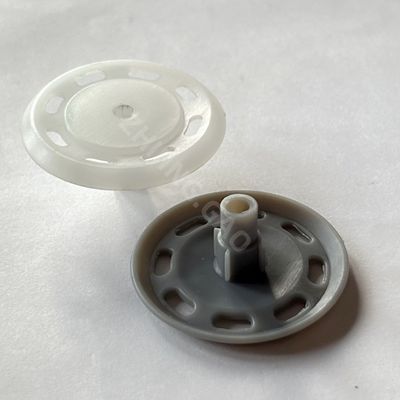

Product Details:
|
Name: | Powder Actuated Tile Backer Board Washer | Material: | PE FIREPROOF GRADE |
---|---|---|---|
Diameter: | 35mm | Install Part: | Steel Drive Pin 3.5mm Diameter |
Washer Height: | 15mm | Designer: | ZHIJING.GAO13363891298 |
Application: | Fix Tile Backer Board | Color: | Grey, White In Common |
Highlight: | powder actuated tile backer board washers,pe tile backer board washers,35mm backer board washers |
Compatible Tools:PTP-27L, PT-27, PT-22A, PT-22HA
term
|
name
|
material
|
DIAMETER
|
HEIGHT
|
1
|
PINWP is a powder-actuated washered pin
|
PE
|
35MM
|
15M
|

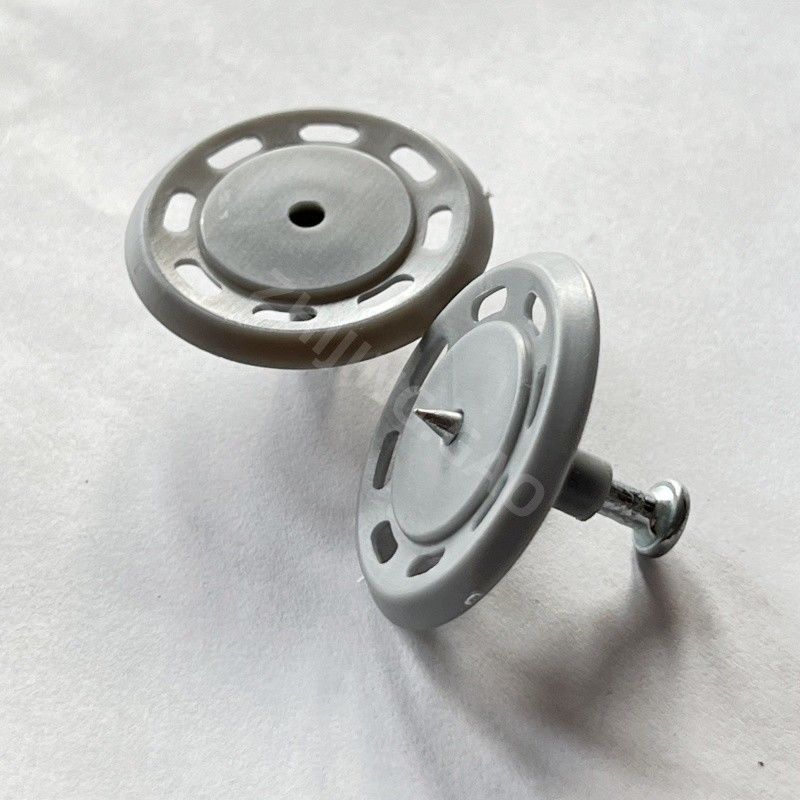

Powder Actuated tile backer board washer in PE material is a unique fastener designed for the attachment of rigid foam insulation to concrete, masonry or steel base materials. The fastener is pushed through the insulation until it touches the base material and then it is fastened in place with a Hilti powder-actuated tool. The fastener can fasten insulation panels ranging in thickness from 1" through 4-3/4". soft washer with pre-mounted powder-actuated fastener is designed for attaching thin membranes or panels to concrete base materials. The washers are 30mm and 60mm in diameter with nail lengths of 1-1/2", 1-7/8" and 2-1/2". These fasteners are installed using a Hilti powder-actuated tool.
fastener powder
|
actuated powder
|
actuated washer
|
fastener material
|
fastener plating1
|
material 2
|
carbon steel
|
5 μm Zinc
|
plastic
|
carbon steel
|
5 μm Zinc
|
plastic
|
Due to potential embrittlement degradation of fastener plastic, exposure to UV light should be limited to less than 90 days.
shank length
|
shank
|
insulation material thickness
|
washer color
|
package quantity
|
25
|
47
|
4.5mm
|
white
|
300pcs
|
35
|
47
|
4.5mm
|
white
|
300pcs
|
40
|
62
|
4.5mm
|
white
|
300pcs
|
50
|
62
|
4.5mm
|
white
|
300pcs
|
60
|
62
|
4.5mm
|
white
|
300pcs
|
70
|
62
|
4.5mm
|
white
|
200pcs
|
75
|
62
|
4.5mm
|
white
|
200pcs
|
80
|
62
|
4.5mm
|
white
|
200pcs
|
100
|
62
|
4.5mm
|
white
|
200pcs
|
120
|
72
|
4.5mm
|
white
|
150pcs
|
shank length
|
shank
|
washer diameter
|
color
|
quantity
|
30 C-37
|
37mm
|
0.138 (3.5) 1-3/16 (30)
|
gray
|
150pcs
|
30 C-37
|
37mm
|
0.138 (3.5) 1-3/16 (30)
|
gray
|
150pcs
|
30 C-37
|
37mm
|
0.138 (3.5) 1-3/16 (30)
|
white
|
100pcs
|
30 C-62
|
62mm
|
0.138 (3.5) 1-3/16 (30)
|
gray
|
100pcs
|
60 C-37
|
37mm
|
0.138 (3.5) 2-3/8 (60)
|
gray
|
150pcs
|
60 C-47
|
47mm
|
0.138 (3.5) 2-3/8 (60)
|
gray
|
100pcs
|
60 C-62
|
62mm
|
0.138 (3.5) 2-3/8 (60)
|
gray
|
100pcs
|
Applications of Powder Actuated tile backer board washer in PE material
