70 MM Meal Tile Backer Board Washer Fix Insulation On Walls

70 MM Meal Tile Backer Board Washer Fix Insulation On Walls
70 MM Meal Tile Backer Board Washer Fix Insulation On Walls 70 MM Meal Tile Backer Board Washer Fix Insulation On Walls 70 MM Meal Tile Backer Board Washer Fix Insulation On Walls

Large Image :  70 MM Meal Tile Backer Board Washer Fix Insulation On Walls

Product Details:
Place of Origin: China
Brand Name: Huihao
Certification: iso9001-2008
Model Number: HH-DW70
Payment & Shipping Terms:
Minimum Order Quantity: 10000pcs
Price: USD 0.015-0.03/pcs
Packaging Details: 20 pcs /bag ,50pcs/bag, 100pcs/bag, 200pcs/bag etc.
Delivery Time: 20 days after the payment
Payment Terms: L/C, T/T
Supply Ability: 2000000 pcs per 20 days
Contact Now

70 MM Meal Tile Backer Board Washer Fix Insulation On Walls

Description
Name: 70mm Backer Board Washers Material: Stainless Steel Or Mild Steel
Application: Fixing The Insulation Material On The Wall Washer Type: Round Type
Washer Dis: 70mm Thickness: 0.6 Mm Or 0.8 Mm , Also Could Be Made As Request
Center Hole: 5 -8mm In Common Sample Order: Support
Samples: Available Packing: Plastic Bag +carton
High Light:

70 MM Tile Backer Board Washer

,

Fix Insulation Tile Backer Board Washer

,

70 MM Backer Board Washers

70 MM Meal Tile Backer Board Washer To Fix The Insulation On The Walls



Description Of 70mm Backer Board Washers

Tile Backer Board Washers also named metal disc washers ,are used to secure tile backer boards, cement board,

XPS insulation boards, and other insulations foam to wooden floors or stud walls.We provide the washers in different material and size .

The most common size is 35 mm, 36mm ,50 mm, 70mm

  • Product name : Tile Backer Board Washers , metal disc washers
  • Material :Stainless steel , Mild steel
  • Washer type : Perforated disc
  • Washer size :70 mm ,alsocold be 32mm,35mm,36mm,50mm , etc
  • Center hole : 5 mm in common , or made as your requestion
  • Thickness :0.6 mm or  0.8mm
  • Edge hole : 8 mm
  • Application : for light weight boards fixing .
  • Related parts: metal screws (length could be as your request).

Data sheet Of 70mm Backer Board Washers

Nane  Backer Board Washers
Material  Washers diameter Center hole diameter Washer thickness
Stainless steel , mild steel  35mm 5mm,6mm,8mm 0.6mm,0.7mm,0.8mm
Stainless steel , mild steel 36mm 5mm,6mm,8mm 0.6mm,0.7mm,0.8mm
Stainless steel , mild steel 50mm 5mm,6mm,8mm 0.6mm,0.7mm,0.8mm
Stainless steel , mild steel 70mm 5mm,6mm,8mm 0.6mm,0.7mm,0.8mm

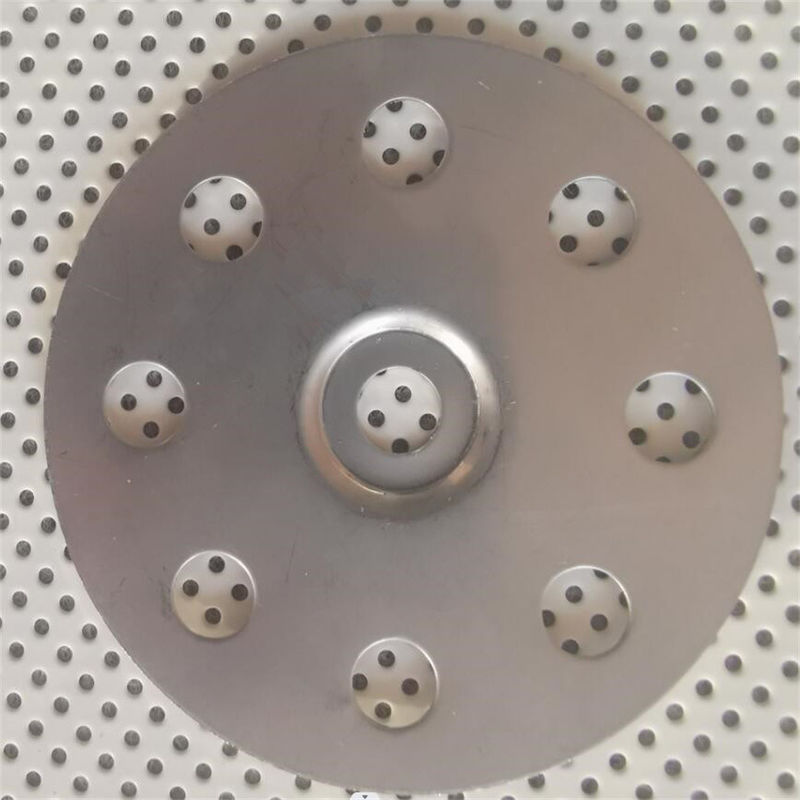

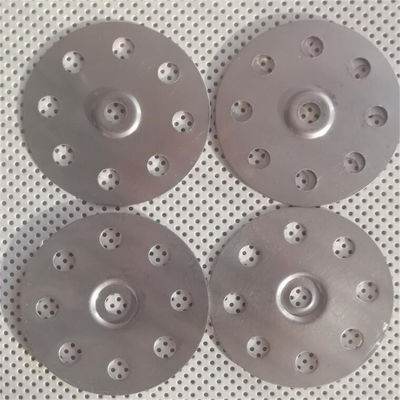

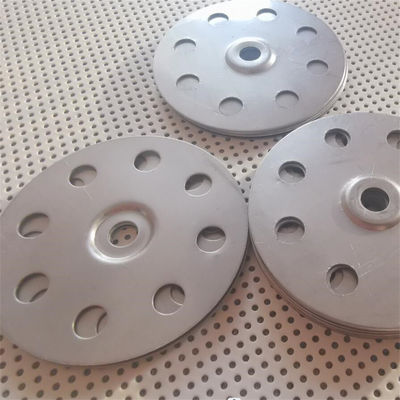

Detailed Image Of 70mm Backer Board Washers

70 MM Meal Tile Backer Board Washer Fix Insulation On Walls 070 MM Meal Tile Backer Board Washer Fix Insulation On Walls 170 MM Meal Tile Backer Board Washer Fix Insulation On Walls 2



Application Of 70mm Backer Board Washers

1. When using the 36mm tile backer board washers to fix tile backer boards
to walls and floors, it is recommended to use 15 washers per 1200 x 600mm board.
2. This is only a guide and specifically it's depended on the type, thickness, sub surface and
what is to be put onto the board.
3. It is the installers responsibility to use the correct number of washers to hold the tile backer board in place.



Package Of70mm Backer Board Washers


packing method: plastic bag +carton
20pcs/50pcs/75pcs/100pcs  per bag. then pu into cartons .

70 MM Meal Tile Backer Board Washer Fix Insulation On Walls 3
70 MM Meal Tile Backer Board Washer Fix Insulation On Walls 4

FAQ Of Huihao Hardware Mesh Product Limited.

Q1: What type of insulation boards are compatible with these Zinc-Plated Insulation Washers?
A1: Our Zinc-Plated Insulation Washers are designed to be compatible with a wide range of insulation boards, including popular brands such as XPS boards, backer boards, and various other board manufacturers.

Q2: How do these Zinc-Plated Insulation Washers prevent damage to the insulation boards?
A2: The washers act as a protective barrier between the fastener and the insulation boards, distributing the load evenly and preventing damage such as surface indentations or compressions.

Q3: Are these Zinc-Plated Insulation Washers resistant to corrosion?
A3: Yes, our washers feature a zinc-plated finish, which provides excellent corrosion resistance, ensuring their durability and longevity even in demanding environments.

Q4: Can these Zinc-Plated Insulation Washers be used for both residential and commercial projects?
A4: Absolutely! These washers are suitable for a wide range of applications, inc
0.6mm,0.7mm,0.8mm
