Product Details:
|
| Name: | Perforated Disc Washers | Material: | Galvanized Steel Or Stainless Steel |
|---|---|---|---|
| Application: | Fixing The Insulation Boards | Washer Type: | Perforated Disc |
| Washer Dis: | 36 Mm In Common , Also Could Customized | Thickness: | 0.6 Mm Or 0.7 Mm Or Customized |
| Center Hole: | 5 Mm In Common | Sample Order: | Support |
| Samples: | Available | Packing: | 100 Pcs Per Bag Or Paper Box |
| High Light: | Perforated Disc Washers,Galvanized Disc Washers,Insulation Boards Disc Washers |
||
Perforated Disc Washers with screws is widely used to fix the lightweight insulation boards .
Large diameter perforated discwashers(35mm /36mm/70mm), for use with screws to hold insulation materials to battens. They can also be used for cracked ceiling repairs. These insulation washers have a 5.5mm diameter hole in the centre. They do not come supplied with screws, meaning you can use the desired length for your application. These metal insulation discs are made from stainless steel for increased corrosion resistance.
Note: Once installed, the head of the fixing should be taped and sealed to avoid any contact with wet plaster. Failure to do so may result in surface damage.
Data sheet Of Perforated Disc Washers
 |
|
| Product name | Perforated disc washers |
| Material | Stainless steel or mild steel |
| Washers size | 35mm ,36mm ,70mm or customized size |
| Surface treatment | Polished for the SS material , zinc coated for the mild steel material |
| Center hole | 5mm,5.5mm,6.0mm |
| Thickness | 0.6 mm or 0.7 mm or customized thickness |
| Application | XPS/backer boards /Lightweight board fixing |

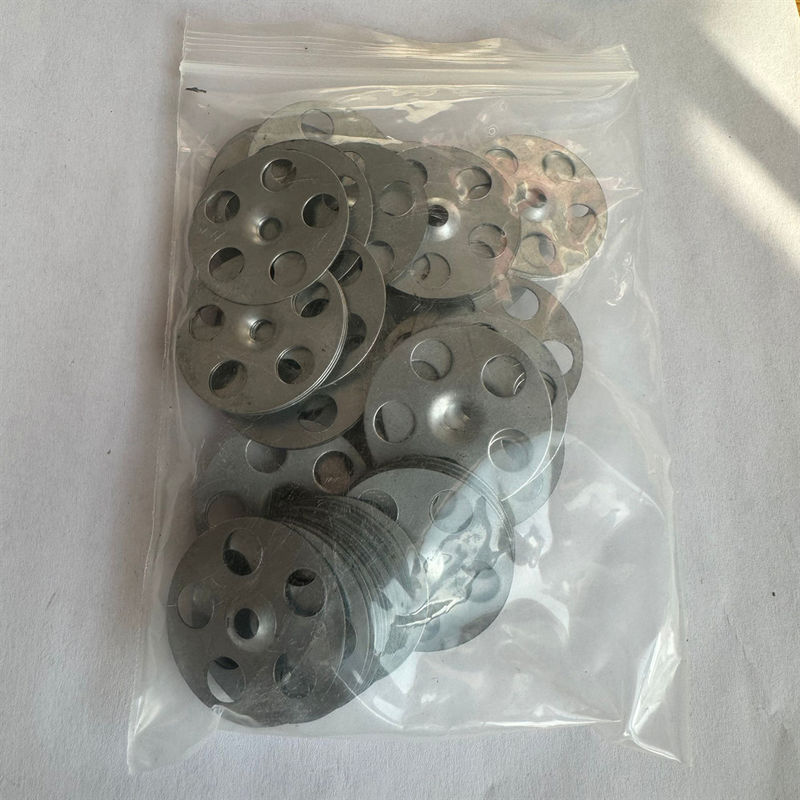

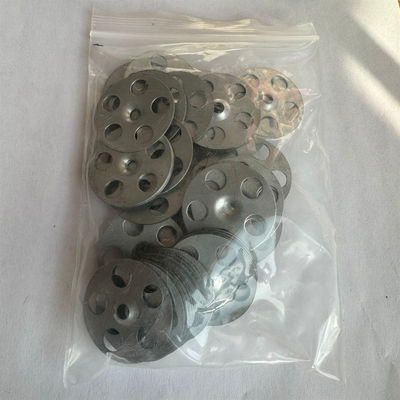

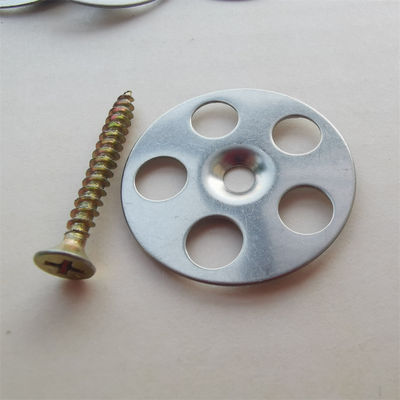

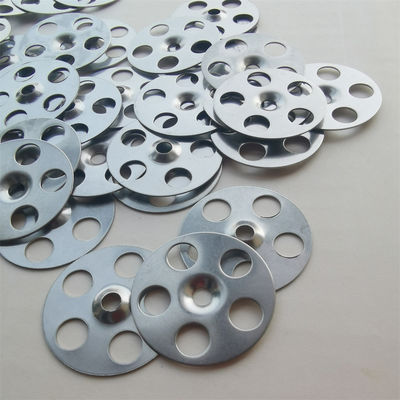

Detailed Image Of Perforated Disc Washers
|
1. When using the perforated disc washers to fix tile backer boards to walls and floors, it is recommended to use 15 washers per 1200 x 600mm board. 2. This is only a guide and specifically it's depended on the type, thickness, sub surface and what is to be put onto the board. 3. It is the installers responsibility to use the correct number of washers to hold the tile backer board in place. |
packing method: plastic bag +carton
20pcs/50pcs/75pcs/100pcs /200pcs per bag. then pu into cartons .
