Product Details:
|
| Product Name: | Cup Head Welding Insulation Pins 12Gauge | Material: | Galvanized Steel |
|---|---|---|---|
| Brand: | HUIHAO CUSTOM | Head Dia: | 30mm |
| Usage: | Fasten Foil Faced Insulation Materials | Pin Diameter: | 2.7mm |
| Samples: | Supported | Pin Length: | As Your Requirement |
| High Light: | cup head welding insulation pins,welding insulation pins 12 gauge |
||

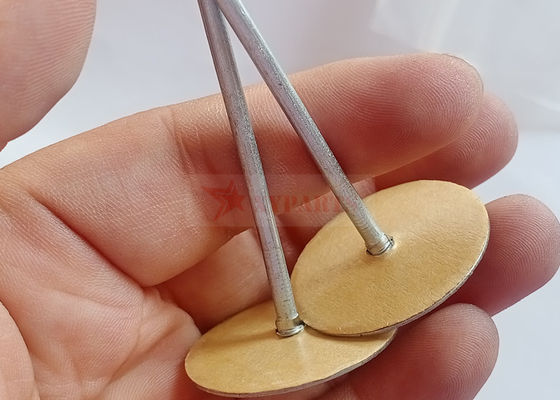

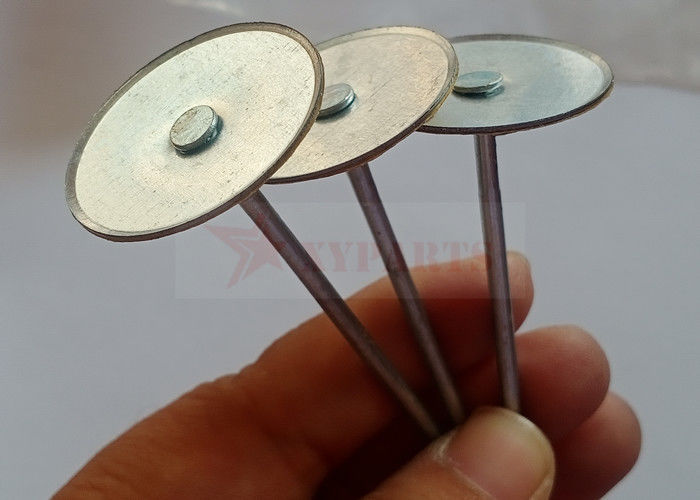

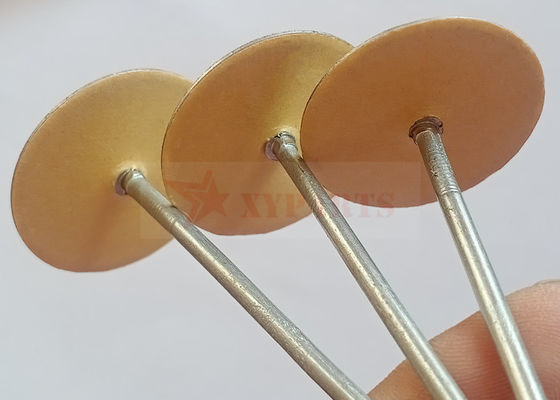

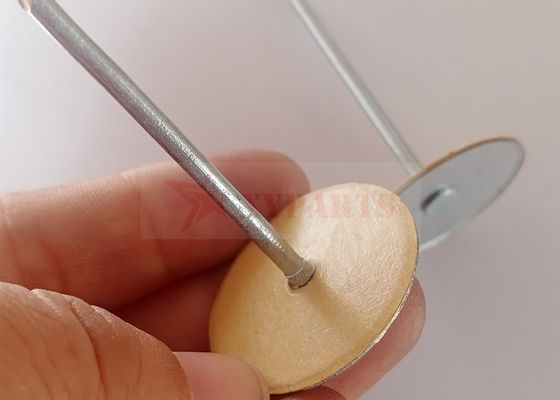

The cup head welding insulation pins are widely used to attach insulation to ducts, ovens, boilers
and hot / cold equipment for commercial insulation, industrial insulation or marine insulation usage.
The cup head welding insulation pins are made up of a weld pin and a retaining washer. While
some variations of material are available, the most popular is a galvanized steel or copper coated
steel weld nail with a galvanized steel retaining washer.
The cup head welding insulation pins are usually applied with a capacitor discharge stud welder.
The method of application is to place the insulation onto a metal surface, push the cup head
welding insulation pins through the insulation, and weld affix (mount) the entire fabrication in one step.
The cup head welding insulation pins are widely accepted as labor saving fasteners in the
thermal and acoustical insulation markets primarily for commercial type insulation applications.
|
Item: 12Gauge Cup Head Welding Insulation Pins Type: With or without paper washer Head Material: Galvanized steel
|
|
Item: Cup Head Welding Insulation Pins Type: With or without paper washer Head Material: Galvanized steel
|
|||
 |
|
Item: Cup Head Welding Insulation Pins Step: 1. Hanging the insulation. |
| Recommended for | Pin length before welding | |||
| 1/2" insulation(all densities) | 12.67mm | |||
| 1" insulation(1-1/2"ib density) | 17.63mm | |||
| 1" foam | 25.55mm | |||
| 1" insulation(3ib densities) | 23.72mm | |||
| 1-1/2" insulation(all densities) | 28.42mm | |||
| 2" insulation(1-1/2"-2" ib density) | 37.95mm | |||
| 2" insulation(3ib densities) | 48.77mm | |||
| 3" insulation(all densities) | 69.85mm | |||
| 4" insulation(all densities) | 95.00mm | |||
|
1. 2000 pcs / 3000 pcs/ 5000 pcs per carton 2. 36 cartons per pallet
3. or according to your requirement.
|
|
|
