4.5" Stainless Steel Lacing Anchors for Insulation Blankets 14 Gauge

Large Image : 4.5" Stainless Steel Lacing Anchors for Insulation Blankets 14 Gauge

Product Details:

Place of Origin:	China
Brand Name:	HUIHAO CUSTOM
Certification:	iso
Model Number:	stainless steel lacing anchors

Payment & Shipping Terms:

Minimum Order Quantity:	10000 pcs
Packaging Details:	paper carton + wood pallet
Delivery Time:	15 days after the payment
Payment Terms:	L/C,T/T,Western Union,Paypal
Supply Ability:	500000 pcs per 15 days

Contact Now

4.5" Stainless Steel Lacing Anchors for Insulation Blankets 14 Gauge

Description

Name:	Stainless Steel Lacing Anchors For Removable Insulation Pads	Application:	Insulation Covers, Insulation Blankets
Material:	Stainless Steel	Head Type:	Round Or Rectangle
Head Size:	22mm, 30mm, 20mmx25mm	Pin Diameter:	12ga Or 14ga Or As Standard
Length:	2-1/2" Or 4-1/2" Or As Standard	Customization:	Supported
Highlight:	lacing anchor , stainless steel lacing anchor , insulation lacing anchor

4 ½" X 14 Gauge Stainless Steel Lacing Anchors For Removable Insulation Pads

Product Specifications

Attribute	Value
Name	Stainless Steel Lacing Anchors For Removable Insulation Pads
Application	Insulation covers, insulation blankets
Material	Stainless steel
Head Type	Round or rectangle
Head Size	22mm, 30mm, 20mmx25mm
Pin diameter	12ga or 14ga or as Standard
Length	2-1/2" or 4-1/2" or as standard
Customization	Supported

Product Description

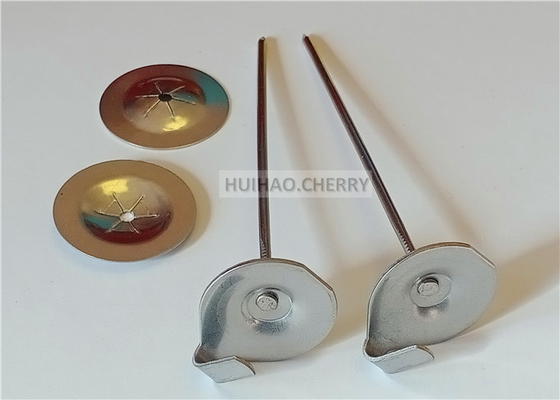

Lacing Anchors are used in the fabrication of insulation blankets or removable covers/pads. The nail is pressed through the insulation material, so the hook portion sits on the top edge and the nail is secured on the opposite side of the insulation with a washer. The two sides of the blanket can then be "laced" together by the hooks with tie wire.

Detailed Specifications

Material: Stainless steel
Head Type: Round or slot
Head Size: 22mm (round type), 30mm (round type), 25x11mm (slot type)
Head Thickness: 1mm

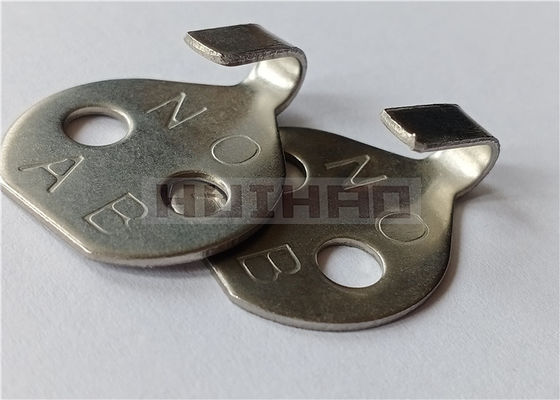

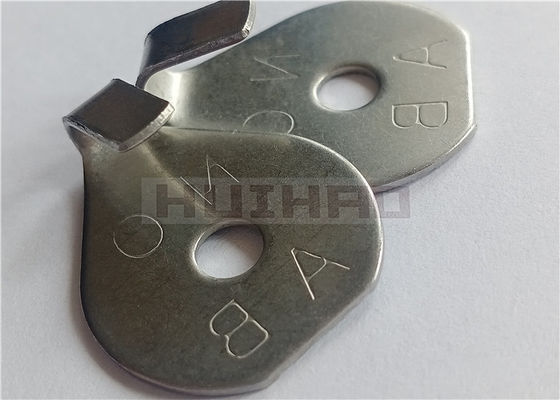

Head Type: With one hole or two holes / one side is stamped "A" "B"
Hook Size: 5x11mm
Pin Diameter: 2mm, 2.2mm, 2.7mm
Pin Length: 63.5mm, 114mm
Usage: For fixing the insulation blankets or removable covers/pads

Product Types

Type 1: Round head stainless steel lacing anchor

Head diameter: 22mm
Hook size: 11x5mm
Pin diameter: 12 GA, 14GA, 3mm
Pin length: 38mm-300mm

Type 2: Rectangle head stainless steel lacing anchor

Head size: 25x11mm
Hook size: 11x5mm
Pin diameter: 12 GA, 14GA, 3mm
Pin length: 38mm-300mm

Application Instructions

Prepare insulation blanket
Press lacing anchor through blanket
Secure lacing anchor with self locking washer and bend the spindle
Apply insulation blanket
Secure blanket by lacing through hooks with lacing wire

Packaging Information

Product	Size(mm)	Quantity	Carton(cm)	Weight
Lacing Anchors	12Gauge*2.5"	1000Pcs	41x28x18	8.6kgs
Lacing Anchors	12Gauge*4.5"	1000Pcs	41x28x18	9.9kgs
Lacing Anchors	14Gauge*2.5"	1000Pcs	41x28x18	10kgs
Lacing Anchors	14Gauge*4.5"	1000Pcs	41x28x18	12.3kgs

Frequently Asked Questions

Are you a manufacturer or a trader?

We are a manufacturer, located in Hebei province, China.

Do you support product customization?

Yes, the material, the size, and the package all could be customized.

Can I get samples?

Yes, we can send you samples.

Can you accept small orders?

Yes, for common material and size, we accept small orders.

How do you control and ensure product quality?

Always a pre-production sample before mass production; Always final Inspection before shipment.

What's your advantages?

Cooperate with us, we can ensure:

Competitive price: we sale what we manufacture.
On-time delivery: we have the auto-production line to ensure the on-time delivery.
Excellent quality: we have rich experience, our products are in line with international standard.
Good after-sale service: we offer good after-sale service for each order.
