Thermal Insulation 12 Gauge Stainless Steel Lacing Anchors Used For Removable Covers For Valves And Pumps

Thermal Insulation 12 Gauge Stainless Steel Lacing Anchors Used For Removable Covers For Valves And Pumps
Thermal Insulation 12 Gauge Stainless Steel Lacing Anchors Used For Removable Covers For Valves And Pumps
Thermal Insulation 12 Gauge Stainless Steel Lacing Anchors Used For Removable Covers For Valves And Pumps Thermal Insulation 12 Gauge Stainless Steel Lacing Anchors Used For Removable Covers For Valves And Pumps Thermal Insulation 12 Gauge Stainless Steel Lacing Anchors Used For Removable Covers For Valves And Pumps Thermal Insulation 12 Gauge Stainless Steel Lacing Anchors Used For Removable Covers For Valves And Pumps Thermal Insulation 12 Gauge Stainless Steel Lacing Anchors Used For Removable Covers For Valves And Pumps Thermal Insulation 12 Gauge Stainless Steel Lacing Anchors Used For Removable Covers For Valves And Pumps Thermal Insulation 12 Gauge Stainless Steel Lacing Anchors Used For Removable Covers For Valves And Pumps

Large Image :  Thermal Insulation 12 Gauge Stainless Steel Lacing Anchors Used For Removable Covers For Valves And Pumps

Product Details:
Place of Origin: China
Brand Name: HUIHAO CUSTOM
Certification: ISO
Model Number: Stainless Steel Lacing Anchor Fasteners
Payment & Shipping Terms:
Minimum Order Quantity: 10000 pcs
Packaging Details: paper carton + wood pallet
Delivery Time: 15 days after the payment
Payment Terms: L/C,T/T,Western Union,Paypal
Supply Ability: 500000 pcs per 15 days
Contact Now

Thermal Insulation 12 Gauge Stainless Steel Lacing Anchors Used For Removable Covers For Valves And Pumps

Description
Name: Stainless Steel Lacing Anchors Fasteners With Self Locking Washers Brand: HUIHAO CUSTOM
Material: Stainless Steel Head Diameter: 22mm
Application: To Fasten Insulation Blankets Head Thickness: 1mm
Customization: Supported Pin Diameter: 12Gauge
Samples: Supported Length: 2-1/2" Or 4-1/2" Or As Standard
Highlight:

lacing anchor

,

stainless steel lacing anchor

,

insulation lacing anchor

Thermal Insulation 12 Gauge Stainless Steel Lacing Anchors

Used for removable covers for valves and pumps

Product Specifications
Attribute Value
Name Stainless Steel Lacing Anchors Fasteners With Self Locking Washers
Brand HUIHAO CUSTOM
Material Stainless steel
Head diameter 22mm
Application To Fasten Insulation Blankets
Head thickness 1mm
Customization Supported
Pin diameter 12Gauge
Samples Supported
Length 2-1/2" or 4-1/2" or as standard
Product Description

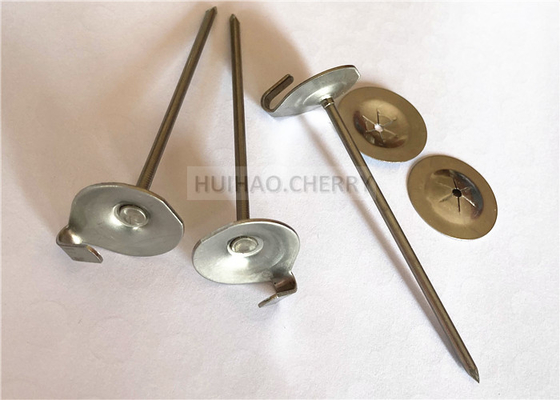

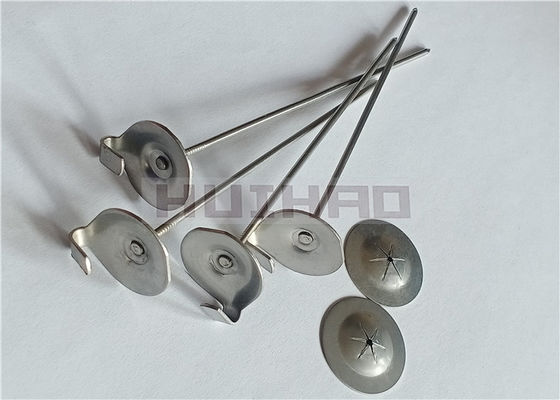

12 Gauge Stainless Steel Lacing Anchor Fasteners With 25mm Self Locking Washers are used for the fabrication of insulation blankets or removable covers/pads, excellent for high temperature in both exterior and interior applications.

Thermal Insulation 12 Gauge Stainless Steel Lacing Anchors Used For Removable Covers For Valves And Pumps 0 Thermal Insulation 12 Gauge Stainless Steel Lacing Anchors Used For Removable Covers For Valves And Pumps 1
Key Features
  • Made from durable stainless steel (also available in mild steel)

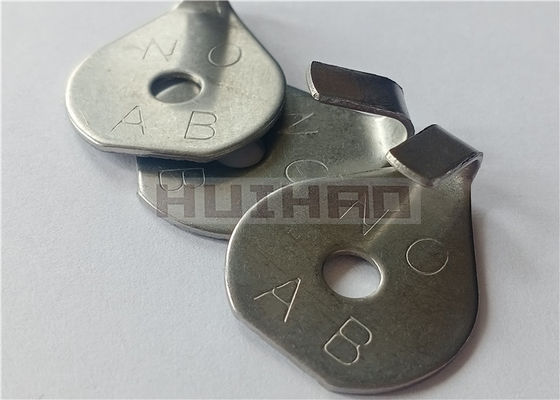

  • Stamped "no ab" to denote 'no asbestos'
  • Tabbed head diameter: 7/8" (22mm) or 1" (25mm)
  • Available in 12 gauge (2.7mm) or 14 gauge (2.0mm) pin diameter
  • Standard pin lengths: 2-1/2" (63mm) & 4-1/2" (114mm)
  • Ideal for fabrication of lacing blankets or removable covers
Additional Specifications
  • Origin: Hebei, China
  • Head Type: Round or rectangle
  • Hook Size: 5mmx11mm or 5mmx15mm

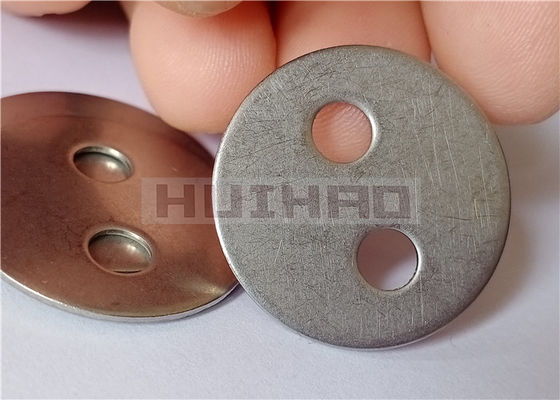

  • Self-locking Washer: 25mm diameter, 0.4mm thickness (galvanized steel or stainless steel)
Thermal Insulation 12 Gauge Stainless Steel Lacing Anchors Used For Removable Covers For Valves And Pumps 2

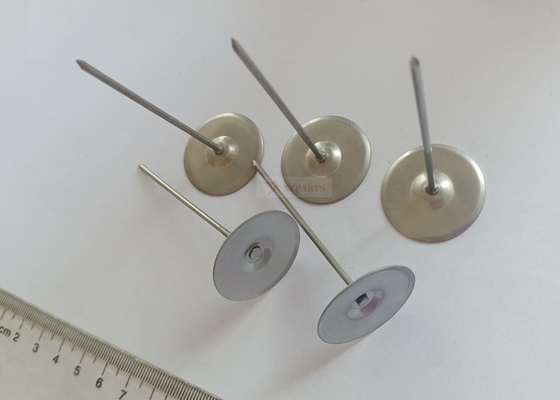

Related Products: Quilting Pins
Material Head Dia Pin Dia Pin Length Washer Size
Galvanized steel or stainless steel 1-3/16" 14ga (2.0mm) 2.5" (63.5mm) 25mm etc.
Galvanized steel or stainless steel 1-3/16" 14ga (2.0mm) 3" (76.2mm) 25mm etc.
Galvanized steel or stainless steel 1-3/16" 14ga (2.0mm) 4.5" (114.3mm) 25mm etc.
Galvanized steel or stainless steel 1-3/16" 12ga (2.7mm) 2.5" (63.5mm) 25mm etc.
Galvanized steel or stainless steel 1-3/16" 12ga (2.7mm) 3" (76.2mm) 25mm etc.
Galvanized steel or stainless steel 1-3/16" 12ga (2.7mm) 4.5" (114.3mm) 25mm etc.
Thermal Insulation 12 Gauge Stainless Steel Lacing Anchors Used For Removable Covers For Valves And Pumps 3 Thermal Insulation 12 Gauge Stainless Steel Lacing Anchors Used For Removable Covers For Valves And Pumps 4
Frequently Asked Questions
Are you a manufacturer or a trader?
We are a manufacturer, located in Hebei province, China.
Do you support product customization?
Yes, the material, the size, and the package all could be customized.
Can I get samples?
Yes, we can send you samples.
How do you control and ensure product quality?
Always a pre-production sample before mass production; Always final Inspection before shipment.
What are your advantages?
  • Competitive price: we sell what we manufacture
  • On-time delivery: we have the auto-production line to ensure on-time delivery
  • Excellent quality: our products meet international standards
  • Good after-sale service: we offer excellent support for each order
