Product Details:
|
| Name: | 4-1/2" Stainless Steel Lacing Anchors | Brand: | HUIHAO CUSTOM |
|---|---|---|---|
| Material: | Stainless Steel | Head Diameter: | 22mm |
| Application: | To Fasten Insulation Blankets | Head Thickness: | 1mm |
| Customization: | Supported | Pin Diameter: | 14 Gauge |
| Samples: | Supported | Length: | 4-1/2" / 114mm |
| High Light: | Stainless Steel Lacing Anchors,Round Head Lacing Anchors,4-1/2" Stainless Steel Lacing Anchors |
||

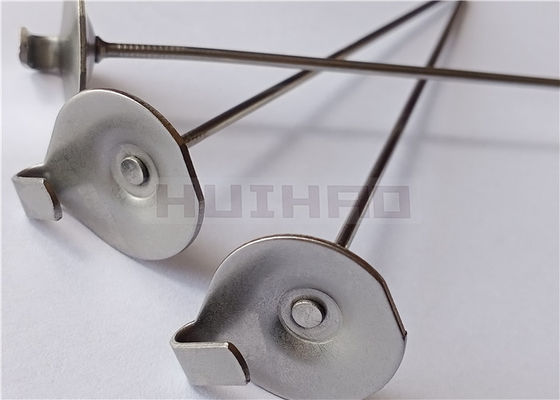

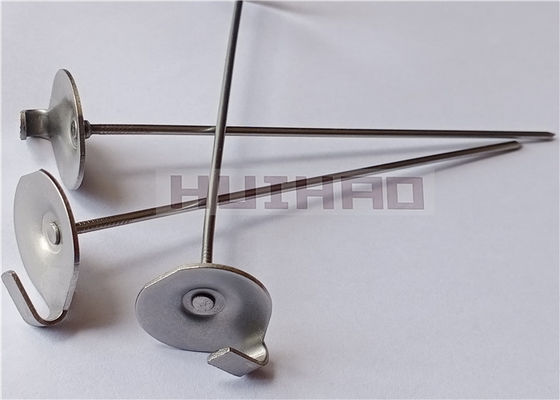

This 4-1/2" stainless steel lacing anchors are used for the fabrication of removable insulation
blankets.
| Item | 4-1/2" Stainless Steel Lacing Anchors |
| Brand | HUIHAO CUSTOM |
| Usage | For the fabrication of removable insulation blankets |
| Material | Stainless Steel |
| Base Size | 22mm |
| Base Thickness | 1.0mm |
| Nail Diameter | 14 Gauge / 2.0mm |
| Nail Length | 4-1/2" / 114mm |
| Self Locking Washer Material | Stainless Steel |
| Self Locking Washer Size | 25mm |
| Self Locking Washer Thickness | 0.4mm |
 |
|
It's consisted of a pin and a tabbed, or hooked washer.
Stainless steel is the more popular material, but it's also available in mild steel.
Stamped "no ab" to denote "no asbestos", the tab head is 7/8" in diameter.
The nail diameter can be 12 gauge or 14 gauge etc.
The nail length can be 1-1/2", 2-1/2", 4-1/2" etc.
|
Item: Stainless Steel Lacing Anchors Material: stainless steel Head Diameter: 7/8", 22mm Hook Size: 5x11mm Head Thickness: 1.0mm Pin Diameter: 14Gauge, 2.0mm Pin Length: as your request
|
|
Item: Stainless Steel Lacing Anchors Material: stainless steel Head Diameter: 7/8", 22mm Head Thickness: 1.0mm Hook Size: 5x11mm Pin Diameter: 12Gauge, 2.7mm Pin Length: as your request
|
|
Item: Self Locking Washers Material: stainless steel Diameter: 25mm Thickness: 0.4mm Usage: to secure stainless steel lacing anchors |
1: prepare the insulation blanket or removable cover
2: press the lacing anchor through the insulation
3: press the self locking washer into the pin to fasten the insulation
4: bend over or clip off the pin
5: install the insulation blanket or removable cover
6: lace the hook by lacing tie in order to fasten the insulation.
|
stainless steel lacing anchors are widely used for fixing: |
|
|
|
1. 250pcs/500pcs/1000pcs per carton according to the insulation pin size.
2. 48 cartons per pallet.
3. as your requirement.
