Product Details:
|
| Product Name: | Cup Head Stud Welding Insulation Pins | Brand: | HUIHAO CUSTOM |
|---|---|---|---|
| Material: | Carbon Steel | Base Size: | 25mm Or 30mm Is Standard |
| Surface: | Copper Plated, Galvanized | Nail Diameter: | 1.8mm, 2.0mm, 2.7mm, 3.0mm, 3.4mm |
| Samples: | Support | Nail Length: | As Your Requirement |
| High Light: | Capacitor Discharge Stud Welding Insulation Pins,Stud Welding Insulation Pins,4" Stud Welding Insulation Pins |
||
Description Of The Capacitor Discharge Stud Welding Insulation Pins With Cup Head:

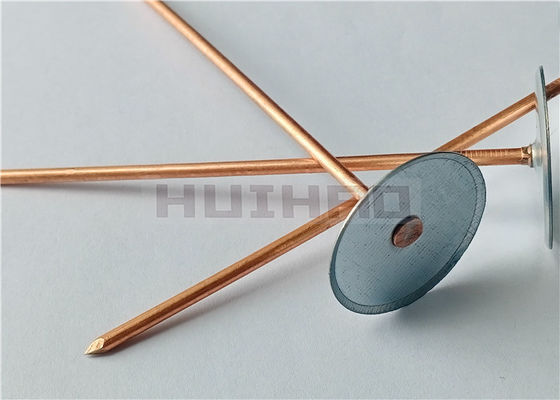

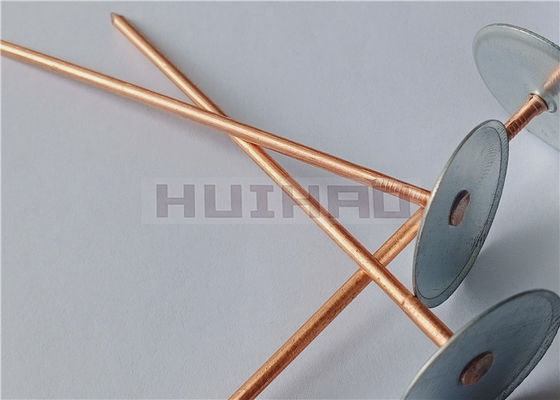

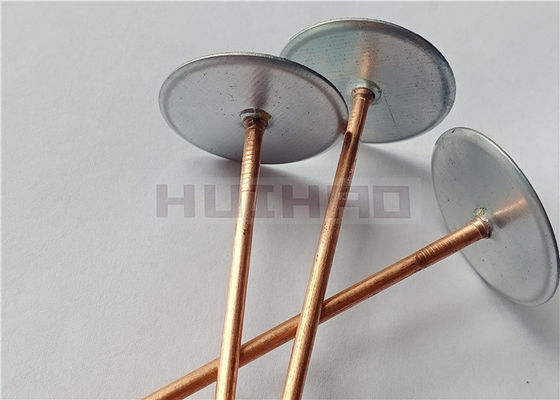

Capacitor Discharge Stud Welding Insulation Pins with Cup Head are used to fasten insulation
materials onto steel duct work or other steel surfaces.
The cup head stud welding insulation pins are welded to the metal after they pierce through
the insulaton and make contact with the surface.
A Capacity Discharge Stud Welding Machine (CD) is necessary for use with these pins.
Pins have a paper washer or can be plastic coated to prevent sparking caused by FRK paper.
| Item | Capacitor Discharge Stud Welding Insulation Pins With Cup Head | |||
| Brand | Huihao Custom | |||
| Material | Mild steel | |||
| Plating | Zinc coating is standard for nails | Zinc coating is standard for the head | ||
| Copper coating is standard for nails | ||||
| Bevel | Head edge is beveled to prevent cutting of insulation material | |||
| Head with paper | Available, for welding through aluminum foil faced insulation materials | |||
| Nail with tubes | Available, for welding through tin foil faced insulation materials | |||
| Head Size | 1-1/2" (38mm), 1-3/16" (30mm), 1" (25mm) etc. | |||
| Head Thickness | 0.5mm | |||
| Nail Diameter | 0.135" (3.4mm), 0.106"(2.7mm), 0.08"(2.0mm) etc. | |||
| Nail Length | as your request | |||
|
|
Item: Stud Welding Insulation Pins Base Material: Galvanized Steel Base Size: 30mm Nail Material: Galvanized Steel Nail Diameter: 2.7mm Nail Length: 25mm
If special requirement for the size and material, it could be customized according to your requirement.
|
 |
Item: Stud Welding Insulation Pins Base Material: Galvanized Steel Base Size: 30mm Nail Material: Copper Coated Mild Steel Nail Diameter: 2.7mm Nail Length: 105mm
If special requirement for the size and material, it could be customized according to your requirement. |
|
Item: Stud Welding Insulation Pins Paper Washers Base Material: Galvanized Steel Base Size: 30mm Nail Material: Copper Coated Mild Steel Material Nail Diameter: 2.7mm Nail Length: 105mm
If special requirement for the size and material, it could be customized according to your requirement. |
Cup Head Stud Welding Insulation Pins are widely accepted as labor-saving fasteners in
the thermal and acoustic insulation markets for use in industrial and commercial applications.
|
1. 2000 pcs / 3000 pcs/ 5000 pcs per carton 2. 36 cartons per pallet
3. or according to your requirement.
|
|
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.
3. Can i get samples?
Yes, samples for quality confirm is supported.
4. Can you accept small orders?
Yes, for common size, we could accept small orders.
5. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.
