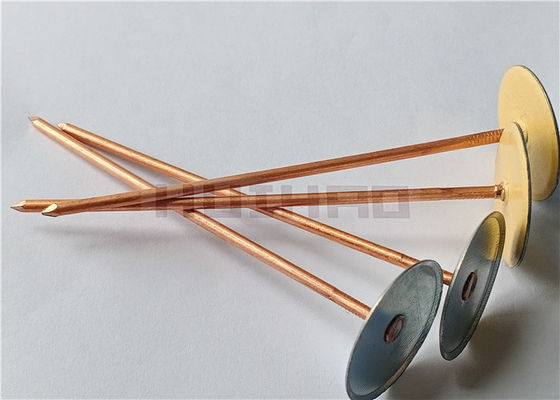

4" Galvanized Steel Cup Head Weld Pins With Paper Washer Used For Fastening Thermal Insulation

Large Image : 4" Galvanized Steel Cup Head Weld Pins With Paper Washer Used For Fastening Thermal Insulation

Product Details:

Place of Origin:	China
Brand Name:	HUIHAO CUSTOM
Certification:	ISO
Model Number:	Cup Head Weld Pins With Paper Washer

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Packaging Details:	1. 2000 pcs / 3000 pcs/ 5000 pcs per carton 2. 36 cartons per pallet 3. or according to your requirement.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union,paypal
Supply Ability:	5000000pcs per 30 days

Contact Now

4" Galvanized Steel Cup Head Weld Pins With Paper Washer Used For Fastening Thermal Insulation

Description

Product Name:	4" Galvanized Steel Cup Head Weld Pins With Paper Washer	Brand:	HUIHAO CUSTOM
Base Material:	Galvanized Steel	Base Size:	30mm
Nail Material:	Carbon Steel	Nail Diameter:	2.7mm (other Diameter Also Could Be Customized)
Nail Surface:	Copper Coated	Nail Length:	4" / 105mm (other Length Also Could Be Customized)
Usage:	Fasten Thermal Insulation	Samples:	Supported
Highlight:	Cup Head Weld Pins , Cup Head Weld Pins With Paper Washer , Cup Head Insulation Weld Pins

4" Galvanized Steel Cup Head Weld Pins With Paper Washer

Product Specifications

Attribute	Value
Product Name	4" Galvanized Steel Cup Head Weld Pins With Paper Washer
Brand	HUIHAO CUSTOM
Base Material	Galvanized Steel
Base Size	30mm (customizable)
Nail Material	Carbon Steel
Nail Diameter	2.7mm (customizable)
Nail Surface	Copper Coated
Nail Length	4" / 105mm (customizable)
Usage	Fasten thermal insulation
Samples	Available

Product Overview

Cup Head Weld Pins with Paper Washer are fabricated fasteners consisting of a weld pin and a staked retaining washer. These pins are typically installed using a capacitor discharge stud welder and are commonly used for securing insulation materials and as hook-less lacing anchors in fabricated blankets.

Technical Specifications

Feature	Specification
Material	Carbon Steel
Plating	Zinc coating (standard for nails and head), Copper coating (standard for nails)

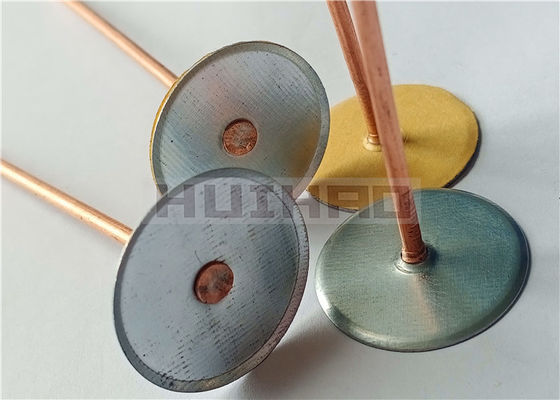

Bevel	Head edge is beveled to prevent cutting of insulation material

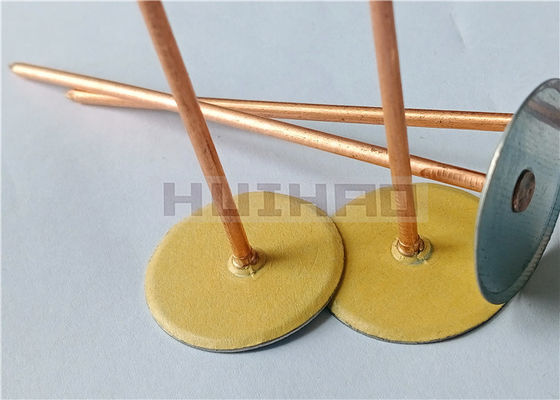

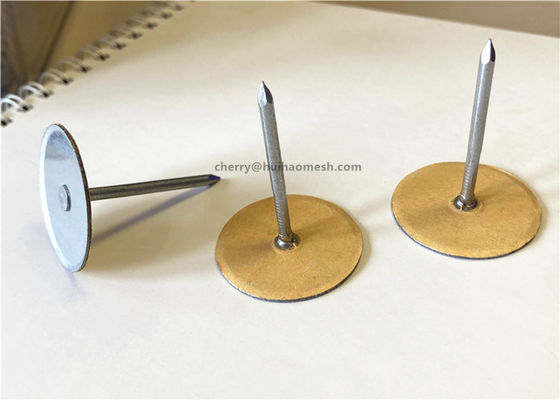

Head with paper	Available for welding through aluminum foil faced insulation
Nail with tubes	Available for welding through tin foil faced insulation
Head Size	Standard sizes: 38mm, 30mm, 25mm
Head Thickness	Standard: 0.5mm
Nail Diameter	Common sizes: 3.4mm, 2.7mm, 2.0mm
Nail Length	Customizable to requirements

Applications

Cup Head Weld Pins are widely used as labor-saving fasteners in thermal and acoustic insulation applications for industrial and commercial settings. The most common configuration features a mild steel weld nail with a galvanized-coated mild steel retaining washer.

Installation Process:

Hang the insulation material
Press cup head weld pins through the insulation
Weld in place using capacitor discharge stud welder

Recommended For	Pin Length Before Welding
1/2" insulation (all densities)	12.67mm
1" insulation (1-1/2"ib density)	17.63mm
1" foam	25.55mm
1" insulation (3ib densities)	23.72mm
1-1/2" insulation (all densities)	28.42mm
2" insulation (1-1/2"-2" ib density)	37.95mm
2" insulation (3ib densities)	48.77mm
3" insulation (all densities)	69.85mm
4" insulation (all densities)	95.00mm

Packaging Options

2000 pcs / 3000 pcs / 5000 pcs per carton
36 cartons per pallet
Custom packaging available upon request

Frequently Asked Questions

Are you a manufacturer or a trader?

We are a manufacturer located in Hebei province, China.

Do you support product customization?

Yes, we can customize material, surface finish, wire diameter, and length according to your requirements.

Can I get samples?

Yes, we can provide samples for evaluation.

Can you accept small orders?

Yes, we accept small orders for standard sizes.

How do you ensure product quality?

Confirm all details before quoting
Reconfirm specifications before production
Follow IATF 16949 Quality Management System standards
Provide production updates with videos and photos

What are your company advantages?

Competitive pricing as direct manufacturers
Automated production ensures on-time delivery
Products meet international quality standards
Comprehensive after-sales service

For pricing inquiries or samples, please contact us at cherry@huihaomesh.com
