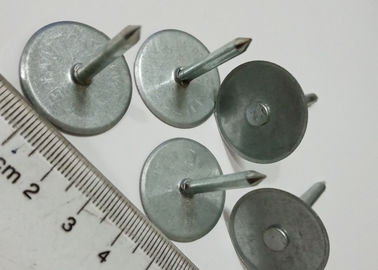

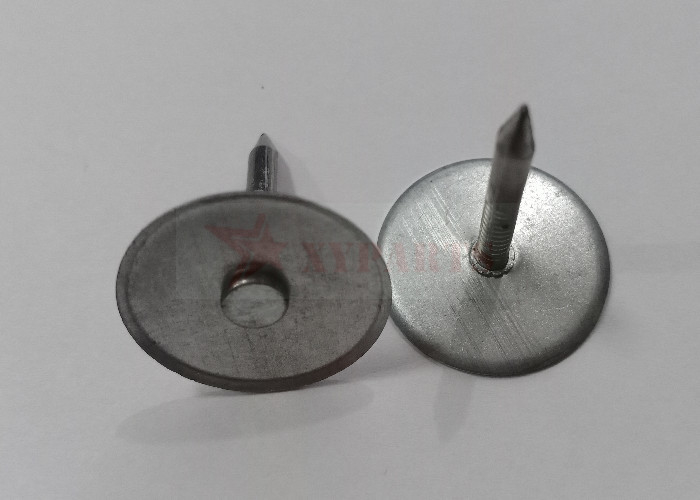

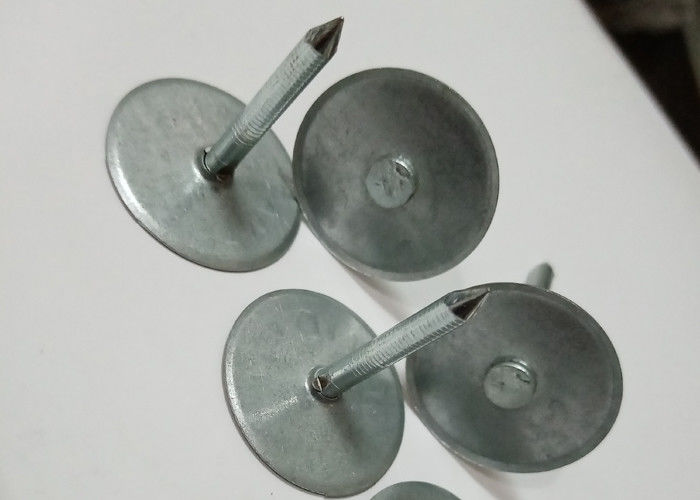

3.4mm Galvanized Steel Stud Welding Insulation Pins With Cup Head

Large Image : 3.4mm Galvanized Steel Stud Welding Insulation Pins With Cup Head

Product Details:

Place of Origin:	China
Brand Name:	huihao
Certification:	ISO
Model Number:	stud welding insulation pins

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Packaging Details:	1. 1000pcs per carton, 64 cartons per pallet. 2. to be your requirements.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union,paypal
Supply Ability:	5000000pcs per 30 days

Contact Now

3.4mm Galvanized Steel Stud Welding Insulation Pins With Cup Head

Description

Product Name:	Galvanized Steel Stud Welding Insulation Pins With Cup Head	Brand:	Huihao Custom
Material:	Low Carbon Steel Or Stainless Steel	Pin Dia:	0.135"
Surface Treatment:	Copper Plated, Galvanized	Base Dia:	1"
Samples:	Available	Length:	As Your Request
Highlight:	Stud Welding Insulation Pins , Cup Head Stud Welding Insulation Pins , Galvanized Steel Stud Welding Insulation Pins

3.4mm Galvanized Steel Stud Welding Insulation Pins With Cup Head

Product Specifications

Attribute	Value
Product Name	Galvanized Steel Stud Welding Insulation Pins With Cup Head
Brand	Huihao Custom
Material	Low carbon steel or stainless steel
Pin Diameter	0.135" (3.4mm)
Surface Treatment	Copper plated, galvanized
Base Diameter	1" (25mm)
Samples	Available
Length	Customizable to your requirements

Product Overview

Cup head weld pins are designed for securing insulation materials to duct work and other HVAC sheet metal configurations. These pins provide a reliable fastening solution for thermal and acoustical insulation in commercial, residential, and industrial buildings.

Technical Details

Pin Material: Low carbon steel or stainless steel
Pin Surface Finish: Galvanized (standard), copper plating available upon request
Base Material: Low carbon steel or stainless steel
Base Surface Finish: Galvanized (standard)
Base Edge: Beveled edge washer to prevent cutting of insulation material (flat edge washer also available)
Application: Compatible with Duro-Dyne auto feed resistance welding equipment
Head Diameter (WD): 1" (25mm)
Pin Diameter (D): 0.135" (3.4mm)
Length (L): Customizable to your requirements

Related Products

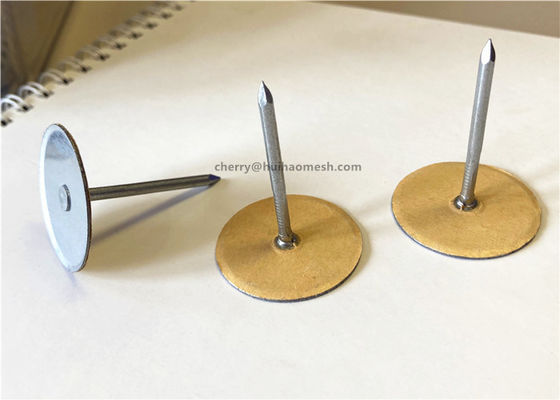

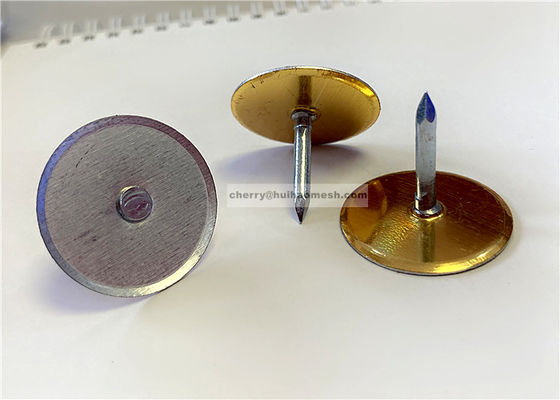

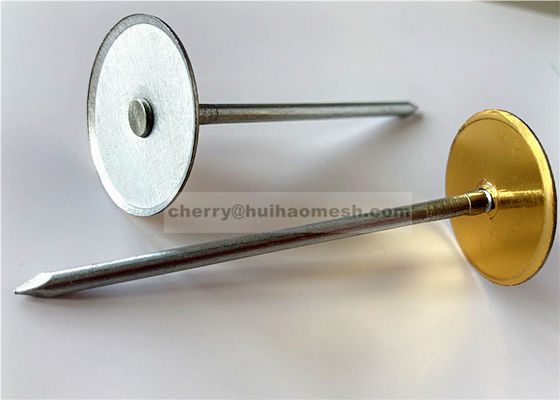

Item: Cup Head Weld Pins
Material: Mild Steel
Surface Finish: Galvanized washer with copper coated pin
Head Size: 30mm
Pin Diameter: 2.7mm
Pin Length: Customizable

Item: Cup Head Weld Pins
Material: Mild Steel
Surface Finish: Galvanized
Head Size: 30mm
Pin Diameter: 2.7mm
Pin Length: Customizable

Item: Cup Head Weld Pins
Material: Mild Steel
Surface Finish: Galvanized
Head Size: 30mm
Head Thickness: 0.4mm
Pin Diameter: 3.4mm
Pin Length: Customizable

Item: Cup Head Weld Pins
Material: Mild Steel
Surface Finish: Galvanized
Head Size: 30mm
Head Thickness: 0.4mm
Pin Diameter: 3.4mm
Pin Length: Customizable

Applications

Cup head weld pins are labor-saving fasteners widely used in thermal and acoustical insulation applications for commercial, residential, and industrial buildings. The pins are welded to metal surfaces after piercing through insulation materials, requiring a capacity discharge stud welding machine (CD) for installation.

Frequently Asked Questions

Are you a manufacturer or trader?

We are the manufacturer and we sell what we make.

Do you support product customization?

Yes, the material, size, and length can all be customized according to your requirements.

Can you accept small orders?

Yes, for common sizes, we can accept small orders.

Can I get samples?

Yes, we can send you samples.

What are your advantages for the cup head weld pins?

Competitive price: We sell what we manufacture directly
Excellent quality: Our products meet international standards
Good after-sale service: We provide comprehensive support for each order
Consistent performance: Our cup head weld pins deliver reliability in price, quality, and delivery service

For pricing inquiries or sample requests, please contact us at cherry@huihaomesh.com. Our cup head weld pins are manufactured with high quality standards and we welcome your inquiries.
