3x30mm Stainless Steel Welded Rings Blanket Insulation Fasteners For Pump Thermal And Acoustic Protection

3x30mm Stainless Steel Welded Rings Blanket Insulation Fasteners For Pump Thermal And Acoustic Protection
3x30mm Stainless Steel Welded Rings Blanket Insulation Fasteners For Pump Thermal And Acoustic Protection 3x30mm Stainless Steel Welded Rings Blanket Insulation Fasteners For Pump Thermal And Acoustic Protection 3x30mm Stainless Steel Welded Rings Blanket Insulation Fasteners For Pump Thermal And Acoustic Protection 3x30mm Stainless Steel Welded Rings Blanket Insulation Fasteners For Pump Thermal And Acoustic Protection 3x30mm Stainless Steel Welded Rings Blanket Insulation Fasteners For Pump Thermal And Acoustic Protection 3x30mm Stainless Steel Welded Rings Blanket Insulation Fasteners For Pump Thermal And Acoustic Protection 3x30mm Stainless Steel Welded Rings Blanket Insulation Fasteners For Pump Thermal And Acoustic Protection 3x30mm Stainless Steel Welded Rings Blanket Insulation Fasteners For Pump Thermal And Acoustic Protection

Large Image :  3x30mm Stainless Steel Welded Rings Blanket Insulation Fasteners For Pump Thermal And Acoustic Protection

Product Details:
Place of Origin: China
Brand Name: Huihao
Certification: ISO
Model Number: stainless steel welded rings
Payment & Shipping Terms:
Minimum Order Quantity: 10000 pcs
Packaging Details: pp bag + paper carton + wood pallet
Delivery Time: 15 days after the payment
Payment Terms: L/C,T/T,Western Union,Paypal
Supply Ability: 100000 pcs per 15 days

3x30mm Stainless Steel Welded Rings Blanket Insulation Fasteners For Pump Thermal And Acoustic Protection

Description
Name: 3x30mm Stainless Steel Welded Rings Blanket Insulation Fasteners Material: Stainless Steel
Type: Welded Shape: Round
Wire Diameter: 3mm Ring Diameter: 30mm
Application: To Secure Removable Insulation Blanket Customization: Supported
Highlight:

3x30mm stainless steel welded rings

,

oem stainless steel welded rings

,

insulation lacing anchor welded rings steel

3x30mm Stainless Steel Welded Rings Blanket Insulation Fasteners For Pump Thermal And Acoustic Protection

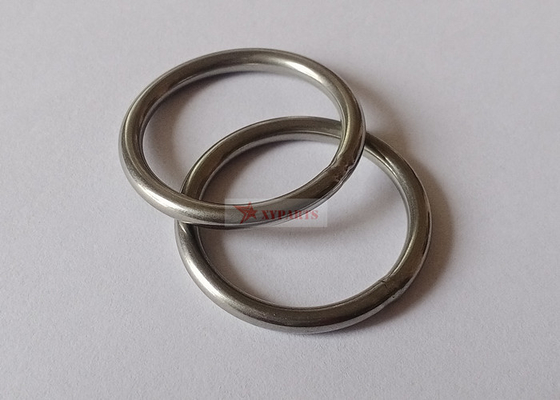

Description Of Stainless Steel Welded Rings:


HUIHAO Hardware could manufacture welded type and non-welded type stainless steel lacing rings. Stainless steel lacing rings could be used with stainless steel lacing washers and lacing wires to fasten insulation materials.

3x30mm Stainless Steel Welded Rings Blanket Insulation Fasteners For Pump Thermal And Acoustic Protection 0


Item: Stainless Steel Welded Rings

Shape: round

Type: welded

Material: stainless steel 304

Wire diameter: 3mm

Ring diameter: 30mm


Common Size Of The Stainless Steel Welded Rings:


Wire diameter inter diameter SWL(KG) BL(KG)
3MM 15MM-40MM 162 650
4MM 20MM-40MM 250 1000
5MM 25MM-65MM 500 2000
6MM 25MM-90MM 800 2700
8MM 30MM-100MM 1250 3200
9MM 30MM-90MM 1500 5000
10MM 40MM-100MM 2125 6200
12MM 50MM-140MM 2500 10000
13MM 55MM-160MM 2875 11500


How To Install The Stainless Steel Welded Rings:


Stainless steel welded rings could be used with lacing washers and lacing wires for securing

and tying removable/reuseable insulation blankets or pads.

3x30mm Stainless Steel Welded Rings Blanket Insulation Fasteners For Pump Thermal And Acoustic Protection 1


Application Of The Stainless Steel Welded Lacing Rings:


stainless steel material welded lacing rings are wildy used for fixing:

  • exhaust insulation blankets

  • fabric expansion joints

  • temptec exhaust blankets

  • mat insulation

  • thermal insulation covers

  • cooling insulation covers

  • heat insulatiuon covers

  • freeze protection cover

  • removable insulation covers

  • tank insulation cover

  • flanhe leak insulation covers

  • offshore production cover

  • heat-shield insulation blankets

  • removable insulation jacket


3x30mm Stainless Steel Welded Rings Blanket Insulation Fasteners For Pump Thermal And Acoustic Protection 2


Package Of The Stainless Steel Welded Lacing Rings:


pp bags + carbons + pallet
or accoding requirement
500pcs per pp bag
4 bogs per carton
carton size: 28x29x30cm


3x30mm Stainless Steel Welded Rings Blanket Insulation Fasteners For Pump Thermal And Acoustic Protection 3


FAQ Of Huihao Hardware Mesh Product Limited.


1. Are you a factory or a trader?
We have our own factory and international trading company
2. Do you support product customization?
Yes, the material, the size, and the package all could be customized according to your special need.

3. How can I receive a quotation?
Please send us your product drawings or picture information via email, and we will provide
you with a product quotation within 2 working days!
4. How can I get samples?
1) Standard products: We provide free samples under 5 dollars.
2) Custom products: We charge 1-3 times the unit price (based on product specifications).

3) Shipping methods are DHL, FedEX, TNT, UPS, EMS or others. You need to pay for shipping.

4)Samples will be sent as soon as payment is received.

5. What is your preferred payment item?
Samples are paid via paypal and T/T is 100% paid.
Bulk orders: T/T 30% prepaid, the balance should be paid before shipment.
