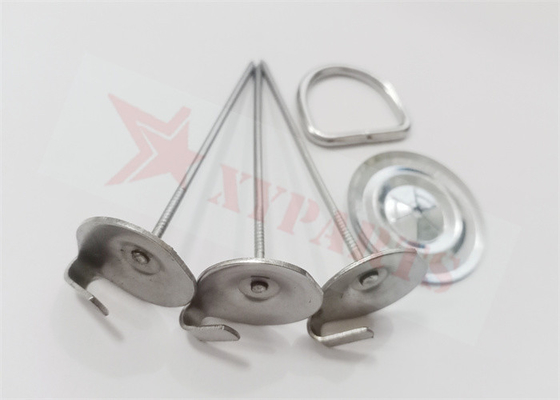

Product Details:
|
| Name: | Lacing Anchors Stainless Steel | Material: | Stainless Steel, |
|---|---|---|---|
| Head: | 22mm 30mm 20x25mm | Head Thickness: | 1mm |
| Pin Diameter: | 12ga Or 14ga Or As Standard | Length: | 2-1/2" Or 4-1/2" Or As Standard |
| Application: | To Secure Removable Insulation Pad | Customization: | Supported |
| High Light: | 2-1/2" insulation lacing anchors,12ga insulation lacing anchors,secure removable insulation pad lacing anchors |
||
* Stainless Steel is a popular material while this type lacing anchors is also made in mild steel

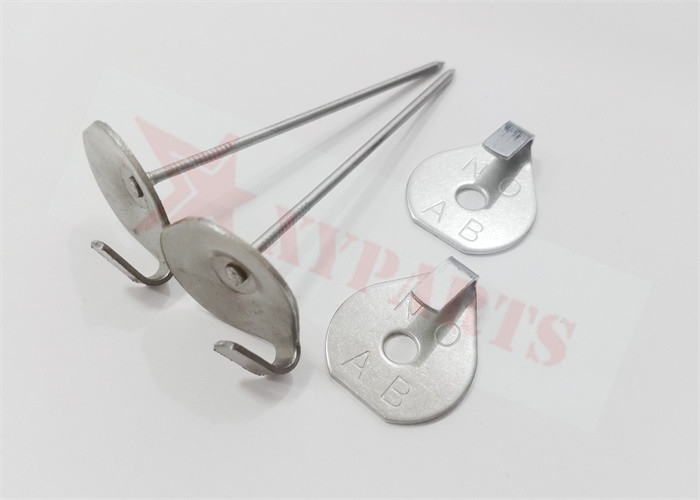

* Stamped "no ab" to denote 'no asbestos'
|
Item |
Material |
Head Diameter |
Head Thick |
Pin Diameter |
Pin Length |
Hook Size |
|
Mini round head |
SS |
7/8", 22mm |
1mm |
2.0mm,2.7mm |
63.5mm, 114mm |
5x11mm |
|
Round head |
SS |
30mm |
1mm |
2.0mm,2.7mm |
63.5mm, 114mm |
5x11mm |
|
Rectangle head |
SS |
20x25mm |
1mm |
2.0mm,2.7mm |
63.5mm, 114mm |
5x11mm |
 |
|
Huihao Hardware Mesh Product Limited manufactured the following listed insulation pins and
washers with good quality and price, if you have interest purchasing from China, our company
definitely is a good choice for you.
|
Insulation Pins |
Insulation Washers |
|
Perforated base insulation hangers |
Self locking washers |
|
Self stick insulation pins |
Dome cap washers |
|
Lacing anchors |
Insulation clips |
|
CD weld pins |
Plastic insulation anchors |
|
BI metallic pins |
Insulation discs |
|
Insulation fixing anchors |
Stainless steel O rings |
|
J hooks |
Stainless steel D rings |
|
Impaling clips |
|
|
Solar panel clips |
|
1: prepare the insulation blanket or removable cover
2: press the lacing anchor through the insulation
3: press the self locking washer into the pin to fasten the insulation
4: bend over or clip off the pin
5: install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.
|
stainless steel material lacing anchors are wildy used for fixing: |
|
|
|
250pcs/500pcs/1000pcs per carton according to the insulation pin size,
48 cartons per pallet.
