14 Gauge Stainless Steel Lacing Anchors Used To Secure Reusable Insulation Blanket

Large Image : 14 Gauge Stainless Steel Lacing Anchors Used To Secure Reusable Insulation Blanket

Product Details:

Place of Origin:	China
Brand Name:	Huihao
Certification:	iso
Model Number:	stainless steel lacing anchors

Payment & Shipping Terms:

Minimum Order Quantity:	10000 pcs
Packaging Details:	paper carton + wood pallet
Delivery Time:	15 days after the payment
Payment Terms:	L/C,T/T,Western Union,Paypal
Supply Ability:	500000 pcs per 15 days

Contact Now

14 Gauge Stainless Steel Lacing Anchors Used To Secure Reusable Insulation Blanket

Description

Name:	14 Gauge Stainless Steel Lacing Anchors	Head:	22mm
Material:	Stainless Steel	Head Thickness:	1mm
Application:	To Fix Insulation Blanket	Pin Diameter:	14ga
Customization:	Supported	Length:	2-1/2" Or 4-1/2" Or As Requested
Highlight:	Stainless Steel Lacing Anchors , 14 Gauge Stainless Steel Lacing Anchors , Stainless Steel Lacing Anchors For Removable Blanket

14 Gauge Stainless Steel Lacing Anchors Used To Secure Reusable Insulation Blanket

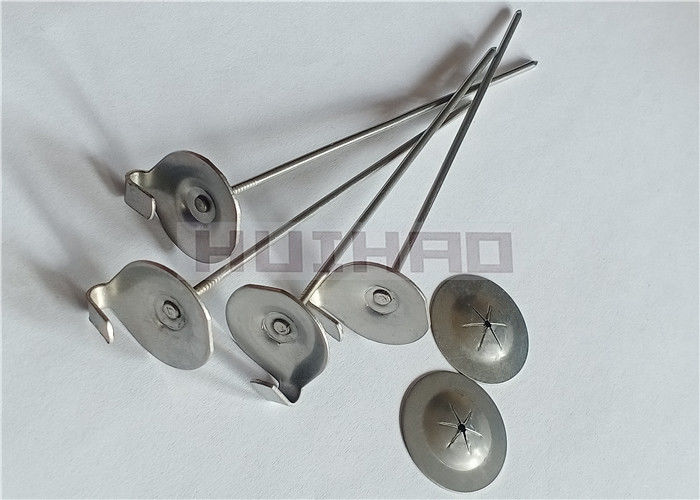

Description of stainless steel lacing anchors:

Stainless steel lacing anchors are widely used to secure the removable and reusable insulation blankets, covers, joints. Removable and reusable insulation blankets are widely used for the thermal insulation of pipelines and equipments in the petrochemical, chemical, power, pharmaceutical, and food processing industries.

If you are in need of the blanket insulation fasteners, please feel free to ask me a price or a sample, my email is cherry@huihaomesh.com

* Stainless steel is a popular material while this type lacing anchors is also made in mild steel

* Stamped "no ab" to denote 'no asbestos'

Item: Mini round head stainless steel lacing anchors

Material: stainless steel

Head Diameter: 7/8", 22mm

Head Thickness: 1.0mm

Pin Diameter: 12Gauge, 2.7mm

14Gauge, 2.0mm

Pin Length: 2-1/2", 63.5mm

4-1/2", 114mm

Hook Size: 5x11mm

Special Size: could be customized

Item: Round head stainless steel lacing anchors

Material: stainless steel

Head Diameter: 30mm

Head Thickness: 1.3mm

Pin Diameter: 12Gauge, 2.7mm

14Gauge, 2.0mm

11Gauge, 3mm

Pin Length: 2-1/2", 63.5mm

4-1/2", 114mm

Hook Size: 5x11mm

Special Size: could be customized

Item: Rectangle head stainless steel lacing anchors

Material: stainless steel

Head Diameter: 20x25mm

Head Thickness: 1.0mm

Pin Diameter: 12Gauge, 2.7mm

14Gauge, 2.0mm

Pin Length: 2-1/2", 63.5mm

4-1/2", 114mm

Hook Size: 5x11mm

Special Size: could be customized

Related Products Of Stainless Steel Lacing Anchors:

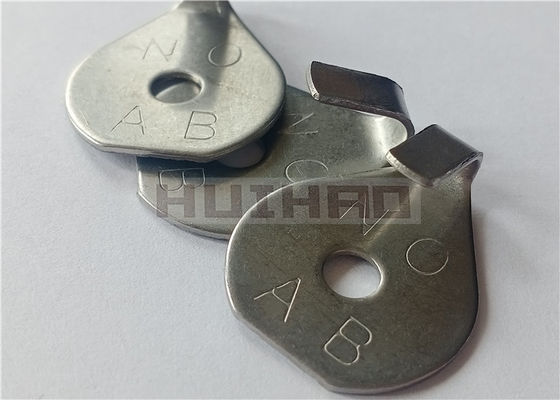

	Item: Stainless Steel Lacing Hooks With Two Hole Material: Stainless Steel Size: 7/8" / 22mm Thickness: 1.0mm
	Item: Stainless Steel Lacing Hooks With One Hole Material: Stainless Steel Size: 7/8" / 22mm Thickness: 1.0mm

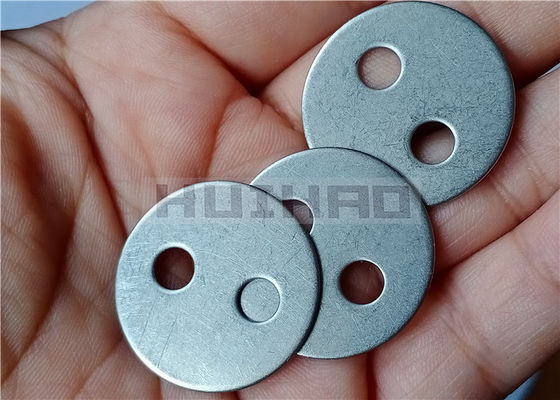

	Item: Stainless Steel Lacing Washers Material: Stainless Steel Size: 1" / 25mm Thickness: 1.0mm
	Item: Stainless Steel Lacing Washers Material: Stainless Steel Size: 1" / 25mm Thickness: 0.4mm
	Item: Stainless Steel Lacing Rings Material: Stainless Steel Wire Diameter: 3mm Size: 25x30mm
	Item: Stainless Steel Lacing Rings Material: Stainless Steel Wire Diameter: 3mm Size: 30mm

How To Install The Stainless Steel Lacing Anchors:

1: prepare the insulation blanket or removable cover
2: press the lacing anchor through the insulation
3: press the self locking washer into the pin to fasten the insulation
4: bend over or clip off the pin
5: install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.

14 Gauge Stainless Steel Lacing Anchors Used To Secure Reusable Insulation Blanket 9

Application Of The Stainless Steel Lacing Anchors:

stainless steel lacing anchors are widely used for fixing:
exhaust insulation blankets fabric expansion joints temptec exhaust blankets mat insulation thermal insulation covers cooling insulation covers heat insulatiuon covers	freeze protection cover removable insulation covers tank insulation cover flanhe leak insulation covers offshore production cover heat-shield insulation blankets removable insulation jacket

Package Of The Stainless Steel Lacing Anchors:

250pcs/500pcs/1000pcs per carton according to the insulation pin size,

48 cartons per pallet.

14 Gauge Stainless Steel Lacing Anchors Used To Secure Reusable Insulation Blanket 10
