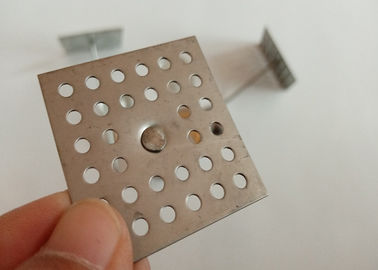

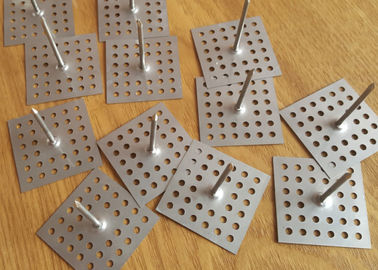

Product Details:
|
| Product Name: | Perforated Base Insulation Hangers | Type: | Perforated Base Type |
|---|---|---|---|
| Material: | Stainless Steel , Galvanized Steel, Aluminum | Application: | Fixing Rock Wool,Sound Absorbing Fabrics |
| Pin Length: | 15mm-200mm In Common | Pin Thickness: | 2.7mm,3mm |
| Base Plate: | 50x50 ,40x40mm | ||
| High Light: | 50x50mm perforated base insulation hangers,Stainless Perforated Base Insulation Hangers,15mm Perforated Base Insulation Hangers |
||
1. Grade: SUS201,SUS304,SUS316, galvanized steel,aluminum
2. Standard: DIN 315
3. Certification: ISO9001, SGS
|
Product Name
|
Insulation anchor Pins |
|
Material
|
stainless steel, galvanized dteel, aluminum |
|
base size
|
30mm,40mm,50mm |
|
base thickness
|
0.4mm-0.5mm |
|
pin length
|
15mm-180mm |
|
pin diameter
|
2.0mm-3mm |
|
washer diameter
|
25mm-50mm |
|
washer thickness
|
0.3mm-0.6mm |

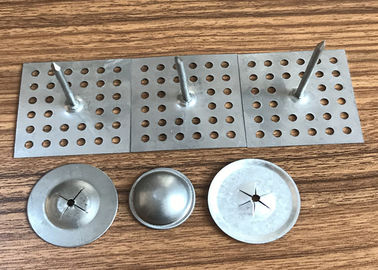

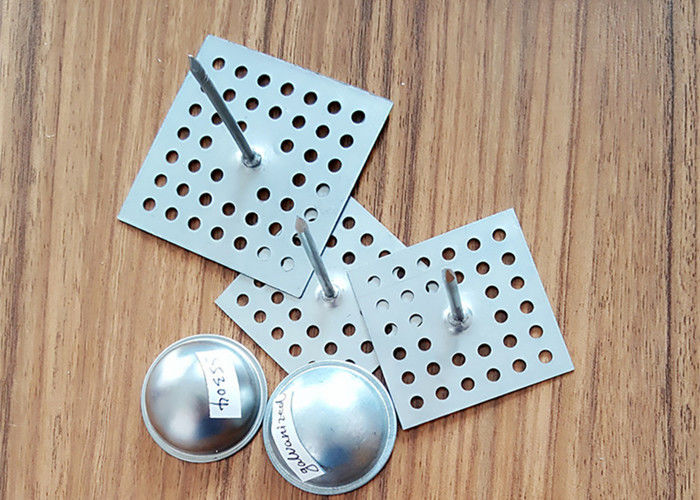

Dome cap washers are designed to be used where appearance and safety are factors when installing insulation, or fabricating blankets or pads. The caps are used to cover the nail point on weld pins, hangers, lacing anchors & quilt pins.
Insulation pin, Aluminum insulation pin, Self-adhesive insulation pin ,Insulation anchor Pins
Self-adhesive insulation pin is exclusively used for fixing adiabatic materials in ducts of air-conditioner, for glass-wool and rock-wool in soundproofing works,and for the duct-lining.
Exclusively used for fixing adiabatic materials in ducts of air-conditioner, for glass-wool and rock-wool in soundproofing works, and for the duct-lining
Insulation Fixing Pins is with high penetration strength with all types of thermal insulation boards, suitable for brick and conrete walls.
·Suitable for all kinds of wall
·High pull-off strength for a higher security of the system
·Low thermal conduction addition value to avoid thermal bridge
·Galvanized layer on the steel nail to protect the nail
