2.7mm Stud Welding Pins

Large Image : 2.7mm Stud Welding Pins

Product Details:

Place of Origin:	China
Brand Name:	Huihao
Certification:	ISO9001-2015
Model Number:	Cup Head Weld Pins

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Packaging Details:	pack in carton or bucket per customer requirement 20GP container can pack 3000000PCS 40HQ container can pack 6000000PCS
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union,PAYPAL
Supply Ability:	300000pcs per 15 days

Contact Now

2.7mm Stud Welding Pins

Description

Material:	Galvanized Steel Is Standard	Finished:	Copper Coating Or Galvanized Steel
Pin Diameter:	2.7mm / 12GA	Head Diameter:	30mm Or 38mm
Pin Length:	12mm-120mm	Sample:	Support
Highlight:	copper plated insulation pins , cd weld pins

Huihao Duct Work Cup Head Weld Pins With Welder Gun For HVAC System

>>> Introduction To Huihao Duct Work Cup Head Weld Pins With Welder Gun For HVAC System

1. Cupped head weld pins is insulation fastener which is used to fasten the insulation materials to sheet metal of air duct, other

heating, ventilating or air conditioning.

2. A fabricated part made up of a weld pin and a staked on retaining washer,cup head weld pin is usually applied with a capacitor

discharge stud welder.
3. The method of application is to place the insulation onto a metal surface, push the Cup Head weld pin through the insulation,

and weld affix (mount) the entire fabrication in one step. Now it is widely accepted as labor saving fasteners in the thermal and

acoustical insulation markets for use in industrial and commercial applications.

MECHANICAL PROPERTIES	Values available upon request	Values available upon request
PLATING	Standard Pin is Galvanized	Standard Washer is Galvanized
	Copper Plated is available
BEVEL	Washer edge is beveled to prevent cutting of insulation material
STAINLESS STEEL	Not standard, but available by special order
PAPER INSULATING WASHERS	Available, upon request, for welding through foil faced insulation

>>>Specification Of Huihao Duct Work Cup Head Weld Pins With Welder Gun For HVAC System

Mini Metal Cup Head Welding Pins

Material	Length	Pin Diameter	Head Diameter
Galvanized Steel	3/8"	12Ga (2.7mm)	1-3/16" (30mm)
Galvanized Steel	1/2"	12Ga (2.7mm)	1-3/16" (30mm)
Galvanized Steel	3/4"	12Ga (2.7mm)	1-3/16" (30mm)
Galvanized Steel	7/8"	12Ga (2.7mm)	1-3/16" (30mm)
Galvanized Steel	1"	12Ga (2.7mm)	1-3/16" (30mm)
Galvanized Steel	1-1/8"	12Ga (2.7mm)	1-3/16" (30mm)
Galvanized Steel	1-1/4"	12Ga (2.7mm)	1-3/16" (30mm)
Galvanized Steel	1-1/2"	12Ga (2.7mm)	1-3/16" (30mm)
Galvanized Steel	1-5/8"	12Ga (2.7mm)	1-3/16" (30mm)
Galvanized Steel	1-7/8"	12Ga (2.7mm)	1-3/16" (30mm)
Galvanized Steel	2"	12Ga (2.7mm)	1-3/16" (30mm)
Galvanized Steel	2-1/8"	12Ga (2.7mm)	1-3/16" (30mm)
Galvanized Steel	2-1/4"	12Ga (2.7mm)	1-3/16" (30mm)
Galvanized Steel	2-1/2"	12Ga (2.7mm)	1-3/16" (30mm)
Galvanized Steel	3"	12Ga (2.7mm)	1-3/16" (30mm)
Galvanized Steel	3-1/2"	12Ga (2.7mm)	1-3/16" (30mm)
Galvanized Steel	4"	12Ga (2.7mm)	1-3/16" (30mm)
Galvanized Steel	4-1/2"	12Ga (2.7mm)	1-3/16" (30mm)
Galvanized Steel	5"	12Ga (2.7mm)	1-3/16" (30mm)
Galvanized Steel	5-1/2"	12Ga (2.7mm)	1-3/16" (30mm)
Galvanized Steel	6"	12Ga (2.7mm)	1-3/16" (30mm)
Galvanized Steel	8"	12Ga (2.7mm)	1-3/16" (30mm)

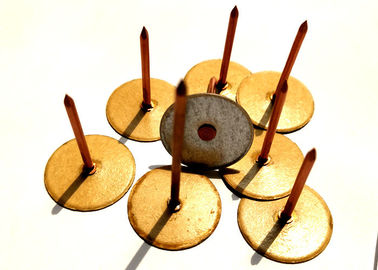

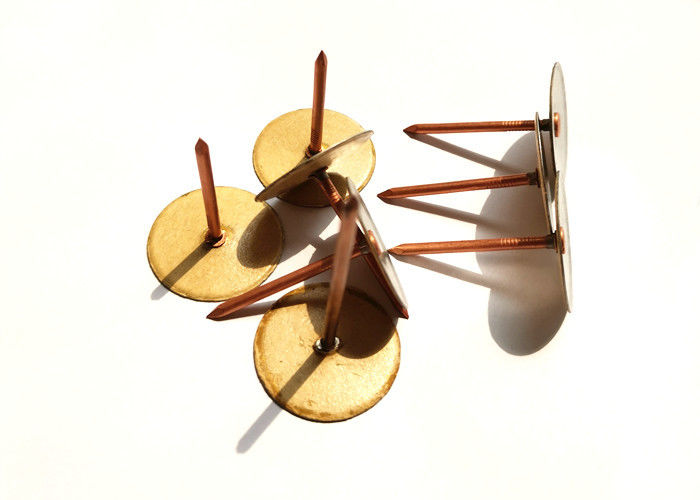

Images of Huihao Duct Work Cup Head Weld Pins With Welder Gun For HVAC System

2.7mm Stud Welding Pins 0

2.7mm Stud Welding Pins 1

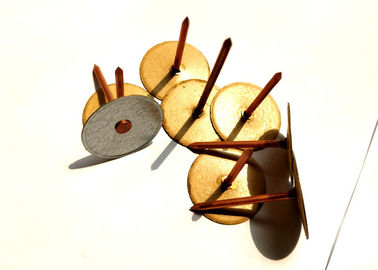

Application of Huihao Duct Work Cup Head Weld Pins With Welder Gun For HVAC System

1: Position insulation
2: Press cup head pin through insulation
3: Weld in place to complete installation

2.7mm Stud Welding Pins 2
