Tinted Color Glass Laminated Wire Mesh For Building Facade

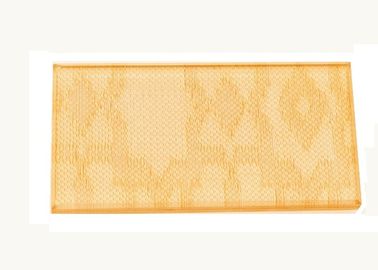

Large Image : Tinted Color Glass Laminated Wire Mesh For Building Facade

Product Details:

Place of Origin:	China
Brand Name:	HUIHAOKASITE
Certification:	ISO9001-2015
Model Number:	Glass Laminated Wire Mesh

Payment & Shipping Terms:

Minimum Order Quantity:	20square meters
Price:	USD45/M2
Packaging Details:	wooden box for Tinted Color Metal Fabric Decorative Laminated Glass
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union,paypal,alibaba
Supply Ability:	1000 square meters per 15 days

Contact Now

Tinted Color Glass Laminated Wire Mesh For Building Facade

Description

Name:	Tinted Color Metal Fabric Decorative Laminated Glass	Whole Thickness:	6mm
Glass Type:	White Tempered Glass	Film Type:	PVB
Interlayer:	Metal Fabric	Usage:	Cladding Applications
Highlight:	Decorative Laminated Glass , Metal Fabric Laminated Glass , tinted color laminated glass

Tinted Color Glass Laminated Wire Mesh For Building Facade

Attribute	Value
Name	Tinted Color Metal Fabric Decorative Laminated Glass
Whole thickness	6mm
Glass type	white tempered glass
Film type	PVB
Interlayer	metal fabric
Usage	cladding applications

Customization Services

Pattern design services, customization processing services, surface treatment services

Advantages of Metal Fabric Decorative Laminated Glass

Extremely high safety: The PVB interlayer withstands penetration from impact. Even if the glass cracks, splinters will adhere to the interlayer and not scatter. Provides much higher strength to resist shock, burglary, burst and bullets compared to other glass types.
Energy-saving building materials: PVB interlayer impedes the transmission of solar heat and reduces cooling loads.
Aesthetic enhancement: Metal fabric laminated glass with tinted interlayer beautifies buildings and harmonizes their appearance with surrounding views, meeting architectural demands.
Sound control: PVB interlayer effectively absorbs sound.
UV protection: The interlayer filters out ultraviolet rays, preventing furniture and curtains from fading.

Available PVB Colors: Clear, Green, Blue, Bronze, Grey, Milk, White, etc.

Available Glass Colors: Clear, extra clear, light & dark bronze, light & dark grey, light & dark blue, light & dark green, pink, etc.

Metal Fabric Decorative Laminated Glass Details

Name	Woven mesh fabric
Over thickness	0.4mm
Open area	0%
Weight	1.0kgs/square meter
Material	Stainless steel wire/copper wire
Wire diameter	0.18mm
Max width	3000mm
Hole type	Design pattern

Specifications

Material Options:

Copper wire weave mesh
Copper rope mesh
Copper laser cutting mesh

Glass Type Options:

Common laminated glass
Tempered laminated glass
Coated laminated glass
Low-e laminated glass
Silkscreen laminated glass
Bulletproof laminated glass
Fireproof laminated glass

Available Thickness Options:

3 + 0.38 + 3 mm
3 + 0.76 + 3 mm
4 + 0.38 + 4 mm
4 + 0.76 + 4 mm
5 + 0.38 + 5 mm
5 + 0.76 + 5 mm
6 + 0.38 + 6 mm
6 + 0.76 + 6 mm
8 + 0.76 + 8 mm
10 + 0.76 + 10 mm

Standard Size Options:

300 × 300 mm
1220 × 1830 mm
1500 × 2000 mm
1530 × 2520 mm
1830 × 2440 mm
2000 × 2500 mm
2140 × 3300 mm
2250 × 3600 mm
2800 × 7000 mm
3000 × 8000 mm
Custom sizes available

Structure of Metal Fabric Decorative Laminated Glass

Metal fabric decorative laminated glass is formed as a sandwich of 2 sheets of glass bonded together with PVB interlayer under heat and pressure. It can consist of two pieces of clear float glass bonded with color PVB, or color float glass bonded with clear PVB. While performance is nearly identical, color PVB is typically more cost-effective than color float glass. The optimal choice depends on your specific requirements.

Applications

Safety laminated glass is widely used in modern applications including:

Exterior applications: Windows and doors for offices, houses, shops, schools, and villas
Interior applications: Glass screens, partitions, stair railings, kitchen splashbacks
Furniture applications: Glass table-tops, glass shelves, glass cabinet doors
