12ga Diameter Insulation Hanger Pins , Perforated Base Insulation Pins 250mm Length

12ga Diameter 250mm Length Perforated Base Insulation Pins By Huihao Design

specification of perforated base insulation pins

features of perforated base insulation pins

• Use raw materials that meet international standards

• Rust-proof surface treatment, long service life

• CNC technology, small error range

• Smooth surface without burrs

• Scientific dimensional design, in line with mechanical standards

• Suitable for all kinds of wall

• High pull-off strength for a higher security of the system

• Low thermal conduction addition value to avoid thermal bridge

• Galvanized layer on the steel nail to protect the nail from alkali

common detials of the perforated base insulation pins

perforated base insulation pins is make by cnc machines, square punched base with soft wire nails. the surface treatment is

zinc coated or copper plated for mild steel materials. perforated base insulation pins common size as follows:

• 40mm x2.7mm
• 63.5mmx2.7mm
• 84mmx2.7mm
• 110mmx3.0mm
• 120mmx3.0mm
• 140mmx3.0mm

applications of perforated base insulation pins

It is fixed on the position where there is significant wind-suction-force or if the height is more than 20m or if the finishing coat is

tile etc.Exclusively used for fixing adiabatic materials in ducts of air-conditioner, for glass-wool and rock-wool in soundproofing

works, and for the duct-lining

how to choose the length of the perforated base insulation pins the below data is for reference:

• 1-5/8": Used for 1-1/2" .75# Fiberglass Duct Wrap
• 2-1/2": Used for 2" Fiberglass Rigid Board / Foam Board
• 4-1/2": Used for 4" Fiberglass Rigid Board / R-13
• 6-1/2": Used for R-19 Fiberglass Batt Insulation
• 9-1/2": Used for R-30 Fiberglass Batt Insulation
• 12-1/2": Used for R-38 Fiberglass Batt Insulation

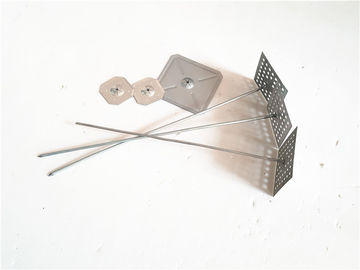

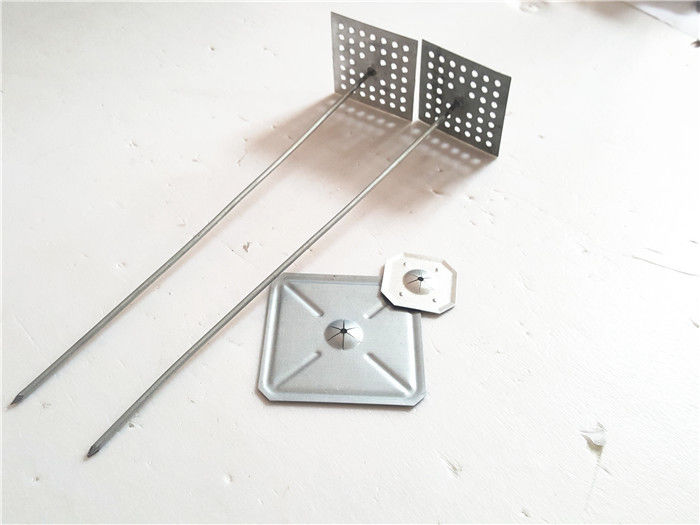

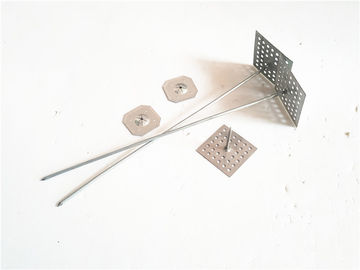

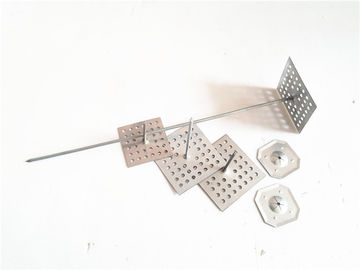

Images of perforated base insulation pins
