Product Details:
|
| NAME: | Cladding Woven Metals | Material: | Ss304/316 |
|---|---|---|---|
| Warp Diameter: | 1.2x2mm | Warp Pitch: | 17.5mm |
| Weft Diameter: | 2mm | Weft Pitch: | 5mm |
| Small Order: | Available | Sample: | Available |
| Highlight: | stainless steel wire cloth,monel wire mesh |
||
Overseas warehouse services, double clearing tax, door-to-door service,
mainly for the United States, Australia and Europe. Other areas are pending development.
1.pattern design support according to the application
2. frame design support according to the installation
3. surface treatments support , include PVDF, PVD, Spraying.
4. supply install accessories, include screw, wall anchor, track, bolt and others
5.Material: stainless steel, copper, bronze, brass, aluminum, aluminum alloy, etc.
6.Weave type: plain weave, twill weave, dutch weave, plain dutch weave, twill dutch weave, unique woven method, etc.
Specification of Cladding Woven Metals
________________________________________________________________________________
| ITEMS | HH-17.5X5 | ||
| Material | Stainless steel | Opening Area | 51% |
| Warp Diameter | 1.2mm×2mm | Mesh Thickness | 4.2mm |
| Warp Pitch | 17.5mm | Surface | clean &free oil |
| Weft Diameter | 2mm | Max High | 20000mm |
| Weft Pitch | 5mm | Max Wide | 4000mm |
| Weight | 6.15kgs/m2 | Application | Interior / Exterior |
details of Cladding Woven Metals
_________________________________________________________________________________
Architectural decorative metal mesh is made with super quality stainless steel, aluminum alloy, brass, copper or other alloy materials.
Metal wire mesh fabrics are now catching the eyes of modern designers
The architectural wire mesh benefits
The architectural wire mesh widely used in Exterior facades,Fence and gates,Decorative curtains,Terrace and corridors,
Staircases isolation screen,Floor covering fabrics,Wall coverings,Sunshades and canopies,Balustrades,Partition screens,
Infill panels,Elevator cabins screen

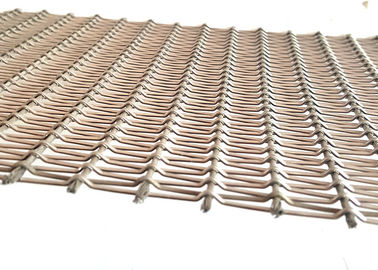

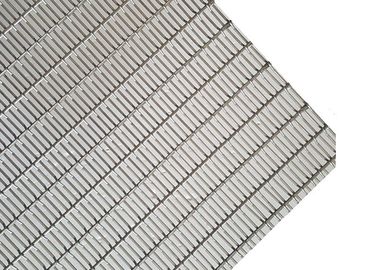

pictures of Cladding Woven Metals
_________________________________________________________________________________
 | | |
| stainless steel | pvd gold color | paint stainless steel |
