Product Details:
|
Material: | Ss304,316 | Width: | 4m |
---|---|---|---|
Length: | To Order | Thickness: | 7mm |
Custom: | Support And Fast | Small Order: | Available |
Sample: | Available | Surface Treatment: | Spraying, Pvd |
Highlight: | stainless steel wire cloth,monel wire mesh |
techincal supports of Stainless Steel Rope Mesh facades,Handrail balustrade Cable Rope Mesh Fabric
1.pattern design support according to the application
2. frame design support according to the installation
3. surface treatments support , include PVDF, PVD, Spraying.
4. supply install accessories, include screw, wall anchor, track, bolt and others
5.Material: stainless steel, copper, bronze, brass, aluminum, aluminum alloy, etc.
6.Weave type: plain weave, twill weave, dutch weave, plain dutch weave, twill dutch weave, unique woven method, etc.
1. specification of Stainless Steel Rope Mesh facades,Handrail balustrade Cable Rope Mesh Fabric
Material | Stainless steel | Opening Area | 60.6% |
Cable Diameter | 2.75mm×3 | Mesh Thickness | 10mm |
Cable Pitch | 68mm | Surface | free oil |
Rod Diameter | 4.5mm | Max High | 100m |
Rod Pitch | 14.5mm | Max Wide | 6000mm |
Weight | 10.9kgs/m2 | Application | Interior/exterior |
Material | Stainless steel | Opening Area | 62.5% |
Cable Diameter | 2.75mm×2mm | Mesh Thickness | 9.5mm |
Cable Pitch | 40mm | Surface | free oil |
Rod Diameter | 4mm | Max High | 6000mm |
Rod Pitch | 14.5mm | Max Wide | 60000mm |
Weight | 9.41kgs/m2 | Application | Interior/exterior |
Material | Stainless steel | Opening Area | 44% |
Cable Diameter | 1mm×4 | Mesh Thickness | 3.5mm |
Cable Pitch | 36mm | Surface | free oil |
Rod Diameter | 2mm | Max High | 6000mm |
Rod Pitch | 4mm | Max Wide | 120m |
Weight | 6.8kgs/m2 | Application | Interior/exterior |
Material | Stainless steel | Opening Area | 56.9% |
Cable Diameter | 2.5mm×5 | Mesh Thickness | 7mm |
Cable Pitch | 80mm | Surface | free oil |
Rod Diameter | 2mm | Max High | 100m |
Rod Pitch | 6mm | Max Wide | 6000mm |
Weight | 6.58kgs/m2 | Application | Interior/exterior |

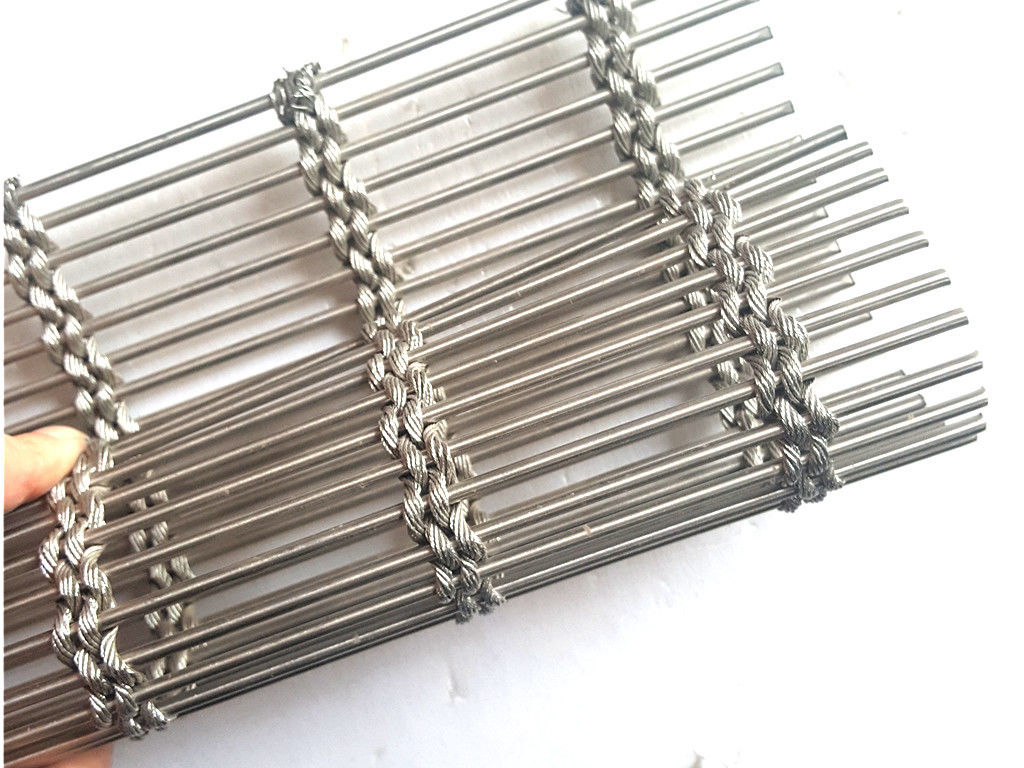

2 images of techincal supports of Stainless Steel Rope Mesh facades,Handrail balustrade Cable Rope Mesh Fabric
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
3 application of techincal supports of Stainless Steel Rope Mesh facades,Handrail balustrade Cable Rope Mesh Fabric
Primarily designed to cater to the requirements of interior decorations and architects, a wide range of techincal supports of
Stainless Steel Rope Mesh facades,Handrail balustrade Cable Rope Mesh Fabric is used to add a dramatic and eye
catching look in the interiors. Widely demanded for architectural decoration of hotels, residences, exhibition halls, museums
and other commercial places, these are easy to fabricate and shape. We offer these wire mesh screens in different wire
diameters, aperture and thickness to meet their individual requirements.
• Space divider. • Wall decoration. • Ceiling decoration. • Window curtain. • Handrail balustrade. • Elevator cab mesh. |
• Facade cladding. • Glass laminated wire. • Sunshade screen. • Security door. • elevator cabins screen. • Floor covering fabrics. |
• Wire mesh facades. • Shade screens. • Architecture ceilings. • Metal draperies for walls. • Partition and isolation screens. • Staircases isolation screen. |
