Expanded Metal PVDF Architectural Mesh Facade With Installation Frame

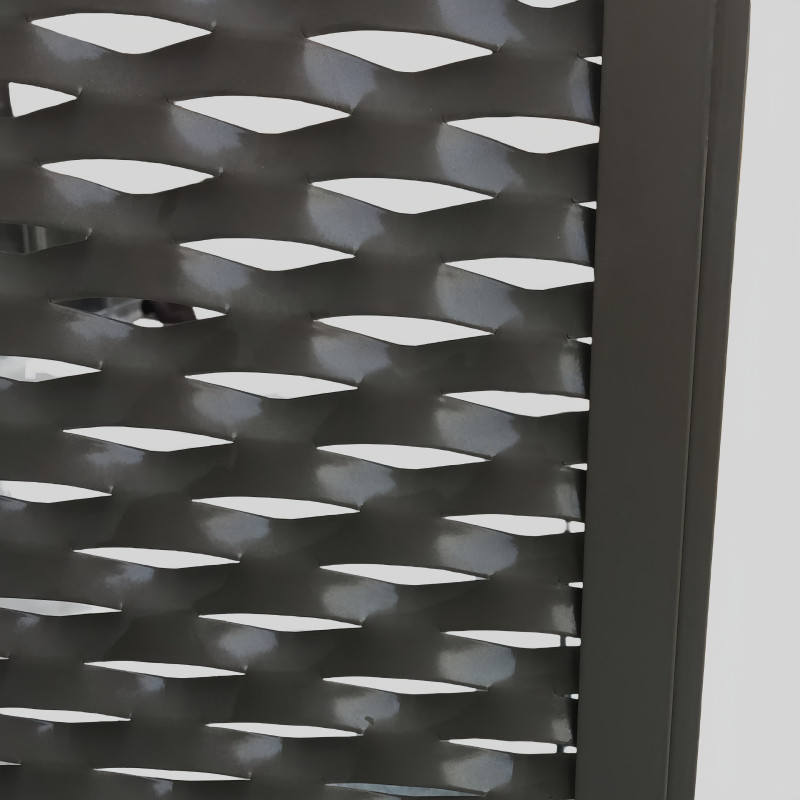

Large Image : Expanded Metal PVDF Architectural Mesh Facade With Installation Frame

Product Details:

Place of Origin:	China
Brand Name:	HUIHAOkasite
Certification:	ISO9001-2008
Model Number:	expanded metal screen

Payment & Shipping Terms:

Minimum Order Quantity:	1000square meters
Price:	USD36/PC
Packaging Details:	waterproof paper -wooden case -galvanised iron pallet
Delivery Time:	7 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	3000 square meters per 20 days

Contact Now

Expanded Metal PVDF Architectural Mesh Facade With Installation Frame

Description

Material:	Aluminum	Type:	Expanded Metal
Thickness:	3mm	Frame Type:	Hook Up Type
Pattern Aperture:	100x40mm	Surface Treatment:	Pvdf
Highlight:	laser cut metal screens , expanded metal mesh

Expanded Metal PVDF Architectural Mesh Facade With Installation Frame

Product Attributes

Attribute	Value
Material	Aluminum
Type	Expanded metal
Thickness	3mm
Frame type	Hook up type
Pattern aperture	100x40mm
Surface treatment	PVDF

Specifications of Hook Up Frame Expanded Metal Mesh

Long way	Short way	Stand width	Stand thickness	Steel weight/m²	Alu weight/m²	Total thickness	Open area	Common size WXL
100mm	40mm(15)	4mm	2mm	8.3kgs	2.9kgs	7mm	50%	1000x2000 1250x2500 1500x3000 2000x1600
100mm	40mm(15)	4mm	3mm	12.5kgs	4.3kgs	7mm	50%

3.0mm thick aluminum plate weighs 8kg per square plate, tensile strength 100-280N/mm²

Features of Hook Up Frame Expanded Metal Mesh

Light weight, good rigidity and high strength
Strong sound absorption performance and excellent decorative effect
Non-combustible, high strength and easy maintenance
Protects building structures effectively
PVDF fluorocarbon paint based on Kynar-500 and Hylur500 prevents fading for 50 years
Can be processed into various complex geometries including plane, arc and spherical shapes
Uniform coating with various color options
Resistant to staining and easy to clean and maintain
Convenient and quick installation
Factory-formed panels eliminate need for on-site cutting

Surface Treatment Options

Available in PVDF surface treatments including black, white, red, gold, grey and other custom colors.

Advanced electrostatic spraying technology ensures uniform paint adhesion with extensive color selection.

Fluorine coating film provides excellent self-cleaning properties and stain resistance.

Material Technical Specifications

Aluminum panel	AA5754A(ALMg3)
Modulus of elasticity (N/mm²)	70000
Panel tensile strength (N/mm²)	Rm≥220
0.2% Yield stress (N/mm²)	Rp0.2≥130
Elongation (EN485~2:1194)	A50≥8
Aluminum linear heat expansion	2.4mm//100℃

Product Image

Applications

Primarily used for fencing in highways, railways, airports, stations, service areas, bonded zones, open storage yards, and ports. Offers excellent durability, weather resistance, and aesthetic appeal while maintaining structural integrity.

Features include high strength, excellent visibility, easy installation, and low maintenance requirements. Ideal for security and decorative applications where both functionality and appearance are important.
