Spray Paint Tensile Frame Expanded Aluminum Mesh For Building Facades Panel

Spray Paint Tensile Frame Expanded Aluminum Mesh For Building Facades Panel
Spray Paint Tensile Frame Expanded Aluminum Mesh For Building Facades Panel
Spray Paint Tensile Frame Expanded Aluminum Mesh For Building Facades Panel Spray Paint Tensile Frame Expanded Aluminum Mesh For Building Facades Panel Spray Paint Tensile Frame Expanded Aluminum Mesh For Building Facades Panel Spray Paint Tensile Frame Expanded Aluminum Mesh For Building Facades Panel

Large Image :  Spray Paint Tensile Frame Expanded Aluminum Mesh For Building Facades Panel

Product Details:
Place of Origin: China
Brand Name: HUIHAO
Certification: ISO9001-2008
Model Number: Tensile Frame Expanded Aluminum Mesh
Payment & Shipping Terms:
Minimum Order Quantity: 200 square meters
Packaging Details: waterproof paper -wooden case -galvanised iron pallet
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 square meters per 20 days

Spray Paint Tensile Frame Expanded Aluminum Mesh For Building Facades Panel

Description
Material: Aluminum1100 Type: Expanded Metal Mesh
Thickness: 1.5mm, 2mm Width: Less Than 3 Meters
Frame Material: 2mm Aluminum 1100 Frame Width: 30mm
High Light:

laser cut metal screens

,

expanded metal mesh



Spray Paint Tensile Frame Expanded Aluminum Mesh For Building Facades Panel



1. specification of Tensile Frame Expanded Aluminum Mesh



Tensile Frame Expanded Aluminum Mesh is a metal metal decoration network, also known as expansion mesh sparse

version. A metal plate as a raw material, by punching, stretching and processed into a diamond-shaped hole of the plate

-shaped mesh.



long way

short way

stand width

stand thickness

alu weight/m2

open area

common size

(W-LWDxL-SWD)

total thickness

62.5mm

20mm

7.5mm

1.5mm

3kgs

36.2%

1000x2000mm

1250x2500

1500x3000

2000x1600

2500x1600

10mm

62.5mm

20mm

7.5mm

2mm

4kgs

36.2%

62.5mm

20mm

7.5mm

3mm

6kgs

36.2%





Tensile Frame Expanded Aluminum Mesh frame type- U TYPE- 2MMX30MMX30MM



2.application of Tensile Frame Expanded Aluminum Mesh

  • Sunscreens

  • Building facades

  • Security walls and partitions

  • Walls, ceilings, floors and doors

  • Grilles

  • Walkway handrails

  • Infill panels

  • Shelving and room dividers



3.Architectural Expanded Metal Services



In addition to our huge selection of stock and custom products, we offer a wide range of architectural expanded metal services.

Below are a few examples of our custom fabrication services:

  • Shearing

  • Cut to length

  • Welding

  • Painting

  • Powder coating

  • Anodizing

  • Forming

  • Roller-leveling

4. material technical of Tensile Frame Expanded Aluminum Mesh



Aluminum panel
AA5754A(ALMg3)
Modulus of elasticity (N/mm2)
70000
Panel tensile strength (N/mm2)
Rm≥220
0.2% Yield stress (N/mm2)
Rp0.2≥130
Elongation (EN485~2:1194)
A50≥8
Aluminum linear heat expansion
2.4mm//100℃

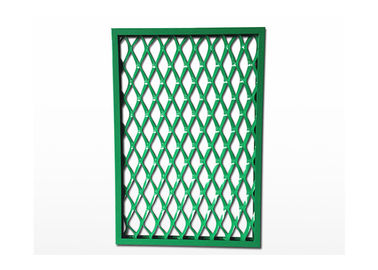

4.images of Tensile Frame Expanded Aluminum Mesh



Spray Paint Tensile Frame Expanded Aluminum Mesh For Building Facades Panel 0



5. project of Tensile Frame Expanded Aluminum Mesh



Spray Paint Tensile Frame Expanded Aluminum Mesh For Building Facades Panel 1
