Product Details:
|
Product Name: | Capacitor Discharge Weld Pins | Material: | Mild Steel ,stainless Steel ,aluminum |
---|---|---|---|

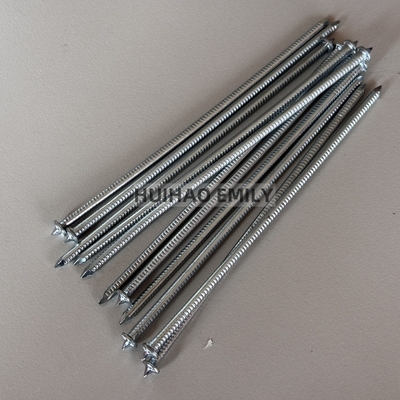

Surface Treatment: | Copper Coated Or Galvanized Steel ,polish | Pin Diameter: | 1mm-5mm |
Length: | 10mm-240mm | Washer Type: | Dome Caps ,self Locking Washer |
Type: | Soft Steel Nails | Sample: | Support |
Highlight: | cd weld pins,threaded stud welder |
Materal: mild steel,302HQ stainless steel and aluminum

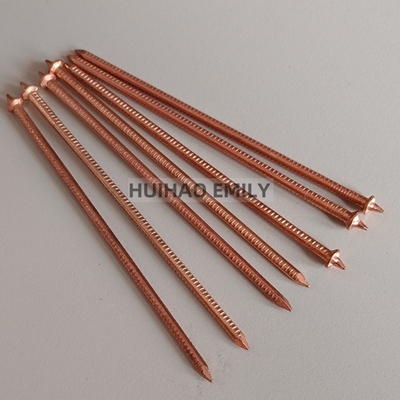

Plating:mild steel pins are copper plated

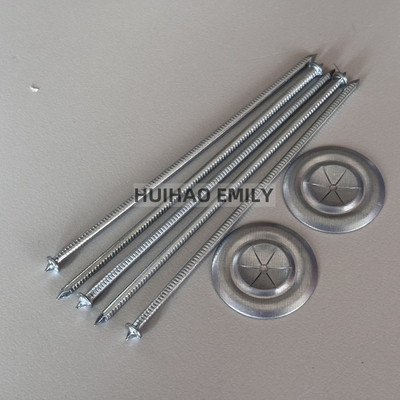

washers:various types of steel, stainless steel and aluminum self locking washers
standard nail point is used for most applications, nut also available

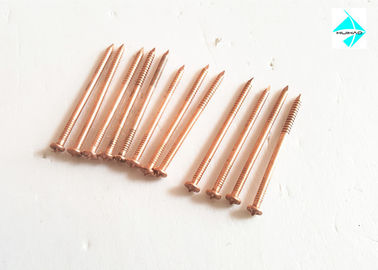

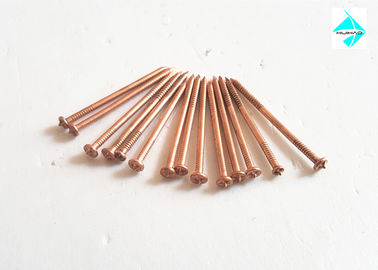

The Capacitor Discharge Weld Pins is a Low Carbon Steel, Stainless Steel or Aluminum weld pin that
is ideal to apply with pin welding or stud welding equipment. Manufactured with a standard capacitor
discharge weld tip and flange, the Capacitor Discharge Weld Pins is popularly used as an insulation

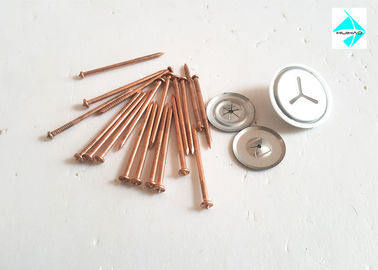

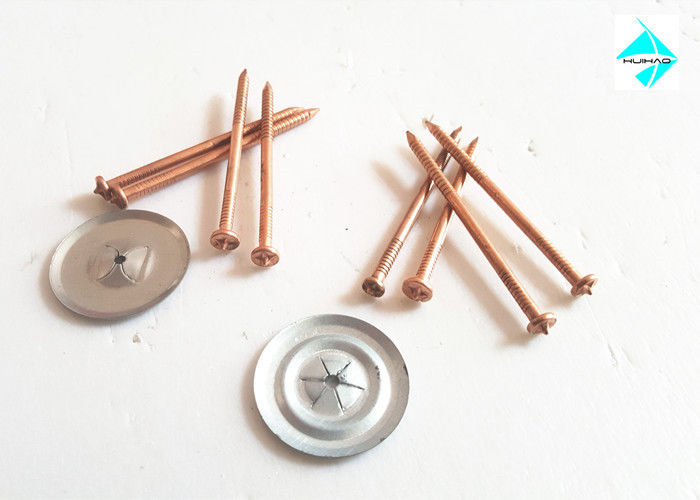

fastener, in combination with self locking washers(or “speed clips”) to secure insulating material.
We recommend Capacitor Discharge Pins for welding to clean surfaces. For difficult surfaces the
“Power Base” Weld Pin is designed to weld through paint and rust to eliminate grinding of the base
metal. Both are available in various diameters and lengths.
WELD PIN |
|||
---|---|---|---|
SIZE | D | STEEL FD | ALUM. FD |
14 GA | .080 | .160 | --- |
12 GA | .105 | .180 | .230 |
10 GA | .135 | .195 | .250 |
9 GA | .148 | .230 | --- |
MATERIAL |
LOW CARBON STEEL | STAINLESS STEEL | ALUMINUM | |
---|---|---|---|---|
C - 0.23% max | P - 0.04% max. | AISI grade - 302/304/305 std. Other grades available upon request. |
Alloy - 1100-H14 standard. Other alloys available upon request. | |
Mn - 0.90% max. | S - 0.05% max | |||
MECHANICAL PROPERTIES |
Tensile - 60,000 psi (min) | Values for various grades available upon request. | Values for various alloys available upon request. | |
Yield - 50,000 psi (min.) | ||||
Elongation - 20% (in two inches) | ||||
PLATING |
Copper coating is standard on pins. Copper and other platings available upon customer request. | Does not apply to stainless. | ||
ANNEALING |
Pins are annealed where required | Does not apply |
Length of this style pin should exceed the thickness of the insulation, in order to securely attach
the self-locking washer.
Nail point is standard - available with "blunt end" as special order.
Capacitor Discharge Weld Pins simplify the permanent attachment of insulation to just about any kind of
construction metal surface.
They can be applied quickly and easily using standard CD or Arc stud welding equipment.
Weld Pins are available in different styles to cover a wide variety of applications. Some factors to consider
regarding the pin style needed for your job would be the base metal type size and surface condition, and
also the welding equipment to be used.
1.The Controller [ or Power Unit] which is plugged into the one-hundred-and-ten-volt outlet.
2.The CD Gun with Cables is used to command the power unit and deliver weld current, with the Gun
also serving as the Pin holder to properly place the pin during welding.
3.Then, on the other side of “the circuit” a ground cable and clamping connection is attached to the
work-surface to complete our Capacitor Discharge connections.
4.And finally, special Accessories are used to hold the Pin in the Gun.
>> Package

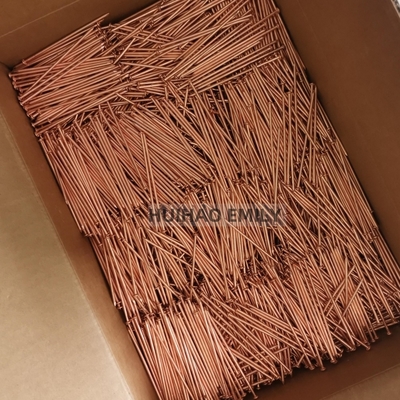

1. 500 pcs per bag, 10 bags per carton. 64 cartons per pallet.
