Product Details:
|
| Name: | Woven Wire Screen Mesh | Rod Diameter: | 0.5mm, 1.2mm, 1.5mm, 2.0mm, 3.0mm, 4mm, Etc. |
|---|---|---|---|
| Rod Pitch: | 1.5mm, 1.6mm, 3.0mm, 3.5mm, 5.0mm, 6.0mm, 6.2mm, 8mm, 10mm, 14.5mm, Etc. | Cable Diameter: | 0.45mm, 0.5mm, 0.75mm, 1.0mm, 1.7mm, 2.0mm, 2.5mm, 2.75mm, 3.0mm, Etc. |
| Cable Pitch: | 3.1mm, 3.2mm, 3.5mm, 5.0mm, 6.0mm, 17.5mm, 26.4mm, 36mm, 40mm, 50mm, 80mm, Etc. | Material: | Stainless Steel Wire |
| Small Order: | Available | Sample: | Available |
| Custom: | Support And Fast | Frame: | To Be Your Requirements |
| High Light: | stainless steel wire cloth,architectural woven metal mesh |
||

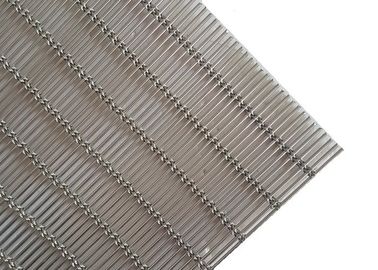

>>> Introduction To The Cable Rod Woven Decorative Wire Mesh , Stainless Steel Architectural Mesh Panels
The Cable Rod Woven Decorative Wire Mesh , Stainless Steel Architectural Mesh Panels has various styles and specs, we
can customize it according to the customers' requirements.
Cable Rod Woven Decorative Wire Mesh , Stainless Steel Architectural Mesh Panels has various types and beautiful surface
which could be widely used in high-class buildings, elevators, luxury office buildings, hotels, business hall and other architectures
for indoor and outdoor decorations.
>>> Specifications Of Cable Rod Woven Decorative Wire Mesh , Stainless Steel Architectural Mesh Panels
Material: stainless steel wire, copper wire and brass wire.
Rod diameter: 0.5mm, 1.2mm, 1.5mm, 2.0mm, 3.0mm, 4mm, etc.
Rod pitch: 1.5mm, 1.6mm, 3.0mm, 3.5mm, 5.0mm, 6.0mm, 6.2mm, 8mm, 10mm, 14.5mm, etc.
Cable diameter: 0.45mm, 0.5mm, 0.75mm, 1.0mm, 1.7mm, 2.0mm, 2.5mm, 2.75mm, 3.0mm, etc.
Cable pitch: 3.1mm, 3.2mm, 3.5mm, 5.0mm, 6.0mm, 17.5mm, 26.4mm, 36mm, 40mm, 50mm, 80mm, etc.
| material | open area | cable dia | cable pitch | rod dia | rod pitch | thickness | weight |
| SS304/304L/316/316L | 40% | 1x1.8 mm | 4 mm | 1.5 mm | 5.5 mm | 5.1 mm | 7.74kg/m2 |
| SS304/304L/316/316L | 43% | 1x2.5 mm | 6 mm | 2 mm | 8 mm | 5.5 mm | 7.87kg/m2 |
| SS304/304L/316/316L | 62% | 2x2.75 mm | 40 mm | 4 mm | 14.5 mm | 9.5 mm | 9.41kg/m2 |
| SS304/304L/316/316L | 37.20% | 3x0.5 mm | 3.5 mm | 0.5 mm | 1.4 mm | 1.3 mm | 2.4kg/m2 |
| SS304/304L/316/316L | 71% | 3x1.6 mm | 80 mm | 2.5 mm | 10 mm | 5.7 mm | 4.58kg/m2 |
| SS304/304L/316/316L | 65% | 3x2 mm | 80 mm | 3 mm | 10 mm | 7 mm | 6.67kg/m2 |
| SS304/304L/316/316L | 65.90% | 3x2.75 mm | 110 mm | 4 mm | 14.5 mm | 10 mm | 8.5kg/m2 |
| SS304/304L/316/316L | 67% | 3x3 mm | 110 mm | 4 mm | 14.2 mm | 10 mm | 8.6kg/m2 |
| SS304/304L/316/316L | 44.30% | 4x0.75 mm | 26.4 mm | 1.5 mm | 3 mm | 3 mm | 5.2kg/m2 |
| SS304/304L/316/316L | 62% | 4x1 mm | 36 mm | 2 mm | 6.6 mm | 4 mm | 4.55kg/m2 |
| SS304/304L/316/316L | 40% | 4x2 mm | 50 mm | 3 mm | 6 mm | 7mm | 11.2kg/m2 |
| SS304/304L/316/316L | 42% | 4x2 mm | 50 mm | 3 mm | 6 mm | 7 mm |
11.8kg/m2 |
| The Cable Rod Woven Decorative Wire Mesh , Stainless Steel Architectural Mesh Panels also coule be customized according to your requirement. | |||||||
 |
|
|
|
|
|
>>> Application Of Cable Rod Woven Decorative Wire Mesh , Stainless Steel Architectural Mesh Panels
Cable Rod Woven Decorative Wire Mesh , Stainless Steel Architectural Mesh Panels is durable, luxuriant high-grade, high
technology content, and is widely used in the curtain of base construction, condole top, stairs, elevators, luxurious office
buildings, hotels, luxury ballroom, business hall indoor and outdoor decoration of buildings. Under the illuminate of lamplight,
Cable Rod Woven Decorative Wire Mesh , Stainless Steel Architectural Mesh Panels will be magnificent, elegant and delicate.
>>> Package Of Cable Rod Woven Decorative Wire Mesh , Stainless Steel Architectural Mesh Panels
Plastic foam and carton box for inner packing,
Fumigated wooden cases for outer packing also can be as the request
>>>How to pay the order?
*We accept: T/T,Western Union,Paypal.if you want other way to pay the order,please contact us.
*T/T: 30% after order confirmed, 70% balance after sending you the scan of the B/L.
*DHL/UPS etc international express: 100% before shipping the goods
>>>How to contact us for the samples? and how long?
* We have a lot of free sample in our factory the the size:100mm*100mm,200mm*200mm,
300mm*300mm.We will send the samples in three days by TNT,DHL,UPS.
