Product Details:
|
Name: | Insulation Anchor Pins | Material: | SS304, Galvanized Steel As Standard |
---|---|---|---|
Pin Dia: | 12ga Or 14ga As Standard | Anchor Length: | 250mm |
Head: | Plate With Hook | Head Thickness: | 1mm |
Manufacturer: | HUIHAO | Type: | Lacing Anchors |
Highlight: | duct insulation pins,insulation anchors |

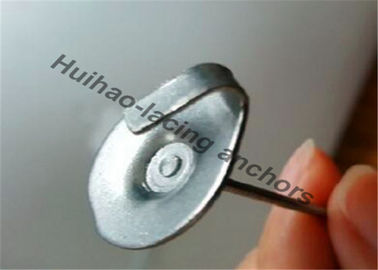

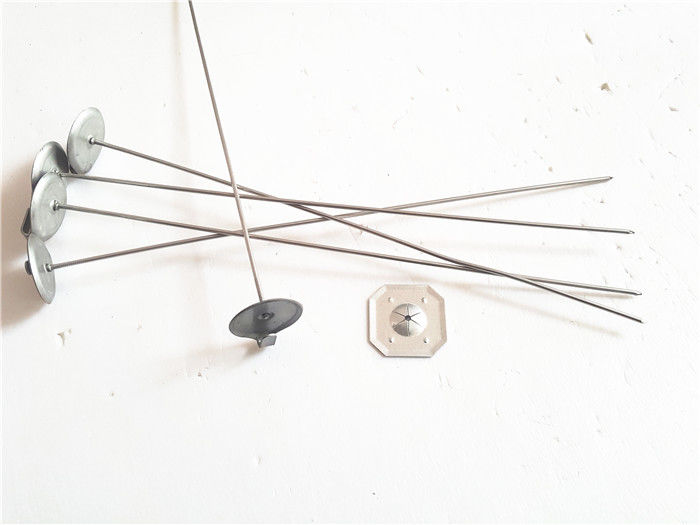

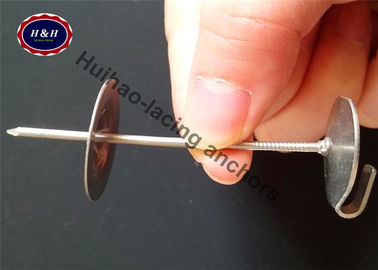

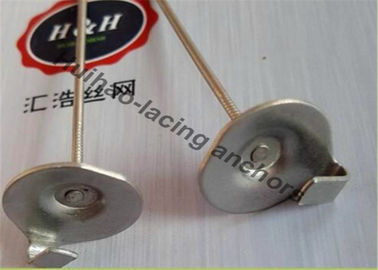

Insulation anchor Pins is a insulation hanger that is fabricated by a round or rectangular hook attached a pin, it is used for fasten the insulation blanket or removable cover. Press the pin through insulation and put the self-locking washer onto the pin, bend over or clip off the pin. The insulation material can be laced by hook with a tie wire.
US standard lacing anchor | EU standard lacing anchor | AU standard lacing anchor |
The head diameter is 1 inch, the pin diameter is 10Ga, the length we have 1/2inch, 3/4 inch, 7/8 inch, 1 inch, 1-1/8inch, 1-1/2 inch 2 inch |
The head diameter is 30mm, the pin diameter is 2.7mm, there are many different length for EU market, the length we manufactured-22mm, 27mm, 28mm, 32mm 42mm, 48mm 58mm 60mm 100mm |
The mostly of length in Australia is 25mm, 50mm, 75mm, 100mm. Lacing anchors marked NO AB to notify the blanket is asbestos free Available diameters : 2 mm (14 ga) and 2,7 mm (12 ga) Pins length : 63 mm (2 1/2") and 114 mm (4 1/2") |
1. length less than 65mm, 1000pcs per carton, 64 cartons per pallets.
2. length 70mm-120mm, 500pcs per cartons,64 cartons per pallets.
3. length 125mm-250mm, 250 pcs per cartons, 64 cartons per pallets.
4. or as your requirement
