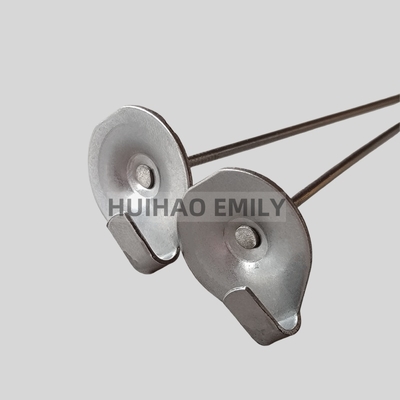

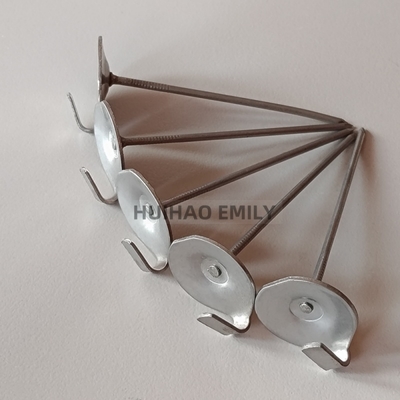

14Ga Stainless Steel 304 Lacing Anchors Insulation Pins For Removable Blanket Pads

Product name: Lacing Anchors Insulation Pins For Removable Blanket Pads

Material: Stainless steel 304,316,316L is in common, galvanized steel to be special request

Head diameter: 22mm diameter, 30mm diameter

Pin diameter: 12GA (2.7mm), 14GA(2.0mm) is common size, Other sizes are available by special order.

Pin length: 2-1/2" and 4-1/2" are standard. Other lengths available by special order

Install parts: Self-locking washers are available in a variety of sizes, shapes, and materials. Domed Caps can also be used to cover the tip of the nail.

• Provide strong, durable fixings even in elevated temperature applications
• Used to maintain internal insulation between outer and inner liners
• Used to retain the blankets under metal cladding and jacketing

• Wide choice of fasteners for removable insulation blanket
• Provide strong, durable fixings even in elevated temperature applications
• Available in galvanized steel and stainless steel
• Lacing anchors marked NO AB to notify the blanket is asbestos free
• Available diameters: 2 mm (14 ga) and 2.7 mm (12 ga)
• Pins length: 63 mm (2 1/2") and 114 mm (4 1/2")

1. Prepare the insulation blanket or removable cover
2. Press the lacing anchor through the insulation
3. Press the self locking washer into the pin to fasten the insulation
4. Bend over or clip off the pin
5. Install the insulation blanket or removable cover
6. Lace the hook by lacing tie in order to fasten the insulation

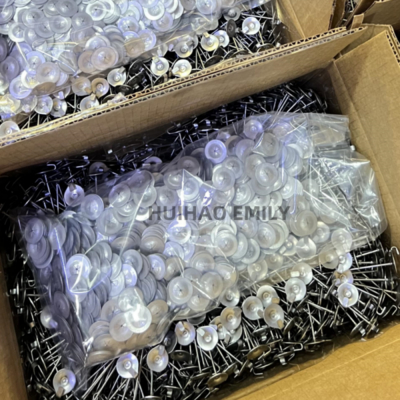

Standard Packaging: 2000pcs/3000pcs/5000pcs per carton box, then on the pallet

• Air transportation
• Sea transportation
• By express mail: DHL, FedEx, EMS, UPS, SF-Express, etc.
