Product Details:
|
| Width: | 1.2m As Standard | Wire Diameter: | 1-4mm |
|---|---|---|---|
| Material: | Stainless Steel | Length: | To Be Order |
| Small Order: | Available | Customized: | Support And Fast |
| Sample: | Available | Frame Design: | Support |
| High Light: | stainless steel wire cloth,architectural woven metal mesh |
||

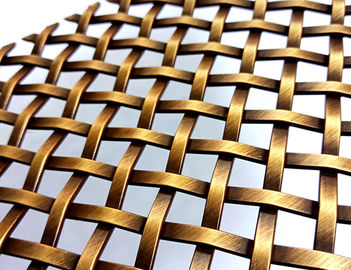

Architectural Woven Decorative Wire Mesh is ideal for architectural projects because of its optical and functional properties.
May of which include their reflectiveness, transparency and opaqueness, flexibility and robustness, permeability to light and
air, practically unlimited service life, ease of cleaning, recyclability and functional protection against the sun, drafts and impacts.
Architectural Woven Decorative Wire Mesh facades offer an ideal solution for both internal and external requirements. The
various combinations of wire diameters, aperture sizes and mesh patterns result in each application having its own unique
appearance. When Architectural Woven Decorative Wire Mesh are combined with suitable lighting the results are very impressive.
There are a number of different fitting options available depending on the mesh type and the application.
1. specification Architectural Woven Decorative Wire Mesh
type-1
| Material | Stainless Steel | Opening Area | 82.8% |
| Warp Diameter | 1.8mm | Mesh Thickness | 3.5mm |
| Warp Pitch | 20mm | Surface | antique brass |
| Weft Diameter | 1.8mm | Max High | 1500mm |
| Weft Pitch | 20mm | Max Wide | 3000mm |
| Weight | 2.05kgs/m2 | Application | Interior |
type-2
| Material | Stainless Steel | Opening Area | 74% |
| Warp Diameter | 2.75mm | Mesh Thickness | 4.8mm |
| Warp Pitch | 19.75mm | Surface | PVD/SPRAYING |
| Weft Diameter | 2.75mm | Max High | 4000mm |
| Weft Pitch | 19.75mm | Max Wide | 12000mm |
| Weight | 4.86kgs/m2 | Application | Interior /Exterior |
TYPE-3
| Material | Stainless Steel | Opening Area | 41% |
| Warp Diameter | 0.6*1.75mm | Mesh Thickness | 1.8mm |
| Warp Pitch | 5mm | Surface | PVD/SPRAYING |
| Weft Diameter | 0.6*1.75mm | Max High | 3000mm |
| Weft Pitch | 5mm | Max Wide | 1500mm |
| Weight | 3.36kgs/m2 | Application | Interior |
TYPE-4
| Material | Stainless Steel | Opening Area | 42.2% |
| Flat Diameter | 1.5×3.5mm | Mesh Thickness | 3mm |
| Flat Nos | 1 | Surface | Antique Plated |
| Flat Pitch | 10mm | Max High | 3000mm |
| Weight | 8.6kgs/m2 | Max Wide | 1500mm |
| Application | Interior |
2. Features of Architectural Woven Decorative Wire Mesh
1. Can be readily formed
2. Easy installation
3. Can be painted or polished and anodizing.
4. The thickness of materials is wide range from 0.3mm-8mm.
5. Largest selection of hole size patterns and configurations
6. Uniform sound abatement(aluminum perforated metal)
7. Attractive appearance,
8. Light weight,
9. Durable
3.applications of Architectural Woven Decorative Wire Mesh
Space divider. Elevator cab mesh.
Wall decoration. Security door.
Ceiling decoration. Facade cladding.
Window curtain. Glass laminated wire.
Handrail balustrade. Sunshade screen.
