Product Details:
|
| Material: | Stainless Steel | Head: | 7/8" As Standard |
|---|---|---|---|
| Spindle Dia: | 12ga Or 14ga As Standard | Length: | 2-1/2" Or 4-1/2" As Standard |
| Head Thickness: | 1mm | Application: | SS Insulation Anchor Pins. |
| High Light: | rockwool insulation pins,duct insulation pins |
||
|
D |
C |
L |
|
14 ga (.080) |
7/8" |
2-1/2" |
|
14 ga (.080) |
7/8" |
4-1/2" |
|
12 ga (.106) |
7/8" |
2-1/2" |
|
12 ga (.106) |
7/8" |
4-1/2" |
Wide choice of fasteners for removable insulation blanket
Provide strong, durable fixings even in elevated temperature applications
Available in galvanized steel and stainless steel
Lacing anchors marked NO AB to notify the blanket is asbestos free
Available diameters : 2 mm (14 ga) and 2,7 mm (12 ga)
Pins length : 63 mm (2 1/2") and 114 mm (4 1/2")

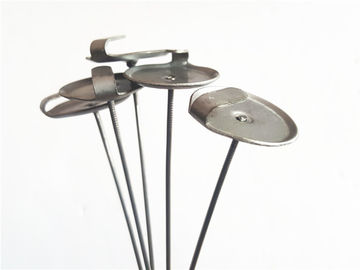

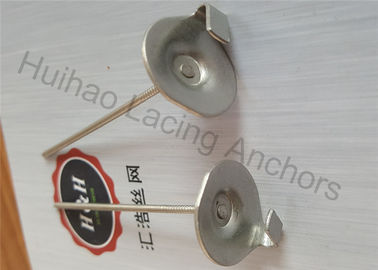

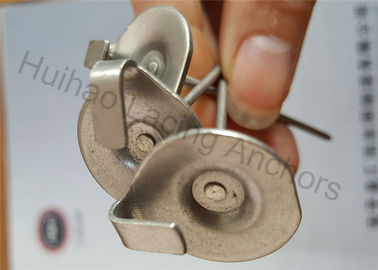

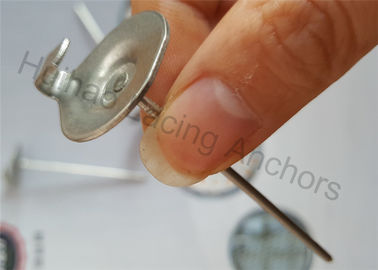

US Standard SS Insulation anchor Pins' hooks are used for securing and tying removable/reuseable insulation blankets or pads.
one hole lacing hooks two holes lacing hooks
Self-locking washers and dome caps can be used to cover the top of the metal lacing anchors.
Material: stainless steel or galvanized steel or aluminum
Size: 1" or 1-3/16" or 1-1/2" or 2"
Thickness: 28ga (0.4mm)
Self-locking washers are designed to be used with weld pins, insulation-hangers, lacing anchors, etc.
| Diameter: | 1" | 1-3/16″ | 1-1/2” |
| Thickness: | 0.015" | 0.015" | 0.015" |
| Plating: | Galvanized | Galvanized | Galvanized |
| Material: | Mild Steel /SS 304 | Mild Steel /SS 304 | Mild Steel /SS 304 |
| Edge: | Beveled or Flat | Beveled or Flat | Beveled or Fla |
Material: stainless steel or galvanized steel or aluminum
Thickness: 28ga (0.4mm)
Self-locking washers are designed to be used with weld pins, insulation-hangers, lacing anchors, etc.
| Pin Diameter | 2-1/2" | 1-1/2" | 1-1/4" |
| 14 Ga (2mm) | square | square | square |
| 12 Ga | square | square | square |
| 10 Ga | square | square | square |
| 3mm | square | square | square |
Dome washers are designed to be used where appearance and safety are factors when installing insulation, or fabricating blankets or pads. The washers are used to cover the nail point on weld pins, hangers, lacing anchors & quilt pins.
| Material | galvanized, aluminum and stainless steel |
| Finish: | brushed aluminum, white plastic coating, black plastic coating etc |
| A: | 20mm,22mm,25mm,30mm,38mm |
| B: | 10 Ga Or 12 Ga Or 14 Ga |
| C: |
9/32" (7.2mm) |
