Product Details:
|
Material: | Galvanized Steel Or Stainless Steel | Diameter: | 8mm |
---|---|---|---|
Length: | 50mm 70mm 90mm 110mm 140mm 170mm Etc. | Base Size: | 35mm As Standard |
Material Thickness: | 0.7mm | Usage: | Fixing Rock Wool |
High Light: | rockwool insulation pins,insulation anchors |
>>> Specification Of The Metal Insulation Plugs
Pin size | Pin diameter | Pin length | Plate size | Plate thickness | Packaging (carton) |
8*50 | 8mm | 50mm | 30/35mm | 0.7mm | 250pcs |
8*60 | 8mm | 60mm | 30/35mm | 0.7mm | 250pcs |
8*90 | 8mm | 90mm | 30/35mm | 0.7mm | 250pcs |
8*110 | 8mm | 110mm | 30/35mm | 0.7mm | 250pcs |
8*140 | 8mm | 140mm | 30/35mm | 0.7mm | 250pcs |
8*170 | 8mm | 170mm | 30/35mm | 0.7mm | 250pcs |
8*230 | 8mm | 230mm | 30/35mm | 0.7mm | 250pcs |
8*300 | 8mm | 300mm | 30/35mm | 0.7mm | 250pcs |

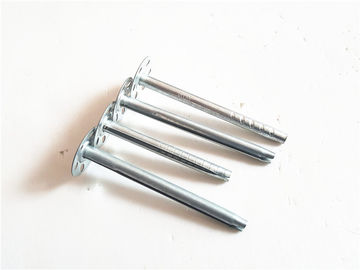

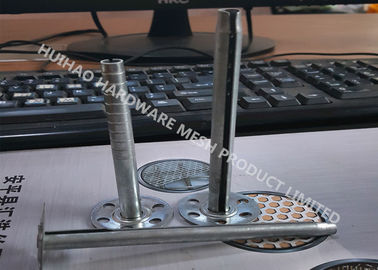

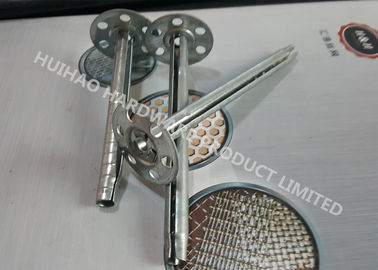

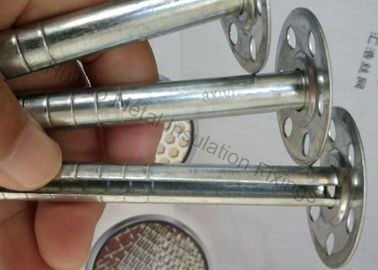

>>> Detailed Image Of The Metal Insulation Plugs
The metal insulation plugs are suit for concrete, natural stone with dense structure, solid brick, solid sand-lime brick,
solid block made from lightweight concrete, aerated concrete, vertically perforated brick, perforated sand-lime brick etc.
The metal insulation plugs also suit for the soft and pressure-resistant insulating materials, such as glass wool, rock wool,
polystyrene, PU panels, foam glass, lighting building boards made of wood wool, coir matting, cork boards etc.
>>> The Advantages Of The Metal Insulation Plugs
Quick and simple hammerset installation saves work
No additional screws or nails. Also suitable for ceiling soffits
Fire-resistant according to DIN 4102 (class A1)
Fire protection report for the galvanised version with anchoring depth hef > 50 mm

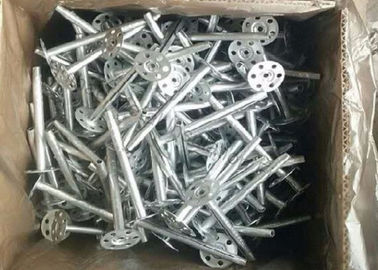

1. length less than 65mm, 1000pcs per carton, 64 cartons per pallets.
2. length 70mm-120mm, 500pcs per cartons,64 cartons per pallets.
3. length 125mm-250mm, 250 pcs per cartons, 64 cartons per pallets.
4. or as your requirement.
>>> Delivery Of The Metal Insulation Plugs
Sample;DHL/EMS/UPS/TNT/EXPRESS
Large Order:we recommand you by SEA ,or by AIR if in an emergency.
