Product Details:
|
| Product Name: | Galvanized Soft Nails | Pin Thickness: | 2mm-3mm |
|---|---|---|---|
| Material: | Galvanized Steel Wire | Type: | Soft Galvanized Nails |
| Length: | 25mm-240mm | Surface Treatment: | Zinc Coated |
| High Light: | duct insulation pins,insulation anchors |
||

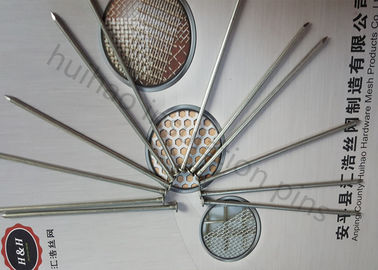

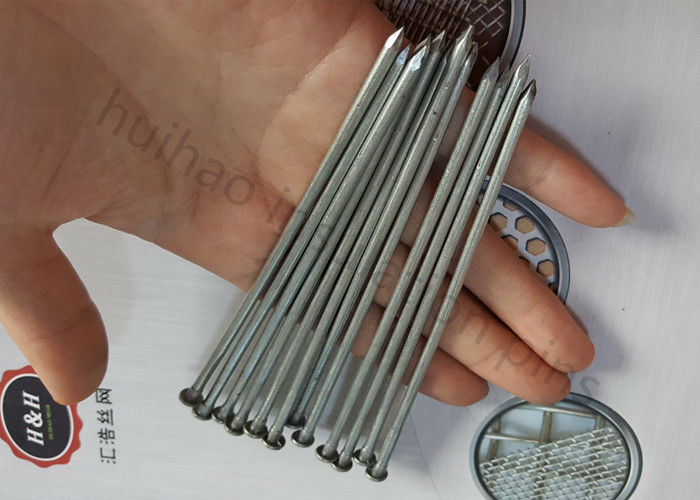

Huihao 3mm Dia Soft Galvanized Steel Nails As Insulation Anchor Pins Accessories
soft galvanized steel nails are used for attaching insulation to various metals, with the use of a CD welder. After the pin is welded in place, the insulation is impaled on the pin and secured with a self-locking washer.
1. Soft Galvanized Steel Nails As Insulation Anchor Pins Accessories Specifications:
Washers - Self-Locking washers are available in a variety of sizes, shapes and materials.
|
galvanbized steel soft nails for insulation anchor pins |
|||
|---|---|---|---|
|
SIZE |
length |
STEEL FD |
ALUM. FD |
|
14 GA |
30mm-250mm |
.160 |
--- |
|
12 GA |
50mm-250mm |
.180 |
.230 |
|
10 GA |
75mm-250mm |
.195 |
.250 |
|
9 GA |
90mm-250mm |
.230 |
--- |
|
MATERIAL |
LOW CARBON STEEL |
STAINLESS STEEL |
ALUMINUM |
|
|---|---|---|---|---|
|
C - 0.23% max |
P - 0.04% max. |
AISI grade - 302/304/305 std. |
Alloy - 1100-H14 standard. Other alloys available upon request. |
|
|
Mn - 0.90% max. |
S - 0.05% max |
|||
|
MECHANICAL PROPERTIES |
Tensile - 60,000 psi (min) |
Values for various grades available upon request. |
Values for various alloys available upon request. |
|
|
Yield - 50,000 psi (min.) |
||||
|
Elongation - 20% (in two inches) |
||||
|
PLATING |
Copper coating is standard on pins. Copper and other platings available upon customer request. |
Does not apply to stainless. |
|
|
|
ANNEALING |
Pins are annealed where required |
Does not apply |
||
Length of this style pin should exceed the thickness of the insulation, in order to securely attach the self-locking washer.
Nail point is standard - available with "blunt end" as special order.
