Product Details:
|
| Product Name: | Insulation Anchor Pins | Application: | Used With Lacing Wire In The Fabrication Of Insulation Blankets And Removable Covers/pads |
|---|---|---|---|
| Material: | Stainless Steel 304,316,316l | Type: | Weld Ring |
| Common Size: | 30 Mm , 40 Mm | Factory: | Huihao Hardware |
| High Light: | rockwool insulation pins,duct insulation pins |
||

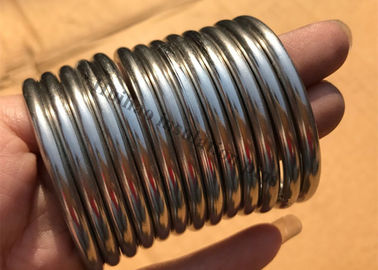

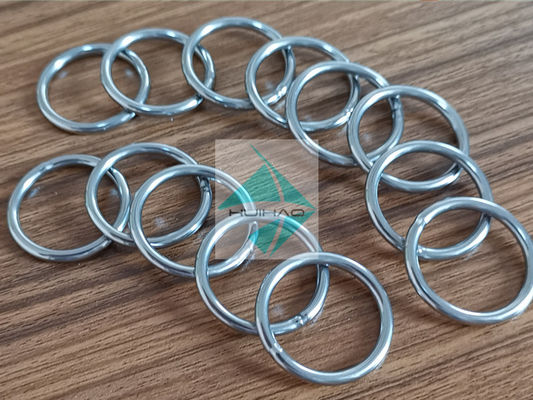

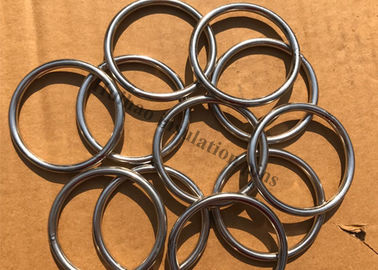

lacing ring include two types : D ring and O ring. it is made of stainless steel 304/316 wire by CNC spring machine and welding machines. polished the surface. it is stong and beautiful. we have a lot of customers from insulation material industry. the quality meet DN, JP, EN and US standard.
Insulation anchor pins with Weld Lacing Rings are used with lacing wire in the fabrication of insulation blankets and removable covers/pads.
| material | weight | wire diameter | outer diameter | inter diameter |
| stainless steel | 4.7g | 3mm | 31mm | 25mm |
| stainless steel | 6.2g | 3mm | 40mm | 34mm |
| stainless steel | 7.3g | 3mm | 45mm | 39mm |
| stainless steel | 9.9g | 3mm | 60mm | 53mm |
| stainless steel | 8.0g | 4mm | 29.5mm | 22mm |
| stainless steel | 10.9g | 4mm | 40mm | 33mm |
| stainless steel | 14.0g | 4mm | 49.5mm | 42mm |
| stainless steel | 17.4g | 4mm | 61.5mm | 54mm |
| stainless steel | 23.8g | 4mm | 81mm | 73mm |
| stainless steel | 12.0g | 5mm | 30mm | 20mm |
| stainless steel | 17.0g | 5mm | 40mm | 30mm |
| stainless steel | 20.8g | 5mm | 49mm | 39mm |
| stainless steel | 26.3g | 5mm | 60mm | 50mm |
| stainless steel | 35.5g | 5mm | 80mm | 70mm |
| stainless steel | 23.4g | 6mm | 40mm | 28mm |
| stainless steel | 29.4g | 6mm | 49mm | 37mm |
| stainless steel | 38.0g | 6mm | 62mm | 51mm |
| stainless steel | 50.0g | 6mm | 78mm | 67mm |
Applications of Weld lacing Ring: Decorative , Rigging, Architectural . Food Service, Uniforms, Safety,
WebbingNotes: Round Ring- 316 Stainless Steel 5/32" x 1 1/2"
1. Standard:DIN, ANSI B18.2.1, BSW, JSB ans ISO standard or non-standard as request&design.
2. Material: ASTM5140(40Cr)/35CrMo or according require.
3. Grade of Hub bolt:Grade 10.9 / Grade 12.9 or request
Usage:Exclusively used for fixing adiabatic materials in ducts of air-conditioner, for glass-wool
and rock-wool is oundproofing works, and for the duct-lining
1.OEM&Customize non-standard products welcome.

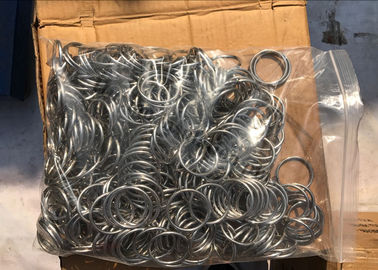

2. we have stcok for 4mmx40mm o ring. this size is very popular in Ru market.
3. free sample is for common size is acceptable
4. ISO9001-2008.SGS test report and offical material certification.
5.ring is High hardness, no pollution
