Aluminum Base Bimetallic Insulation Stud Welding Pins With Self Locking Washer

Large Image : Aluminum Base Bimetallic Insulation Stud Welding Pins With Self Locking Washer

Product Details:

Place of Origin:	hebei
Brand Name:	HUIHAO
Certification:	iso
Model Number:	bimetallic pin

Payment & Shipping Terms:

Minimum Order Quantity:	30.000pcs
Price:	USD0.1-USD0.15
Packaging Details:	Usually 500 piece or 1000 piece in one bag , can be according buyer's requirement
Delivery Time:	within 15 days after confirm the order
Payment Terms:	L/C, , T/T, Western Union,Paypal
Supply Ability:	100.000 piece per 20 days

Contact Now

Aluminum Base Bimetallic Insulation Stud Welding Pins With Self Locking Washer

Description

Product Name:	CD Weld Bi-metallic Pins	Base Material:	Aluminum
Base Size:	6x15mm Or As Requirement	Pin Material:	Stainless Steel ,galvanized
Pin Material:	Carbon Steel ,stainless Steel	Pin Length:	30-200mm
Usage:	Use To Weld The Insulation To The Surface Of The Sheet Metal	Oem:	Available
Highlight:	aluminum base stud welding pins , bimetallic insulation stud welding pins , self locking washer cd weld pins

Aluminum Base Bimetallic Insulation Stud Welding Pins With Self Locking Washer

--------------------------------------------------------------------------------------------------------------------------------------------

BI-Metallic Insulation Stud Welding Pins Introduction :

Product name : bimetallic insulation stud welding pins

Base material :aluminum base

Pin Material: galvanized steel ,copper coated ,stainless steel

Pin end type :flat type or sharp type
Base size :M6*15mm
Pin dia:3.0mm or customized
Total length:30-200mm , could be customized

Accessories :self locking washer ,speed clip washer ,dome cap washer

BI-Metallic Insulation Stud Welding Pins Introduction :

Material of the pin	Pin diameter	Material for the head	Length of the head	Total length
Stainless steel or carbon steel	3mm	Aluminum	15mmx6mm	35mm
Stainless steel or carbon steel	3mm	Aluminum	15mmx6mm	45mm
Stainless steel or carbon steel	3mm	Aluminum	15mmx6mm	55mm
Stainless steel or carbon steel	3mm	Aluminum	15mmx6mm	65mm
Stainless steel or carbon steel	3mm	Aluminum	15mmx6mm	80mm
Stainless steel or carbon steel	3mm	Aluminum	15mmx6mm	95mm

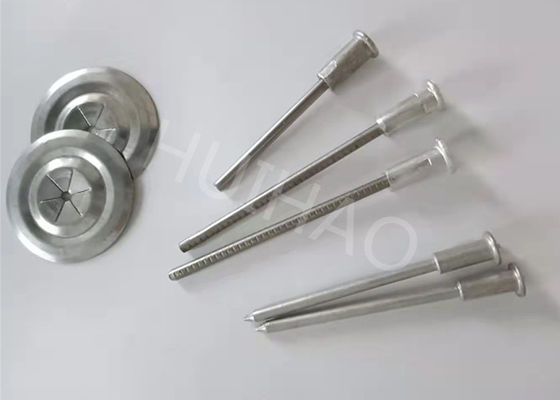

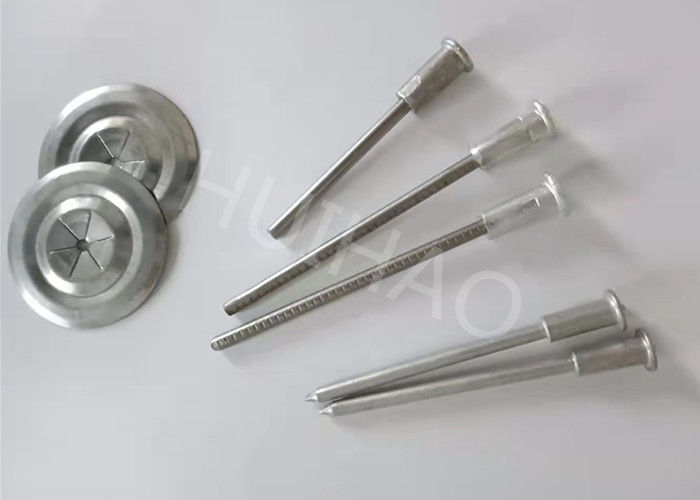

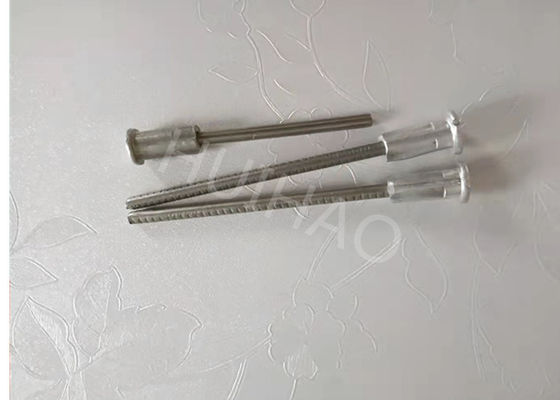

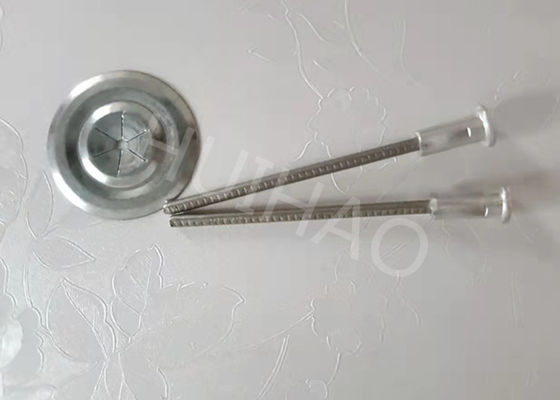

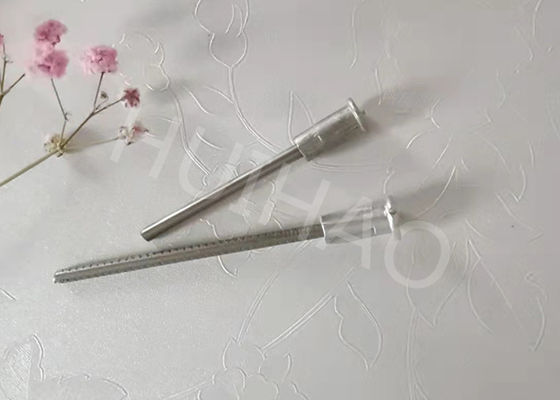

BI-Metallic Insulation Stud Welding Pins Product Pic :

Aluminum Base Bimetallic Insulation Stud Welding Pins With Self Locking Washer 0

BI-Metallic Insulation Stud Welding Pins Technical & Features :

Features of the bimetallic insulation pin
BETTER PLATING	weldpin shanks Zinc and Chromate plated exceeding SMACNA standards and providing a professional appearance.Climatech weldpin shanks are copper plated.
REDUCED DOWN TIME	Consistent point quality reduces frequency of machine adjustments.
STRONGER WELDS	Hardened steel point assures positive electrical contact for complete sheet to pin fusion.
CORROSION RESISTANCE	Plating exceeds current SMACNA standards for corrosion resistance.
TEMPERATURE RANGE	CD Weld pins function properly over normally accepted operating range of temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees C to 287 degrees C.
VIBRATIONS	CD Weld pins will not fatigue or be physically affected by vibrations normally found in high velocity air handling systems.

BI-Metallic Insulation Stud Welding Pins Packing :

usually 100 pcs ,200 pcs ,300pcs ,500 pcs in one plastic bag (according the pin length ),the in one

carton box ,then in one pallet ,the package can be can according your request

HUIHAO MAINLY INSULATION PIN PRODUCE LINE :

1.BIMetallic Pins

2.Perforated Base Insulation Pin

3.Self-Stick Insulation Pin

4.Insulation Anchor

5.CD Weld Pin

6.Cap Head Pin

7.Solar panle mesh clip

8.Self-Lock Washer

9.Dome Caps
