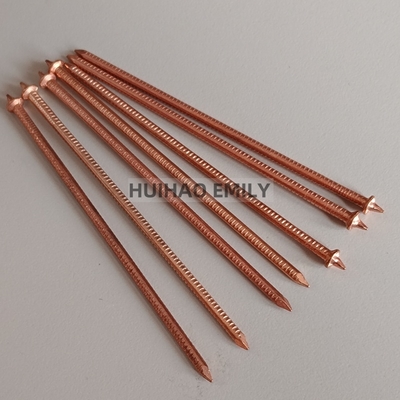

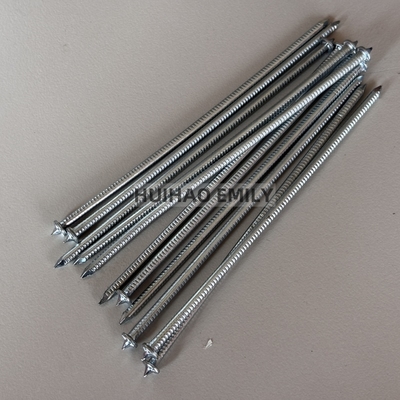

Mild Steel Capacitor Discharge(CD)Welding Pins With Copper Or Zinc Coating

Material: Mild steel, 302HQ stainless steel and aluminum

Plating: Mild steel pins are copper plated

Washers: Various types of steel, stainless steel and aluminum self locking washers

Standard nail point is used for most applications, nut also available.

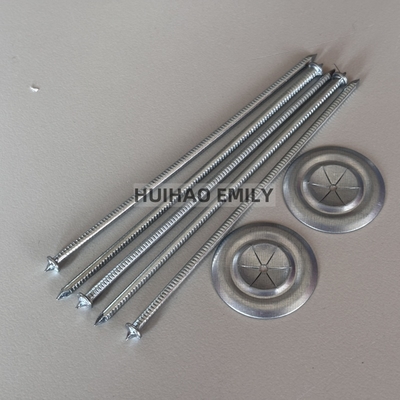

The Capacitor Discharge Weld Pins is a Low Carbon Steel, Stainless Steel or Aluminum weld pin that is ideal to apply with pin welding or stud welding equipment. Manufactured with a standard capacitor discharge weld tip and flange, the Capacitor Discharge Weld Pins is popularly used as an insulation fastener, in combination with self locking washers (or "speed clips") to secure insulating material.

We recommend Capacitor Discharge Pins for welding to clean surfaces. For difficult surfaces the "Power Base" Weld Pin is designed to weld through paint and rust to eliminate grinding of the base metal. Both are available in various diameters and lengths.

• Length of this style pin should exceed the thickness of the insulation, in order to securely attach the self-locking washer.
• Nail point is standard - available with "blunt end" as special order.

Capacitor Discharge Weld Pins simplify the permanent attachment of insulation to just about any kind of construction metal surface. They can be applied quickly and easily using standard CD or Arc stud welding equipment.

Weld Pins are available in different styles to cover a wide variety of applications. Some factors to consider regarding the pin style needed for your job would be the base metal type size and surface condition, and also the welding equipment to be used.

1. The Controller [or Power Unit] which is plugged into the one-hundred-and-ten-volt outlet.
2. The CD Gun with Cables is used to command the power unit and deliver weld current, with the Gun also serving as the Pin holder to properly place the pin during welding.
3. Then, on the other side of "the circuit" a ground cable and clamping connection is attached to the work-surface to complete our Capacitor Discharge connections.
4. And finally, special Accessories are used to hold the Pin in the Gun.

Package:

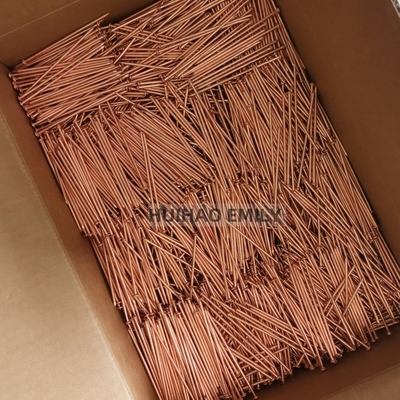

• 500 pcs per bag, 10 bags per carton. 64 cartons per pallet.
• Custom packaging available upon request.

Delivery:

• Sample: DHL/EMS/UPS/TNT/EXPRESS
• Large Order: we recommend by SEA, or by AIR if in an emergency.
