Copper Plated Capacitor Discharge (CD)Stud Welding Pins For Deck Insulation

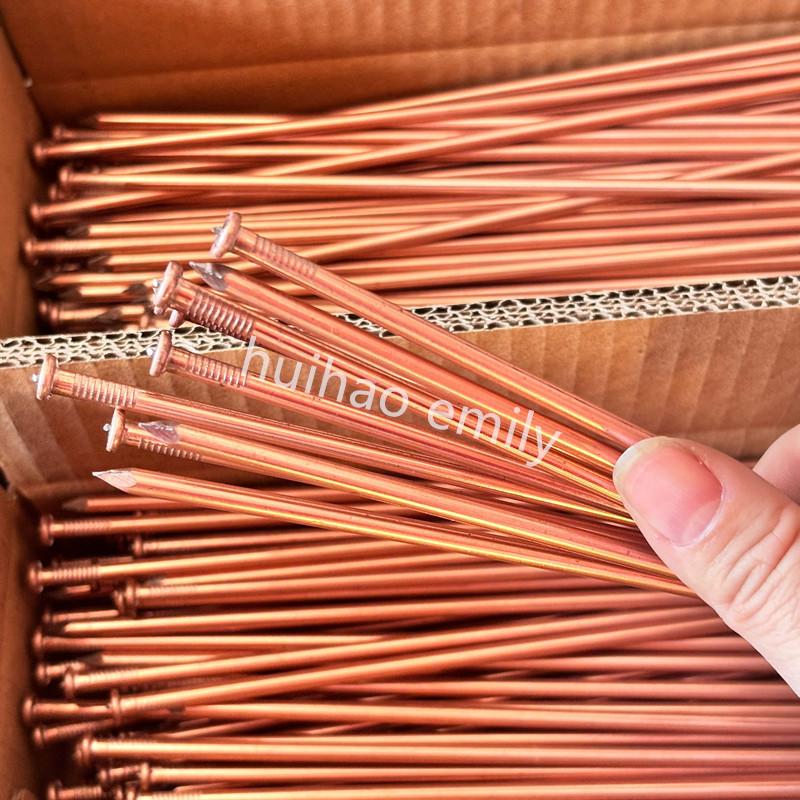

Large Image : Copper Plated Capacitor Discharge (CD)Stud Welding Pins For Deck Insulation

Product Details:

Place of Origin:	China
Brand Name:	HUIHAO
Certification:	ISO
Model Number:	Capacitor Discharge Weld Pins

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Packaging Details:	Capacitor Discharge Weld Pins1.500pcs per bags, 10 bags per carton. if the length too long, we will be according your requirements to pack.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union,paypal
Supply Ability:	500000pcs per 20 days

Contact Now

Copper Plated Capacitor Discharge (CD)Stud Welding Pins For Deck Insulation

Description

Product Name:	Capacitor Discharge Weld Pins	Pin Diameter:	1mm,1.5mm,2mm,2.74mm,3.0mm,3.4mm,4mm,,5mm
Material:	Mild Steel ,stainless Steel ,aluminum Alloy	Type:	Soft Steel Nails
Length:	10mm-240mm	Washer Type:	Dome Caps
OEM/ODM:	Support	Service:	Door To Door Service
Highlight:	Capacitor Discharge Stud Welding Pins , cd Stud Welding Pins , Copper Plated Stud Welding Pins

Copper Plated Capacitor Discharge (CD) Stud Welding Pins For Deck Insulation

Product Specifications

Attribute	Value
Product name	Capacitor Discharge Weld Pins
Pin diameter	1mm, 1.5mm, 2mm, 2.74mm, 3.0mm, 3.4mm, 4mm, 5mm
Material	Mild steel, stainless steel, aluminum alloy
Type	Soft steel nails
Length	10mm-240mm
Washer type	Dome caps
OEM/ODM	Support
Service	Door to door service

Product Description

Copper plated capacitor discharge (CD) stud welding pins are designed for deck insulation applications, offering reliable fastening solutions for various construction needs.

Key Features

Materials: Mild steel (copper plated), 302HQ stainless steel, and aluminum
Washers: Various types of steel, stainless steel, and aluminum self-locking washers
Standard nail point for most applications (nut option available)
Ideal for use with pin welding or stud welding equipment
Manufactured with standard capacitor discharge weld tip and flange
Popularly used as insulation fasteners with self-locking washers

We recommend capacitor discharge pins for welding to clean surfaces. For difficult surfaces, the "Power Base" weld pin is designed to weld through paint and rust, eliminating the need for base metal grinding. Both types are available in various diameters and lengths.

Technical Specifications

SIZE	D	STEEL FD	ALUM. FD
14 GA	.080	.160	---
12 GA	.105	.180	.230
10 GA	.135	.195	.250
9 GA	.148	.230	---

MATERIAL	LOW CARBON STEEL	STAINLESS STEEL	ALUMINUM
Composition	C - 0.23% max Mn - 0.90% max	P - 0.04% max. S - 0.05% max AISI grade - 302/304/305 std.	Alloy - 1100-H14 standard
MECHANICAL PROPERTIES	Tensile - 60,000 psi (min) Yield - 50,000 psi (min.) Elongation - 20% (in two inches)	Values for various grades available upon request.	Values for various alloys available upon request.
PLATING	Copper coating standard (other platings available)	Does not apply to stainless
ANNEALING	Pins are annealed where required	Does not apply

Additional Specifications

Pin length should exceed insulation thickness for secure attachment with self-locking washers
Standard nail point available (blunt end option as special order)
Simplifies permanent attachment of insulation to various construction metal surfaces
Quick and easy application using standard CD or Arc stud welding equipment
Available in different styles for wide variety of applications
