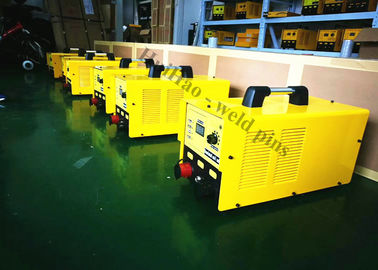

CD Welding Machine For Insulation Pins

Large Image : CD Welding Machine For Insulation Pins

Product Details:

Place of Origin:	China
Brand Name:	huihao
Certification:	ISO
Model Number:	CD Stud Welder , Insulation Pin Welder

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	USD782/SET
Packaging Details:	CD Stud Welder , Insulation Pin Welder:1 pc put into carton, 20 cartons per pallet
Delivery Time:	7 work days
Payment Terms:	T/T,Western Union,PAYPAL
Supply Ability:	1000pcs per 20 days

Contact Now

CD Welding Machine For Insulation Pins

Description

Dimensions:

430*350*155

Welding Current Output:

Capacitor Discharge

Capacitance Specifications(μF):

66000

Welding Speed (times / Min):

15-20

Highlight:

copper plated insulation pins

threaded stud welder

CD Welding Machine For Insulation Pins

Product Specifications

Attribute	Value
Dimensions	430350155
Welding current output	Capacitor discharge
Capacitance specifications(μF)	66000
Welding speed (times / min)	15-20

Product Description

This new line of Microprocessor controlled Capacitor Discharge stud welding equipments incorporates the latest solid state technology into a compact and rugged CD Stud Welder
This unit has the capacity to weld studs ranging from 3 mm through 8 mm (10 mm) full flanged studs and pins (including cupped head pins)
The CD Stud Welder meets the highest requirements due to operating convenience, precise process times, optimal functional reliability, lightweight and easily portable, compact design, absolute safety (Safety Shutdown) and Low cost

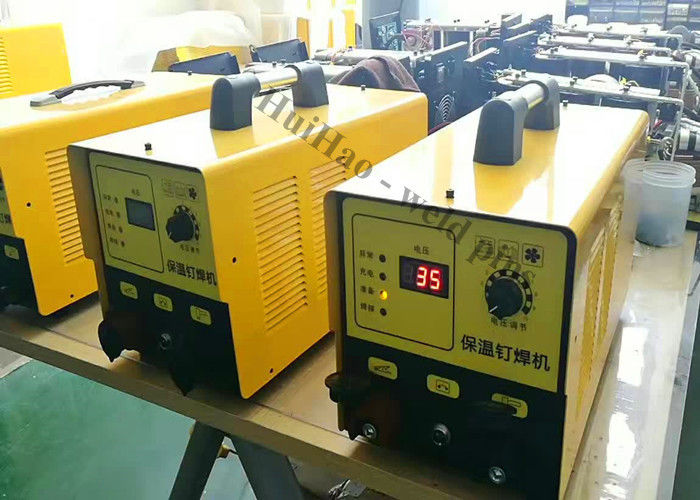

The monitoring of all functions is clearly displayed by LED on the front panel

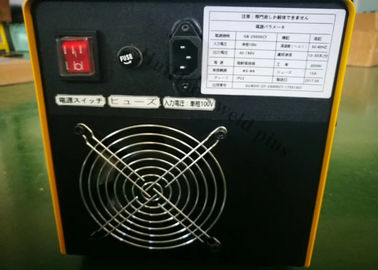

Thermostatically controlled cooling fan in all models for increased efficiency

Model Comparison

Unit	NOMARK 65	NOMARK 99	NOMARK 132
Welding range	M 3 - M 8	M 3 - M 8 (M 10)	M 3 - M 10
Weldable Materials	Steel, Stainless Steel	Steel, Stainless Steel	Steel, Stainless Steel
Welding process	"Contact"	"Contact"	"Contact"
Capacitance	66.000 µF	99.000 µF	132.000 µF
Charging	50-200 V (Dial‐down)	50-200 V (Dial‐down)	40-200 V (Dial‐down)
Digital Voltmeter	Yes	Yes	Yes
Duty cycle	up till 10 studs/min	up till 10 studs/min	up till 5 studs/min
Energy	1.320 Ws	1.980 Ws	2.640 Ws
Mains supply	230 V - 50/60 Hz - 10 AT	230 V - 50/60 Hz - 10 AT	230 V - 50/60 Hz - 10 AT
Size (w x h x l)	165 x 250 x 380 mm	165 x 250 x 380 mm	165 x 250 x 380 mm
Weight	12,5 Kg	13 Kg	14,5 Kg

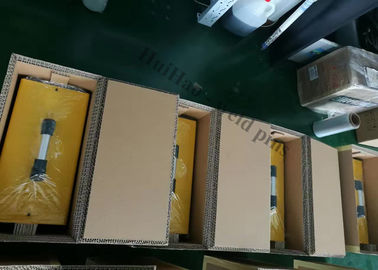

Packing Details

Key Advantages

Wide range of application - the wide range of application to say all need to install the fixed place, all the heat preservation cotton can be used, especially in building installation industry.
Reduce process - reduce process is welding heat preservation nails, because of the surface of the washroom so without any requirements, cleanness of depriving the cleaning process.
Save time - the welder saving time every minutes up to 20 insulation nails, welding and edge pavement thermal insulation cotton edge welding fixed, unlike adhesive meet insulation nail need clotting.
Save material -- can be used to save material, such already save the coil heat preservation cotton, can decrease again use quantity of heat preservation nails.
Sturdy and reliable - the sturdy and reliable, welding is complete preservation once nail never fall off naturally, thus effectively guarantees the construction quality.
No shape limitation - in no shape limit of any shape the welding process, the hair dryers can ensure construction quality, especially in circular on general construction condition to reflect more incomparable advantage.
No season limit -- insulation without season was restricted by welding construction temperature limits, the construction site in winter and any temperature of welding process, will not affect the quality of welding.
Safety construction - the safety construction is taken edge shop because the one-time installation is complete edge fixed the construction method, so reduce the construction personnel aloft working time and times, make construction safer.
No pollution - without pollution during construction and construction is finished, this process will not produce any pollution, more in line with the requirements of the modern world.
In another development, the second-ranking machine can also be used as a repair tools for bonding insulation, nail because adhesive rickety and peels part the repairs.
