Air Duct Fiberglass Insulation Cup Head Pins 12Gauge HVAC Duct Insulation Fasteners

Large Image : Air Duct Fiberglass Insulation Cup Head Pins 12Gauge HVAC Duct Insulation Fasteners

Product Details:

Place of Origin:	China
Brand Name:	HUIHAO CUSTOM
Certification:	ISO
Model Number:	Welding Insulation Pins

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Packaging Details:	1. 1000 pcs / 2000 pcs/ 3000 pcs per carton 2. 48 cartons per pallet 3. or according to your requirement.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union,paypal
Supply Ability:	5000000pcs per 30 days

Contact Now

Air Duct Fiberglass Insulation Cup Head Pins 12Gauge HVAC Duct Insulation Fasteners

Description

Product Name:	Air Duct Fiberglass Insulation Cup Head Pins	Material:	Galvanized Steel
Brand:	HUIHAO CUSTOM	Head Dia:	30mm
Usage:	HVAC Duct Insulation Fasteners	Pin Diameter:	2.7mm, 3.0mm, 3.4mm
Samples:	Supported	Pin Length:	As Your Requirement
Highlight:	cup head welding insulation pins , welding insulation pins 12 gauge

Air Duct Fiberglass Insulation Cup Head Pins 12Gauge HVAC Duct Insulation Fasteners

Product Specifications

Attribute	Value
Product name	Air Duct Fiberglass Insulation Cup Head Pins
Material	Galvanized Steel
Brand	HUIHAO CUSTOM
Head Dia	30mm
Usage	HVAC Duct Insulation Fasteners
Pin Diameter	2.7mm, 3.0mm, 3.4mm
Samples	supported
Pin Length	as your requirement

Product Description

Cup Head Pins are widely used to attach insulation to ducts, ovens, boilers and hot/cold equipment for commercial insulation, industrial insulation or marine insulation usage.

Cup Head Pins are made up of a weld pin and a retaining washer. While some variations of material are available, the most popular is a galvanized steel or copper coated steel weld nail with a galvanized steel retaining washer.

Cup Head Pins are usually applied with a capacitor discharge stud welder. The method of application is to place the insulation onto a metal surface, push the cup head pins through the insulation, and weld affix (mount) the entire fabrication in one step.

Cup Head Pins are widely accepted as labor saving fasteners in the thermal and acoustical insulation markets primarily for commercial type insulation applications.

Item: 12Gauge Cup Head Pins
Head Material: Galvanized steel
Head Edge: Beveled edge washer to prevent cutting of insulation material
Head Diameter: 30mm
Pin Material: Galvanized steel or copper coated steel
Pin Diameter: 12Gauge / 2.7mm (Other diameters available: 11Gauge / 3.0mm, 10Gauge / 3.4mm etc.)
Pin Length: Customizable to your requirements

For pricing or samples, please contact: cherry@huihaomesh.com

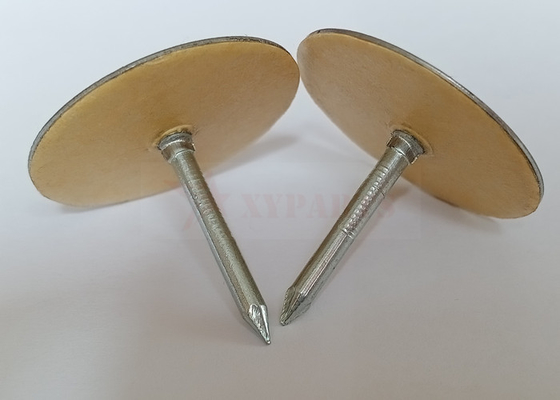

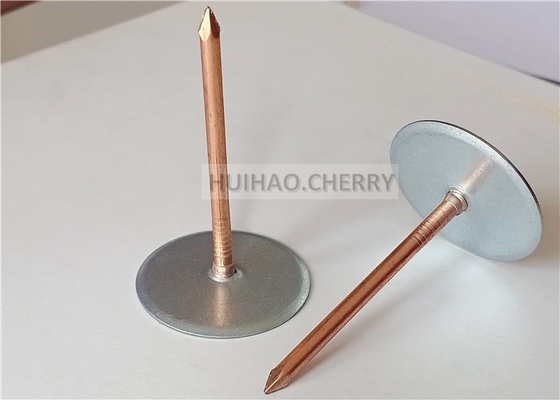

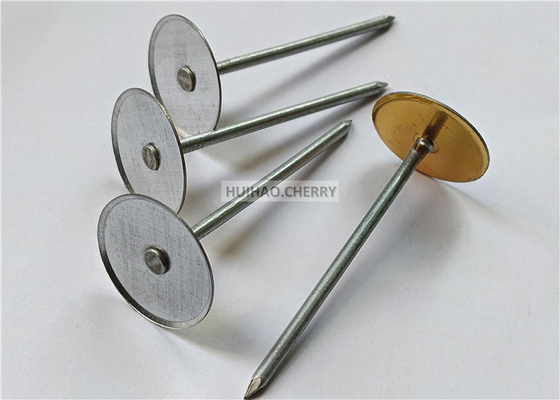

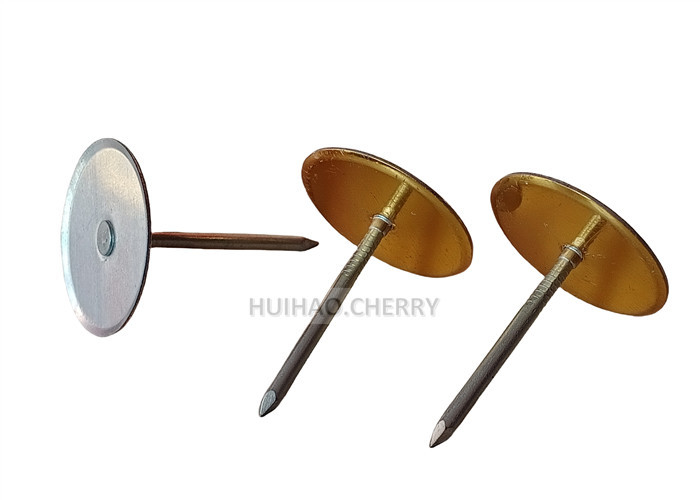

Product Images

Application Guide

Application Steps:

Hang the insulation
Directly weld the cup head pins through the insulation materials with a capacitor discharge welding machine

Recommended for	Pin length before welding
1/2" insulation (all densities)	12.67mm
1" insulation (1-1/2"ib density)	17.63mm
1" foam	25.55mm
1" insulation (3ib densities)	23.72mm
1-1/2" insulation (all densities)	28.42mm
2" insulation (1-1/2"-2" ib density)	37.95mm
2" insulation (3ib densities)	48.77mm
3" insulation (all densities)	69.85mm
4" insulation (all densities)	95.00mm

Packaging Options

1000 pcs / 2000 pcs / 3000 pcs per carton
48 cartons per pallet
Custom packaging available upon request

Quality Assurance

1. Are you a manufacturer or a trader?

We are a manufacturer, located in Hebei province, China.

2. Do you support product customization?

Yes, the material, the surface finish, the wire diameter, the length all could be customized.

3. Can I get samples?

Yes, samples for quality confirmation are supported in our company.

4. How do you control and ensure product quality?

Confirm with you every detail before quoting
Before production, we will reconfirm all the details again
During production, we strictly implement "IATF 16949 Quality Management System" standard
We will send you videos and pictures during the production and shipment process

5. What are your advantages?

Cooperate with us, we can ensure:

Competitive price: we sell what we manufacture
On-time delivery: we have the auto-production line to ensure the on-time delivery
Excellent quality: we have rich experience, our products are in line with international standard
Good after-sale service: we offer good after-sale service for each order
