4" Cup Head Weld Pins Galvanized Steel Used For HVAC Duct Insulation Companies

4" Cup Head Weld Pins Galvanized Steel Used For HVAC Duct Insulation Companies
4" Cup Head Weld Pins Galvanized Steel Used For HVAC Duct Insulation Companies
4" Cup Head Weld Pins Galvanized Steel Used For HVAC Duct Insulation Companies 4" Cup Head Weld Pins Galvanized Steel Used For HVAC Duct Insulation Companies 4" Cup Head Weld Pins Galvanized Steel Used For HVAC Duct Insulation Companies 4" Cup Head Weld Pins Galvanized Steel Used For HVAC Duct Insulation Companies 4" Cup Head Weld Pins Galvanized Steel Used For HVAC Duct Insulation Companies

Large Image :  4" Cup Head Weld Pins Galvanized Steel Used For HVAC Duct Insulation Companies

Product Details:
Place of Origin: China
Brand Name: HUIHAO CUSTOM
Certification: ISO
Model Number: Cup Head Weld Pins With Paper Washer
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: 1. 1000 pcs / 2000 pcs/ 3000 pcs per carton 2. 36 cartons per pallet 3. or according to your requirement.
Delivery Time: 5-8 work days
Payment Terms: L/C,T/T,Western Union,paypal
Supply Ability: 1,000,000pcs per 30 days
Contact Now

4" Cup Head Weld Pins Galvanized Steel Used For HVAC Duct Insulation Companies

Description
Product Name: Cup Head Weld Pins For HVAC Duct Insulation Companies Brand: HUIHAO CUSTOM
Material: Carbon Steel Base Size: 30mm
Surface: Galvanized Nail Diameter: 2.7mm, 3.0mm, 3.4mm Etc.
Special Size: Customizable Nail Length: 25-300mm
Usage: Fasten Thermal Insulation Samples: Supported
Highlight:

Cup Head Weld Pins

,

Cup Head Weld Pins With Paper Washer

,

Cup Head Insulation Weld Pins

4" Cup Head Weld Pins Galvanized Steel Used For HVAC Duct Insulation Companies
Attribute Value
Product name Cup Head Weld Pins For HVAC Duct Insulation Companies
Brand HUIHAO CUSTOM
Material Carbon Steel
Base Size 30mm
Surface Galvanized
Nail Diameter 2.7mm, 3.0mm, 3.4mm etc.
Special Size Customizable
Nail Length 25-300mm
Usage Fasten thermal insulation
Samples Supported
Quick Details

Cup head weld pins are more and more popular as the HAVC duct insulation fasteners, because compare to other HVAC insulation pins, cup head weld pins are labor-saving fasteners. Applied with a capacitor discharge stud welder, using cup head weld pins to fasten insulation materials on metal HVAC ducts, only need two steps, one is putting the insulation inplace, second is welding the cup head weld pins through the insulation.

If you are in need of cup head weld pins for duct insulation work, please feel free to ask me a price or sample, our cup head weld pins are with good quality, any my email address is cherry@huihaomesh.com
  • Item: 4" Cup Head Weld Pins Galvanized Steel Used To Install Metal HVAC Duct
  • Material: Galvanized Steel
  • Base Size: 30mm
  • Nail Diameter: 10gauge / 3.4mm
  • Nail Length: 4" / 105mm (customizable)

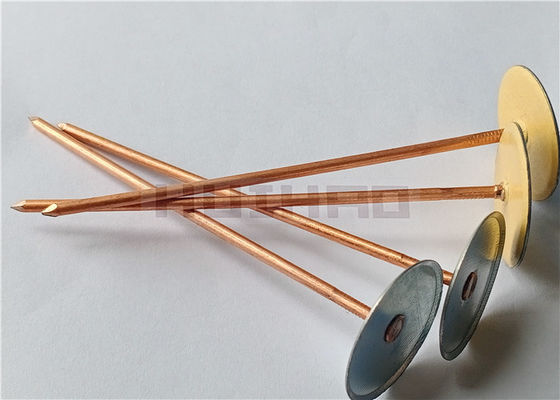

4" Cup Head Weld Pins Galvanized Steel Used For HVAC Duct Insulation Companies 0
Description Of Cup Head Weld Pins Applied With A Capacitor Discharge Stud Welder
Item Details
Brand Huihao Custom
Material Carbon Steel
Plating Zinc coating is standard for nails | Zinc coating is standard for the head
Copper coating is standard for nails
Bevel Head edge is beveled to prevent cutting of insulation material
Head with paper Available, for welding through aluminum foil faced insulation materials
Nail with tubes Available, for welding through tin foil faced insulation materials
Head Size 1-1/2" (38mm), 1-3/16" (30mm), 1" (25mm) are standard
Head Thickness 0.5mm is standard
Nail Diameter 0.135" (3.4mm), 0.106"(2.7mm), 0.08"(2.0mm) are common
Nail Length as your request

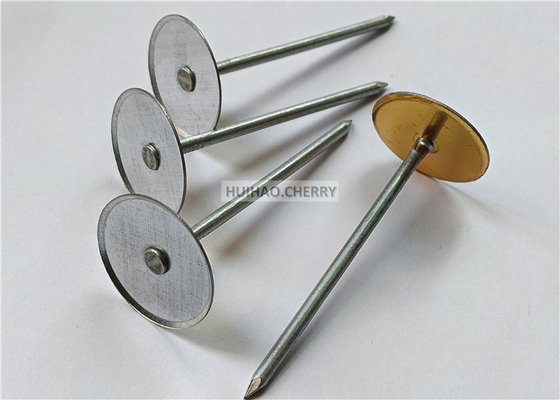

4" Cup Head Weld Pins Galvanized Steel Used For HVAC Duct Insulation Companies 1
Application Of The Cup Head Weld Pins

Cup Head Weld Pins are widely accepted as labor-saving fasteners in the thermal and acoustic insulation markets for use in industrial and commercial applications.

The most popular style of Cup Head Weld Pins is produced out of a mild steel weld nail with a galvanized-coated mild steel retaining washer.

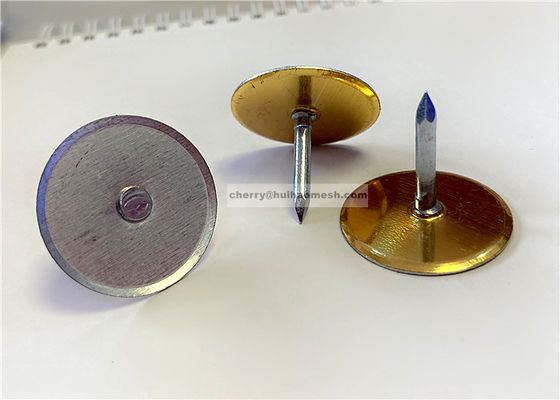

4" Cup Head Weld Pins Galvanized Steel Used For HVAC Duct Insulation Companies 2

Item: Cup Head Weld Pins

Step:

  1. Hang the insulation
  2. Press cup head weld pins through the insulation
  3. Weld in place
Recommended for Pin length before welding
1/2" insulation(all densities) 12.67mm
1" insulation(1-1/2"ib density) 17.63mm
1" foam 25.55mm
1" insulation(3ib densities) 23.72mm
1-1/2" insulation(all densities) 28.42mm
2" insulation(1-1/2"-2" ib density) 37.95mm
2" insulation(3ib densities) 48.77mm
3" insulation(all densities) 69.85mm
4" insulation(all densities) 95.00mm
Package Of The Cup Head Weld Pins
  1. 1000 pcs / 2000 pcs/ 3000 pcs per carton
  2. 48 cartons per pallet
  3. or according to your requirement.

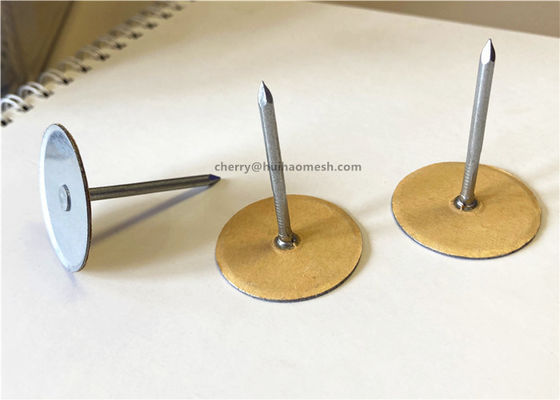

4" Cup Head Weld Pins Galvanized Steel Used For HVAC Duct Insulation Companies 3
FAQ Of Huihao Hardware Mesh Product Limited:
1. Are you a manufacture or a trader?

We are a manufacture, located in Hebei province, China.

2. Do you support product customization?

Yes, the material, the surface finish, the wire diameter, the length all could be customized.

3. Can i get samples?

Yes, we can send you samples.

4. Can you accept small orders?

Yes, for common size, we could accept small orders.

5. How do you control and ensure product quality?
  1. Confirm with you every details before quoting.
  2. Before production, we will reconfirm all the details again.
  3. During production, we strictly implement "IATF 16949 Quality Management System" standard.
  4. We will send you videos and pictures during the production and shipment process.
6. Advantage Of Huihao Hardware.

Cooperate with us, we can ensure:

  1. Competitive price: we sale what we manufacture.
  2. On-time delivery: we have the auto-production line to ensure the on-time delivery.
  3. Excellent quality: we have rich experience, our products are in line with international standard.
  4. Good after-sale service: we offer good after-sale service for each order.
