3x65mm Insulation Fastener CD Weld Stud Pins With Copper Coated

Large Image : 3x65mm Insulation Fastener CD Weld Stud Pins With Copper Coated

Product Details:

Place of Origin:	CHINA
Brand Name:	huihao
Certification:	ISO 9001
Model Number:	CD weld stud pins

Payment & Shipping Terms:

Minimum Order Quantity:	5000pcs
Packaging Details:	500pcs/1000 per bag in carton ,then on pallet
Delivery Time:	10 days after confirm the order
Payment Terms:	L/C,T/T
Supply Ability:	50,000pcs per week

Contact Now

3x65mm Insulation Fastener CD Weld Stud Pins With Copper Coated

Description

Product Name:	CD Weld Stud Pins	Material:	Mild Steel ,stainless Steel ,aluminum
Surface Treatment:	Copper Coated ,galvanized Steel,	Pin Diameter:	1-5mm To Be Request
Pin Length:	10mm-450mm	Attachment:	Self Locking Washer ,speed Clips ,dome Cap Washer
Sample:	Freely	Factory:	Yes
Highlight:	CD Weld Stud Pins , Copper Coated Stud Pins , 3x65mm Stud Pins

3x65mm Insulation Fastener CD Weld Stud Pins With Copper Coated

Product Attributes

Attribute	Value
Product name	CD weld stud pins
Material	mild steel, stainless steel, aluminum
Surface treatment	copper coated, galvanized steel
Pin diameter	1-5mm to be request
Pin length	10mm-450mm
Attachment	self locking washer, speed clips, dome cap washer
Sample	freely
Factory	Yes

Product Description

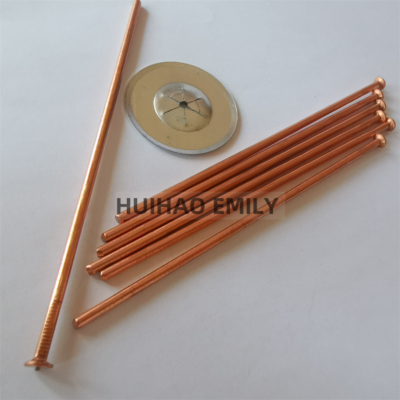

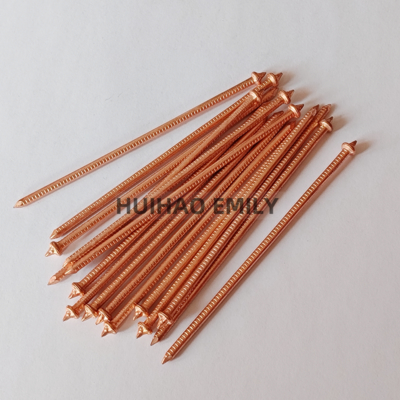

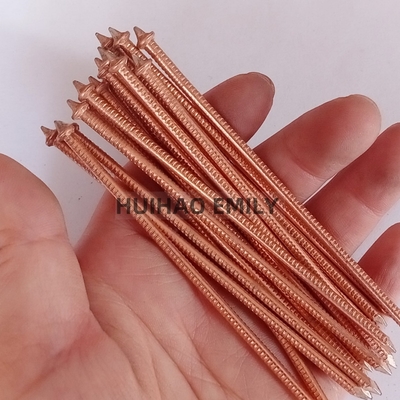

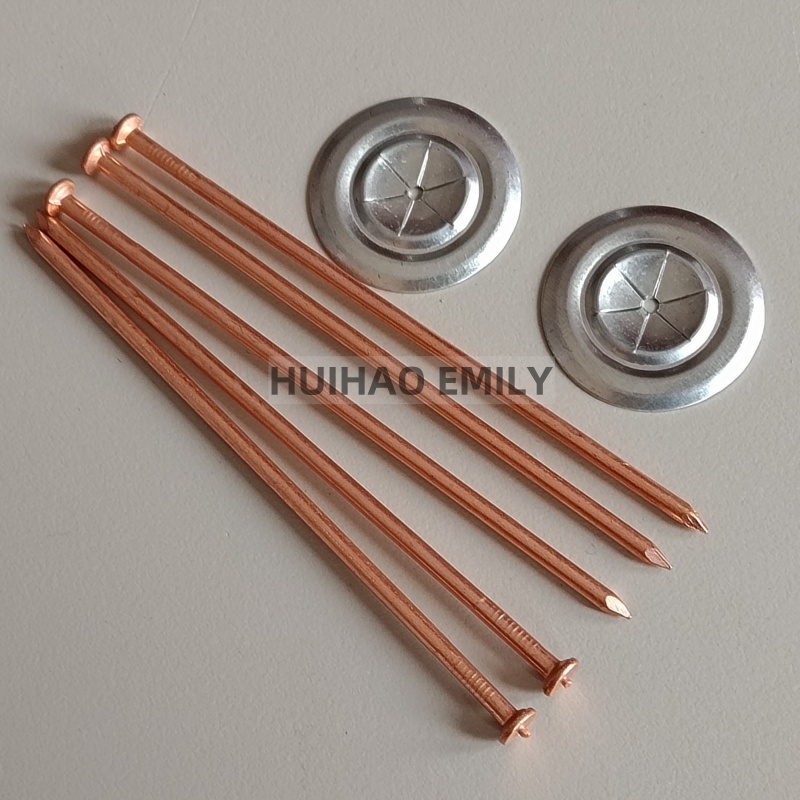

CD (Capacitor Discharge) weld stud pins are welding nails used for thermal insulation of boilers in power plants, designed to fix thermal insulation material. The nail is welded to the boiler surface using a capacitive discharge welder, with insulation material installed on the welded nail and secured with self-locking washers.

Product Details

Product name: 3x65mm insulation fastener CD weld stud pins
Material: Mild steel with copper coated, galvanized steel, stainless steel, aluminum (upon request)
Base type: Star-shaped base for increased contact area and stronger weld
Pin diameter: 3mm standard (1-5mm available)
Pin length: 65mm standard (10mm-500mm available)
Fixing parts: Self-locking washer, speed clips, metal washer with dome cap, metal dome cap

Product name: 3x65mm insulation fastener CD weld stud pins
Material: Mild steel with copper coated, galvanized steel, stainless steel, aluminum (upon request)
Base type: Traditional base
Pin diameter: 3mm standard (1-5mm available)
Pin length: 65mm standard (10mm-500mm available)
Fixing parts: Self-locking washer, speed clips, metal washer with dome cap, metal dome cap

Product Specifications

10 Ga. (0.135") Capacitor Discharge (CD) Weld Stud Pins

Material	Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum available in special order
Diameter	10 Ga. (0.135")
Length	1", 1-1/2", 2", 2-1/2", 3", 3-1/2", 4", 4-1/2", 5", 5-1/2", 6", 7", 8", 9"

12 Ga. (0.105") Capacitor Discharge (CD) Weld Stud Pins

Material	Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum available in special order
Diameter	12 Ga. (0.105")
Length	3/4", 1", 1-1/2", 2", 2-1/2", 3", 3-1/2", 4", 4-1/2", 5", 5-1/2", 6", 7", 8"

14 Ga, 2mm (0.080") Capacitor Discharge (CD) Weld Stud Pins

Material	Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum available in special order
Diameter	14 Ga, 2mm (0.080")
Length	3/4", 1", 1-1/2", 2", 2-1/2", 3"

3mm Capacitor Discharge (CD) Weld Stud Pins

Material	Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum available in special order
Diameter	3mm
Length	25mm, 30mm, 35mm, 40mm, 45mm, 50mm, 55mm, 60mm, 65mm, 70mm, 75mm, 100mm, 125mm, 150mm

4mm Capacitor Discharge (CD) Weld Stud Pins

Material	Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum available in special order
Diameter	4mm
Length	30mm, 35mm, 40mm, 45mm, 50mm, 55mm, 60mm, 65mm, 70mm, 75mm, 100mm, 125mm, 150mm, 240mm, 270mm, 370mm etc.

Other Types of Insulation Fastener CD Weld Stud Pins

Packaging Information

Standard Package: 500 pcs per bag, 10 bags per carton, 64 cartons per pallet
Custom Packaging: Available upon request

Delivery Options

Samples: DHL/EMS/UPS/TNT/EXPRESS
Large Orders: Recommended by SEA, or by AIR for urgent requirements

HUIHAO Company Product Line

CD weld pins
Lacing Anchors
Bimetallic pin
Cup head weld pins
Quilting pins
Perforated base pins
Self adhesive pins
Aluminum solar panel mesh clip
All kinds of self locking washers, Dome caps
