38mm Copper Coated Cup Head Stud Weld Pins For Insulation Ductwork

Large Image : 38mm Copper Coated Cup Head Stud Weld Pins For Insulation Ductwork

Product Details:

Place of Origin:	CHINA
Brand Name:	huihao
Certification:	ISO9001
Model Number:	Cup Head Stud Weld Pins

Payment & Shipping Terms:

Packaging Details:	carton+wooden pallet
Delivery Time:	15 days after confirm the order

Contact Now

38mm Copper Coated Cup Head Stud Weld Pins For Insulation Ductwork

Description

Product Name:	Cup Head Stud Weld Pins	Material:	Carbon Steel Is In Common ,stainless Steel To Be Request
Base Size:	30mm,25mm	Base Type:	With Paper Or Without Paper
Pin Diameter:	2.mm,3mm,3.4mm	Pin Material:	Galvanized Steel Or Copper Coated
Pin Length:	25mm,38mm,50mm,75mm,115mm Is In Common	Other Pin Lenght:	120mm-210mm To Be Request
Highlight:	Cupped Head Weld Pin , Insulation Ductwork Weld Pin , 38mm Weld Pin

38mm Copper Coated Cup Head Stud Weld Pins For Insulation Ductwork

Product Specifications

Attribute	Value
Product name	Cup Head Stud Weld Pins
Material	Carbon steel (standard), stainless steel (available upon request)
Base size	30mm, 25mm
Base type	With paper or without paper
Pin diameter	2mm, 3mm, 3.4mm
Pin material	Galvanized steel or copper coated
Pin length	25mm, 38mm, 50mm, 75mm, 115mm (standard), 120mm-210mm (available upon request)

Product Overview

Cupped Head Weld Pins provide a permanent solution for installing duct liner and other insulation materials to HVAC sheet metal configurations. These fabricated components combine a weld pin with a staked-on retaining washer, available in various material options.

Detailed Specifications

Base Size	Base Material	Pin Diameter	Pin Length	Pin Material	Finished
20MM	Mild steel, stainless steel, copper	2.7MM, 3MM, 3.4MM	10MM, 25MM, 38MM	Mild steel, stainless steel, copper	Zinc/copper plating
25mm	Mild steel, stainless steel, copper	3mm	10mm-65mm	Mild steel, stainless steel, copper	Zinc/copper plating
30mm	Mild steel, stainless steel, copper	3.4mm	10mm-65mm	Mild steel, stainless steel, copper	Zinc/copper plating
Custom	Custom	Custom	Custom

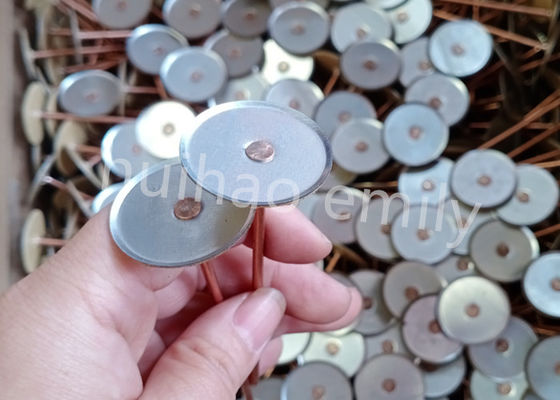

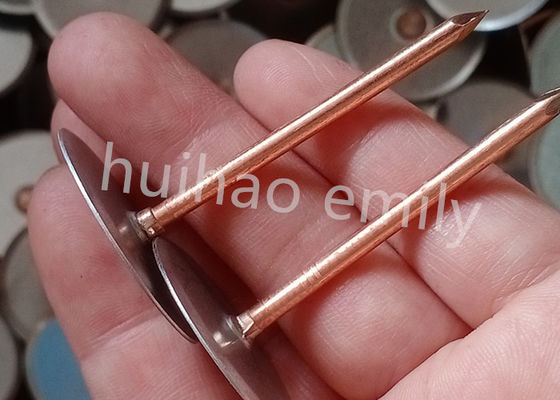

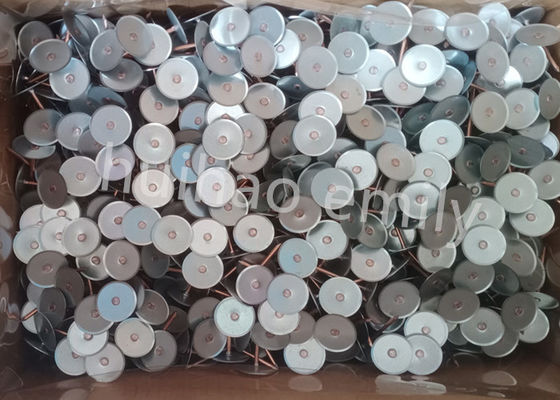

Product Images

Installation Guide

Recommended assembly method:

Work surfaces should be clean and dry, free of dust, grease, oil and any other loose matter
Remove the protective release paper taking care not to touch the adhesive
Place the hanger in the required position and press the base against the surface to be insulated
Insulation can be impaled immediately and firmly locked with fastening clips
Maximum strength of adherence is achieved after 24 hours

Packaging & Shipping

Standard packaging options:

800/1000/1500/2000/3000/5000 pieces in carton on pallet
800/1000/15000/2000 pieces in a drum on the pallet

Shipping methods:

Sea freight for large orders
Express shipping (DHL, FedEx, UPS) for small or urgent orders
Door-to-door service available by sea or air
