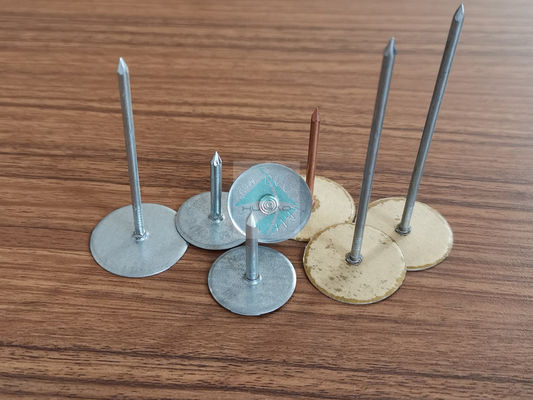

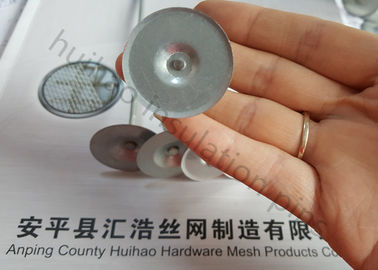

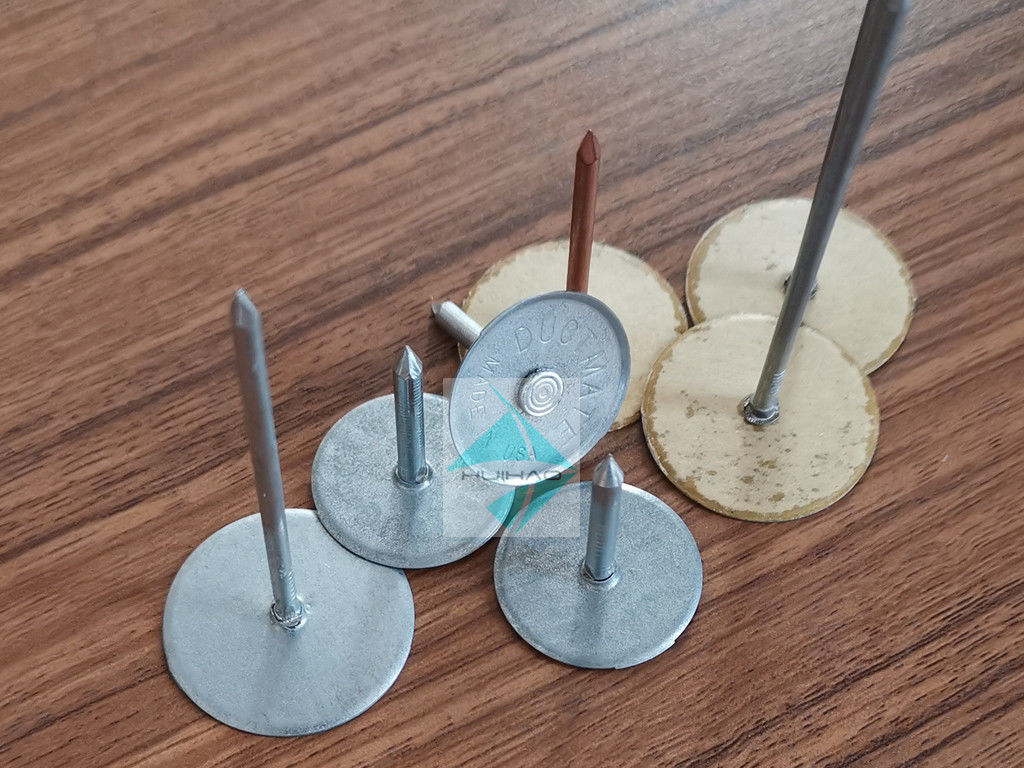

12Gauge 38mm Ductwork Metal Cupped Head Weld Pins For HVAC System

Introduction To The Metal Head Pins, Rock Wool Insulation Nails

The standard material for cupped head pins is low carbon steel. For special orders, the material is 18-8 stainless steel (also called Quilting pins).

For US and Canada markets:

• Standard washer diameter: 1.187" (30mm)
• Pin diameter: 12GA (2.7mm)
• Washer available with or without kraft paper
• Length options: 3/8" to 4-7/8"

For EU countries:

• Washer diameter: 30mm or 38mm
• Pin diameter: 12GA (2.7mm) and 14GA (2.0mm)
• Washer available with or without kraft paper

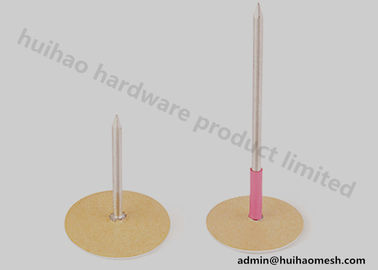

• Pin available with or without plastic sleeve
• Length options: 9.5mm to 140mm
• Special lengths available upon request

1. Position insulation
2. Press cup head pin through insulation
3. Weld in place to complete installation

1. Cupped head insulation pins are fasteners used to secure insulation materials to sheet metal of air ducts and HVAC systems
2. Consists of a weld pin with a staked on retaining washer, typically applied with a capacitor discharge stud welder
3. Application involves placing insulation on metal surface, pushing the pin through, and welding the entire assembly in one step
4. Widely accepted as labor-saving fasteners in thermal and acoustical insulation markets for industrial and commercial applications
