2-1/2" Stick Pins For Rigid Insulation For Attaching Thermal And Acoustic Insulation In HVAC ducting System

2-1/2" Stick Pins For Rigid Insulation For Attaching Thermal And Acoustic Insulation In HVAC ducting System
2-1/2" Stick Pins For Rigid Insulation For Attaching Thermal And Acoustic Insulation In HVAC ducting System 2-1/2" Stick Pins For Rigid Insulation For Attaching Thermal And Acoustic Insulation In HVAC ducting System 2-1/2" Stick Pins For Rigid Insulation For Attaching Thermal And Acoustic Insulation In HVAC ducting System 2-1/2" Stick Pins For Rigid Insulation For Attaching Thermal And Acoustic Insulation In HVAC ducting System

Large Image :  2-1/2" Stick Pins For Rigid Insulation For Attaching Thermal And Acoustic Insulation In HVAC ducting System

Product Details:
Place of Origin: China
Brand Name: HUIHAO
Certification: ISO9001:2008
Model Number: Stick Pins For Rigid Insulation
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: 500 pcs per carton ,48 cartons on one pallet
Delivery Time: 12 days after the first payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100,000 pcs per week

2-1/2" Stick Pins For Rigid Insulation For Attaching Thermal And Acoustic Insulation In HVAC ducting System

Description
Product Name: Stick Pins For Rigid Insulation Material: Galvanized Steel , Stainless Steel , Aluminium
Pin Dia: 2.7mm As Standard Pin Length: 19mm - 400mm ,could Be Customized
Base Size: 50mmx50mm As Standard Accessories: Various Of Self Locking Washers Are Available
Customization: Available Samples: Available

2-1/2" Stick Pins For Rigid Insulation For Attaching Thermal And Acoustic Insulation In HVAC Ducting System



Product Description Of Stick Pins For Rigid Insulation:

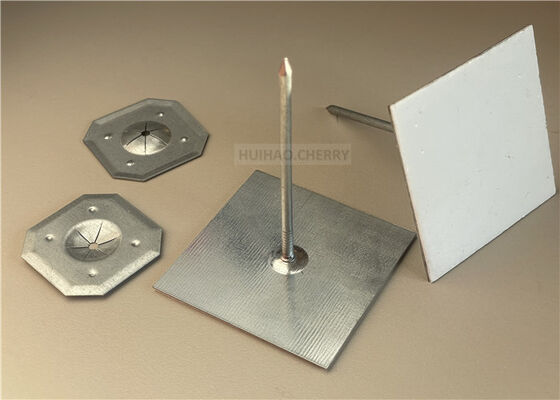

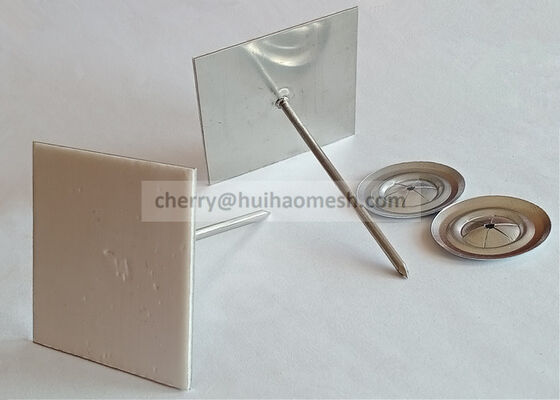

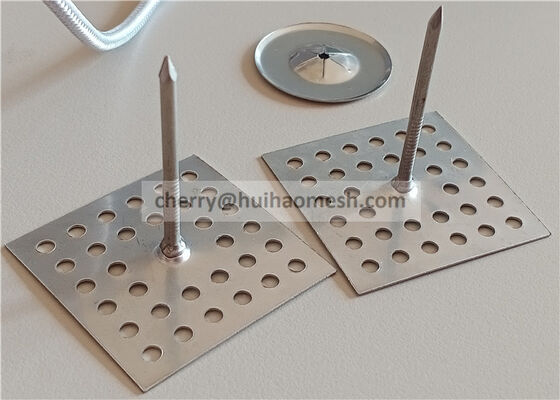

Stick Pins For Rigid Insulation provide a rapid and firm fixing of various of insulation materials, including glass fibre, mineral wool, PU foam, PIR, phenolic foam, and cork. Just simply peel off the adhesive backing, press the pin firmly onto a clean metal surface, and secure the insulation with a locking washer. For best adhesion, clean surfaces with genuine panel wipes before application.



Stick Pins For Rigid Insulation provide strong adhesion on smooth surfaces (not suitable for brittle materials such as calcium silicate), it's ideal for attaching thermal and acoustic insulation to most metal surfaces, particularly in HVAC ducting, mechanical systems, and high-performance building envelopes.



Each insulation stick pin comes with a self locking washer to ensure secure fastening and long-lasting performance even in high-vibration or temperature-changing environments.



 HUIHAO Stick Pins For Rigid Insulation



Pin diameter  Base size  Pin length  Clips Size
12 Ga (2.7mm or 0.106'') 50mmx50mm 1'' 30mm, 32mm, 38mm, 50mm, 65mm etc.
12 Ga (2.7mm or 0.106'') 50mmx50mm 2'' 30mm, 32mm, 38mm, 50mm, 65mm etc.
12 Ga (2.7mm or 0.106'') 50mmx50mm 2 1 / 2'' 30mm, 32mm, 38mm, 50mm, 65mm etc.
12 Ga (2.7mm or 0.106'') 50mmx50mm 3 1 / 2'' 30mm, 32mm, 38mm, 50mm, 65mm etc.
12 Ga (2.7mm or 0.106'') 50mmx50mm 4'' 30mm, 32mm, 38mm, 50mm, 65mm etc.

12 Ga (2.7mm or 0.106'')

50mmx50mm 5 1 / 2'' 30mm, 32mm, 38mm, 50mm, 65mm etc.
12 Ga (2.7mm or 0.106'') 50mmx50mm 8'' 30mm, 32mm, 38mm, 50mm, 65mm etc.



For Insulation Stick Pins And Washers, the base size, the pin dia, the pin length, the self locking washer size, all is customizable.





2-1/2" Stick Pins For Rigid Insulation For Attaching Thermal And Acoustic Insulation In HVAC ducting System 0

2-1/2" Stick Pins For Rigid Insulation For Attaching Thermal And Acoustic Insulation In HVAC ducting System 1



Features Of Stick Pins For Rigid Insulation:



  • Insulation stick pins and washers provide a fast mechanical fixing.
  • Raw materials are anti-corrosion.
  • Self locking washres are high hardness, could firmly and quickly fasten the nails of insulation stick pins.
  • The nails of insulation stick pins are easy to be bent.
  • The foam adhesive backed on the steel base is very sticky.



Application Of Stick Pins For Rigid Insulation:



* Wipe Surface Clean: Insulation stick pins should be applied to a clean, dry non-porous surface

* Simply peel off the backing tape.
* Stick the pin to the surface where the insulation will be placed.
* Put the insulation in place, and push the insulation onto the pin.
* Push the self locking washer over the pin.
* Important note: add the cap or bend the pin over on itself to avoid it impaling someone.
* Your insulation is now hanging without the fear of falling.

2-1/2" Stick Pins For Rigid Insulation For Attaching Thermal And Acoustic Insulation In HVAC ducting System 2

2-1/2" Stick Pins For Rigid Insulation For Attaching Thermal And Acoustic Insulation In HVAC ducting System 3





Packaging Of Stick Pins For Rigid Insulation For Attaching Thermal And Acoustic Insulation In HVAC Ducting System



The default packaging way is bulk packing or small boxes packing in cartons then on pallets.

We can assist you in determining the most effective packaging style, material, and size for your unique products or as your requirement.



2-1/2" Stick Pins For Rigid Insulation For Attaching Thermal And Acoustic Insulation In HVAC ducting System 42-1/2" Stick Pins For Rigid Insulation For Attaching Thermal And Acoustic Insulation In HVAC ducting System 5



HUIHAO HARDWARE MESH PRODUCT LIMITED



Huihao Hardware Mesh Product Limited is a professional manufacture for insulation pins and washers, our main products include: perforated insulation pins & self adhesive insulation pins for wall and ceiling insulation, lacing anchors & quilting pins & lacing whashers for the fabrication of removable insulation blanket, cd weld pins for marine insulaiton, cup head weld pins for ducting insulation, and kinds of metal fixing washers for the fixing of tile backer board, roofing insulaitn, wire lath, and plaster etc.



Our insulation pins and washers are with good quality and price, we choose high standard raw material, have fully automatic production line, and strict quality control system, and for the insulation pins and washers, the material, the size, the package all is customizable according to your special need.



2-1/2" Stick Pins For Rigid Insulation For Attaching Thermal And Acoustic Insulation In HVAC ducting System 62-1/2" Stick Pins For Rigid Insulation For Attaching Thermal And Acoustic Insulation In HVAC ducting System 7

2-1/2" Stick Pins For Rigid Insulation For Attaching Thermal And Acoustic Insulation In HVAC ducting System 8



Frequently Asked Questions


1. Are you a manufacturer or a trader?
We are a manufacturer located in Hebei province, China.

2. Do you support product customization?
Yes, we can customize material, surface finish, wire diameter, and length according to your requirements.

3. Can I get samples?
Yes, we provide samples for quality confirmation.

4. Can you accept small orders?
Yes, we accept small orders for common sizes.

5. How do you ensure product quality?

  • Confirm all details before quoting
  • Reconfirm specifications before production
  • Implement IATF 16949 Quality Management System standards
  • Provide production and shipment updates with videos and photos
