Product Details:
|
| Product Name: | Insulation Stick Pins And Washers | Material: | Galvanized Steel , Stainless Steel , Aluminium |
|---|---|---|---|
| Pin Dia: | 2.7mm As Standard | Pin Length: | 19mm - 400mm ,could Be Customized |
| Base Size: | 50mmx50mm As Standard | Accessories: | Various Of Self Locking Washers Are Available |
| Customization: | Available | Samples: | Available |

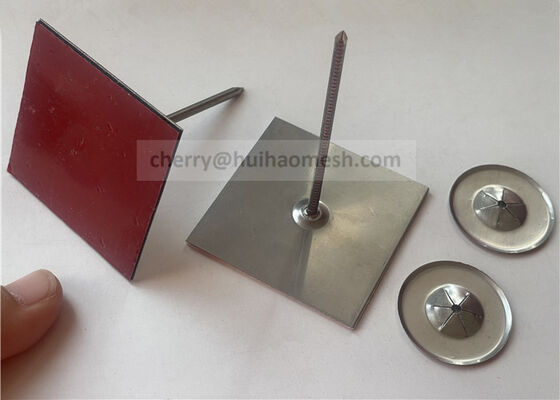

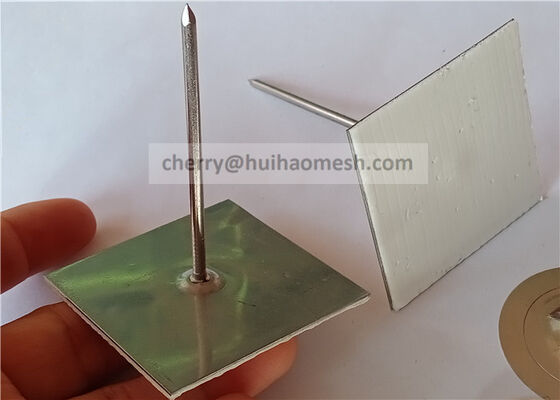

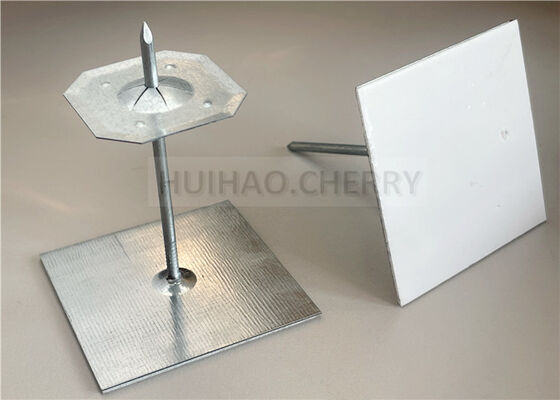

Insulation Stick Pins And Washers Made from galvanized steel, stainless steel, or aluminium, are widely used for securing various thicknesses of rigid insulation board to walls, ceilings, and floors of metal buildings.
Insulation stick pins have a steel base which is backed with a ready to use "peel & stick" foam adhesive for quick and easy install onto sheet metal. The base is attached with a sharp pin which pierces the insulation. A self locking washers is then placed onto the pin to securely hold the insulation in place. The excess pin length can then be trimmed.
Huihao Hardware Mesh Product Limited is a professional manufacture for insulation pins and washers, our main products include: perforated insulation pins & self adhesive insulation pins for wall and ceiling insulation, lacing anchors & quilting pins & lacing whashers for the fabrication of removable insulation blanket, cd weld pins for marine insulaiton, cup head weld pins for ducting insulation, and kinds of metal fixing washers for the fixing of tile backer board, roofing insulaitn, wire lath, and plaster etc.
Our insulation pins and washers are with good quality and price, we choose high standard raw material, have fully automatic production line, and strict quality control system, and for the insulation pins and washers, the material, the size, the package all is customizable according to your special need.
| Pin diameter | Base size | Pin length | Clips Size |
| 12 Ga (2.7mm or 0.106'') | 50mmx50mm | 1'' | 30mm, 32mm, 38mm, 50mm, 65mm etc. |
| 12 Ga (2.7mm or 0.106'') | 50mmx50mm | 2'' | 30mm, 32mm, 38mm, 50mm, 65mm etc. |
| 12 Ga (2.7mm or 0.106'') | 50mmx50mm | 2 1 / 2'' | 30mm, 32mm, 38mm, 50mm, 65mm etc. |
| 12 Ga (2.7mm or 0.106'') | 50mmx50mm | 3 1 / 2'' | 30mm, 32mm, 38mm, 50mm, 65mm etc. |
| 12 Ga (2.7mm or 0.106'') | 50mmx50mm | 4'' | 30mm, 32mm, 38mm, 50mm, 65mm etc. |
|
12 Ga (2.7mm or 0.106'') |
50mmx50mm | 5 1 / 2'' | 30mm, 32mm, 38mm, 50mm, 65mm etc. |
| 12 Ga (2.7mm or 0.106'') | 50mmx50mm | 8'' | 30mm, 32mm, 38mm, 50mm, 65mm etc. |
|
For Insulation Stick Pins And Washers, the base size, the pin dia, the pin length, the self locking washer size, all is customizable.
|
|||
![]()
![]()
* Wipe Surface Clean: Insulation stick pins should be applied to a clean, dry non-porous surface
* Simply peel off the backing tape.
* Stick the pin to the surface where the insulation will be placed.
* Put the insulation in place, and push the insulation onto the pin.
* Push the self locking washer over the pin.
* Important note: add the cap or bend the pin over on itself to avoid it impaling someone.
* Your insulation is now hanging without the fear of falling.
![]()
![]()
The default packaging way is bulk packing or small boxes packing in cartons then on pallets.
We can assist you in determining the most effective packaging style, material, and size for your unique products or as your requirement.
![]()
![]()
1. Are you a manufacturer or a trader?
We are a manufacturer located in Hebei province, China.
2. Do you support product customization?
Yes, we can customize material, surface finish, wire diameter, and length according to your requirements.
3. Can I get samples?
Yes, we provide samples for quality confirmation.
4. Can you accept small orders?
Yes, we accept small orders for common sizes.
5. How do you ensure product quality?
![]()
![]()
