Insulation Board And Mineral Wool Fixing Self Adhesive Aluminium Stick Pins 65mm With Clips

Insulation Board And Mineral Wool Fixing Self Adhesive Aluminium Stick Pins 65mm With Clips
Insulation Board And Mineral Wool Fixing Self Adhesive Aluminium Stick Pins 65mm With Clips
Insulation Board And Mineral Wool Fixing Self Adhesive Aluminium Stick Pins 65mm With Clips Insulation Board And Mineral Wool Fixing Self Adhesive Aluminium Stick Pins 65mm With Clips Insulation Board And Mineral Wool Fixing Self Adhesive Aluminium Stick Pins 65mm With Clips Insulation Board And Mineral Wool Fixing Self Adhesive Aluminium Stick Pins 65mm With Clips

Large Image :  Insulation Board And Mineral Wool Fixing Self Adhesive Aluminium Stick Pins 65mm With Clips

Product Details:
Place of Origin: China
Brand Name: HUIHAO
Certification: ISO9001:2008
Model Number: Self Adhesive Aluminium Stick Pins
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Packaging Details: 500 pcs per carton ,48 cartons on one pallet
Delivery Time: 12 days after the first payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100,000 pcs per week
Contact Now

Insulation Board And Mineral Wool Fixing Self Adhesive Aluminium Stick Pins 65mm With Clips

Description
Product Name: Self Adhesive Aluminium Stick Pins Material: Galvanized Steel , Stainless Steel , Aluminium
Pin Dia: 2.7mm As Standard Pin Length: 19mm - 400mm ,could Be Customized
Base Size: 50mmx50mm As Standard Accessories: Various Of Self Locking Washers Are Available
Customization: Available Samples: Available
Highlight:

self adhesive insulation pins with clips

,

aluminium stick pins for mineral wool

,

65mm insulation board fixing pins

Insulation Board And Mineral Wool Fixing Self Adhesive Aluminium Stick Pins 65mm With Clips

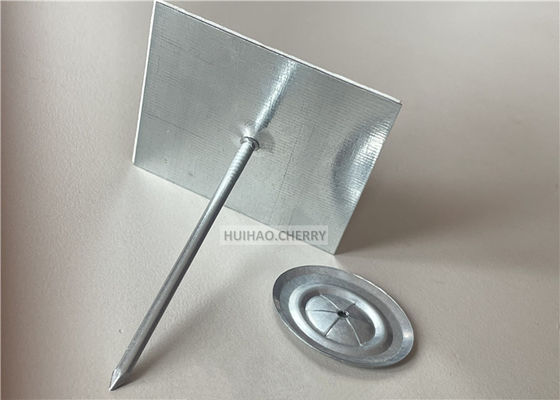

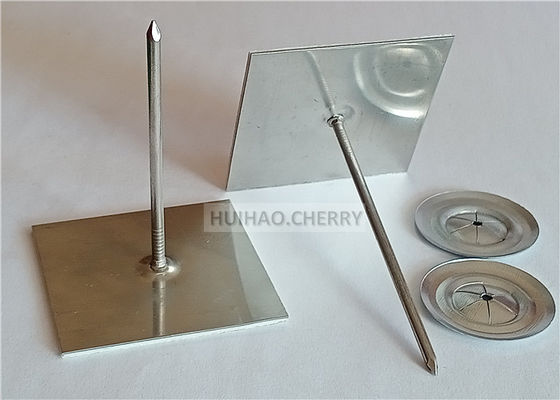

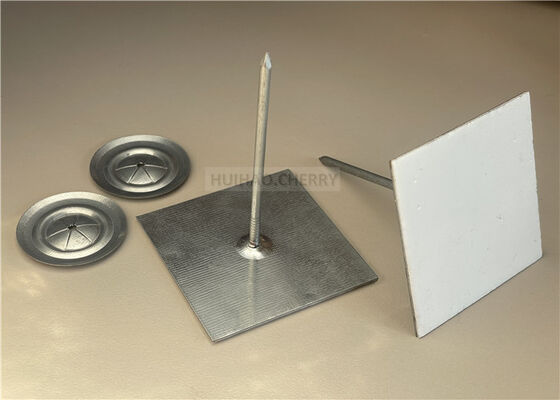

Product Description Of Self Adhesive Aluminium Stick Pins:



Insulation self stick pins could firmly and easily secure pre-formed insulation materials, such as glass fibre, mineral wool, polystyrene, rigid and flexible PU foam, PIR, phenolic foam, cork and similar materials. It's widely used for commercial insulation, industrial insulation and marine insulation.
Insulation self stick pins made from Huihao are with good quality and price. We choose high anti-corrosion galvanized steel or stainless steel or aluminum material and high sticky self-adhesive tape to make the insulation self stick pins, and we have fully automatic production line and strict quality control system to make sure the good quality and quick delivery, and my email is cherry@huihaomesh.com





 HUIHAO Self Adhesive Aluminium Stick Pins


Pin diameter  Base size  Pin length  Clips Size
12 Ga (2.7mm or 0.106'') 50mmx50mm 1'' 30mm, 32mm, 38mm, 50mm, 65mm etc.
12 Ga (2.7mm or 0.106'') 50mmx50mm 2'' 30mm, 32mm, 38mm, 50mm, 65mm etc.
12 Ga (2.7mm or 0.106'') 50mmx50mm 2 1 / 2'' 30mm, 32mm, 38mm, 50mm, 65mm etc.
12 Ga (2.7mm or 0.106'') 50mmx50mm 3 1 / 2'' 30mm, 32mm, 38mm, 50mm, 65mm etc.
12 Ga (2.7mm or 0.106'') 50mmx50mm 4'' 30mm, 32mm, 38mm, 50mm, 65mm etc.

12 Ga (2.7mm or 0.106'')

 50mmx50mm 5 1 / 2'' 30mm, 32mm, 38mm, 50mm, 65mm etc.
12 Ga (2.7mm or 0.106'') 50mmx50mm 8'' 30mm, 32mm, 38mm, 50mm, 65mm etc.



For Self Adhesive Aluminium Stick Pins, the base size, the pin dia, the pin length, the self locking washer size, all is customizable.





Insulation Board And Mineral Wool Fixing Self Adhesive Aluminium Stick Pins 65mm With Clips 0

Insulation Board And Mineral Wool Fixing Self Adhesive Aluminium Stick Pins 65mm With Clips 1



Features Of Self Adhesive Aluminium Stick Pins:



  • Stick pins are an easy and simple solution to help you fix insulation.
  • Provide a fast mechanical fixing.
  • Useful for ceilings, ensures that the insulation is in place before plasterboard is fixed.
  • Stops the insulation hanging down before the plasterboard is fixed.
  • Corrosion resistant.
  • Rapid insulation attachment.
  • Strong and easy to use.
  • Supplied with securing discs.

Application Of Self Adhesive Aluminium Stick Pins:



1. Simply peel off the backing tape.
2. Stick the pins to the surface where the insulation will be placed.
3. Remove the fixing disc.
4. Put the insulation in place, and push the insulation onto the pin.
5. Push the fixing disc over the pin.
6. IMPORTANT NOTE – ADD THE CAP OR BEND THE PIN OVER ON ITSELF TO AVOID IT IMPALING SOMEONE.
7. Your insulation is now hanging without the fear of falling out.
8. Super sticky, good luck getting them off if you stick them in the wrong place!
Insulation Board And Mineral Wool Fixing Self Adhesive Aluminium Stick Pins 65mm With Clips 2Insulation Board And Mineral Wool Fixing Self Adhesive Aluminium Stick Pins 65mm With Clips 3

Insulation Board And Mineral Wool Fixing Self Adhesive Aluminium Stick Pins 65mm With Clips 4

Insulation Board And Mineral Wool Fixing Self Adhesive Aluminium Stick Pins 65mm With Clips 5



Packaging Of Self Adhesive Aluminium Stick Pins:



The default packaging way is bulk packing or small boxes packing in cartons then on pallets.

We can assist you in determining the most effective packaging style, material, and size for your unique products or as your requirement.



Insulation Board And Mineral Wool Fixing Self Adhesive Aluminium Stick Pins 65mm With Clips 6Insulation Board And Mineral Wool Fixing Self Adhesive Aluminium Stick Pins 65mm With Clips 7



HUIHAO HARDWARE MESH PRODUCT LIMITED



1. Are you a manufacturer or a trader?
We are a manufacturer located in Hebei province, China.

2. Do you support product customization?
Yes, we can customize material, surface finish, wire diameter, and length according to your requirements.

3. Can I get samples?
Yes, we provide samples for quality confirmation.

4. Can you accept small orders?
Yes, we accept small orders for common sizes.

5. How do you ensure product quality?

  • Confirm all details before quoting
  • Reconfirm specifications before production
  • Implement IATF 16949 Quality Management System standards
  • Provide production and shipment updates with videos and photos

Insulation Board And Mineral Wool Fixing Self Adhesive Aluminium Stick Pins 65mm With Clips 8

Insulation Board And Mineral Wool Fixing Self Adhesive Aluminium Stick Pins 65mm With Clips 9
